Description

The 469-P5-HI-A20-E-H GE is a highly advanced, full-featured Motor Management Relay from GE’s Multilin 469 series, designed to provide comprehensive protection, control, and monitoring for medium-voltage and high-voltage motors. This sophisticated device acts as the intelligent guardian of critical rotating machinery, integrating a wide array of functions that were traditionally handled by multiple discrete devices. The core value of the 469-P5-HI-A20-E-H GE lies in its ability to prevent catastrophic motor failures, optimize maintenance schedules, and ensure operational continuity by offering unparalleled insight into motor health and performance. As part of the renowned Multilin family, it represents a cornerstone of modern industrial electrical systems.

This specific model is engineered to meet the demanding requirements of complex industrial applications. The “P5” designation often refers to a specific hardware or feature set, while suffixes like “HI-A20-E-H” indicate a combination of options such as a high-brightness display, specific communication modules (e.g., Ethernet), and specific power supply or input/output configurations. By deploying the 469-P5-HI-A20-E-H GE, engineers and plant managers can move from reactive to predictive maintenance, significantly reducing costs associated with unplanned downtime and motor repairs. Its role extends beyond simple protection; it is a key data source for plant asset management systems, providing critical information that drives operational intelligence and efficiency.

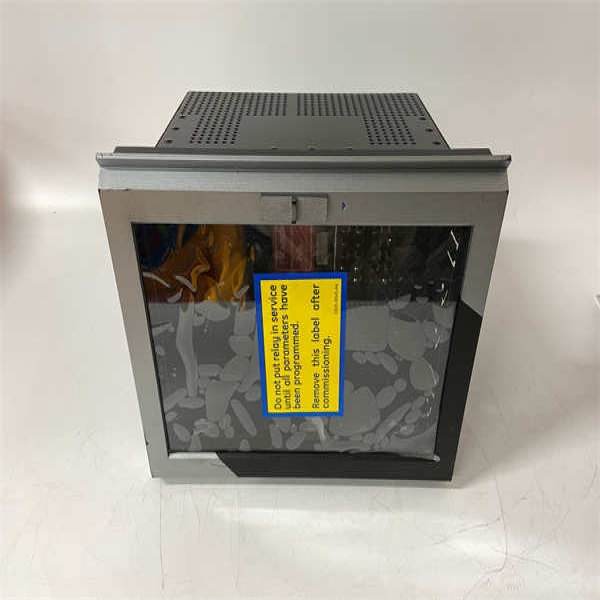

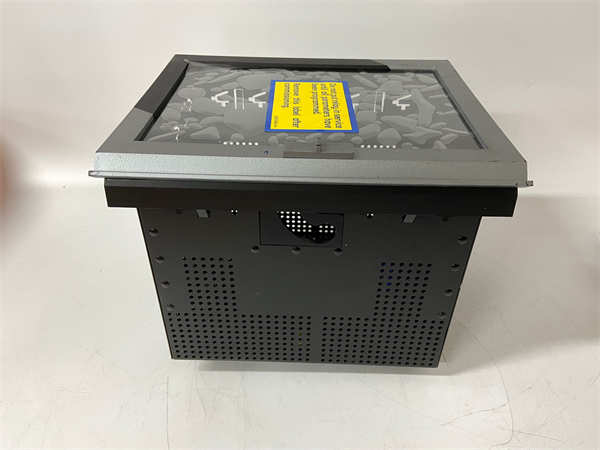

GE 469-P5-HI-A20-E-H

Technical Specifications

Main Features and Advantages

The 469-P5-HI-A20-E-H GE is packed with features that set it apart as a leader in motor management. Its most significant advantage is its comprehensive protective suite, which uses advanced algorithms to protect motors from a wide range of fault conditions. This includes sensitive stator and bearing protection, start-up supervision, and thermal model tracking that accurately calculates the motor’s thermal capacity used in real-time, accounting for positive and negative sequence currents.

Advanced Monitoring and Diagnostics: The relay provides deep visibility into motor operation. It continuously monitors key parameters such as current, voltage, power, power factor, and energy. The built-in oscillographic and event recording capabilities of the 469-P5-HI-A20-E-H GE are invaluable for post-event analysis, allowing engineers to understand the sequence of events leading up to a trip and quickly diagnose root causes. The high-brightness LCD display offers a local human-machine interface (HMI) for on-site configuration and viewing of real-time data, status, and alarms.

Seamless System Integration: With support for multiple industry-standard communication protocols like Modbus TCP and Ethernet, the 469-P5-HI-A20-E-H GE can be easily integrated into existing DCS, PLC, or SCADA systems. This allows for centralized monitoring and control from the control room, enabling remote start/stop commands, setting adjustments, and data aggregation for historical trending and asset management. Its robust design and flexible I/O configuration make it adaptable to a vast array of motor control center designs and applications.

Application Field

The 469-P5-HI-A20-E-H GE is indispensable in any industry that relies on critical, high-value motors for its continuous or batch processes. Its robust protection and monitoring capabilities make it a perfect fit for harsh and demanding environments.

In the Oil & Gas sector, the 469-P5-HI-A20-E-H GE is used to protect vital equipment such as gas compressor drives, pipeline pumps, and refinery charge pumps, where unexpected motor failure can lead to massive production losses and safety hazards. In the Mining industry, it safeguards crushers, conveyors, and large slurry pumps from the damaging effects of jam conditions and excessive starts. The Water and Wastewater treatment industry relies on this relay for critical pumps and aeration blowers, ensuring uninterrupted community services and protecting against faults caused by pump blockages or run-dry conditions.

Furthermore, the 469-P5-HI-A20-E-H GE is extensively applied in Power Generation plants for boiler feed pumps, induced draft fans, and circulating water pumps. It is also a key component in Chemical Processing and Metal & Mining industries, where it manages motors driving mixers, extruders, and rolling mills. In all these applications, the relay’s primary role is to act as a sentinel, ensuring motor reliability, enhancing personnel safety, and providing the data necessary for intelligent, condition-based maintenance planning.

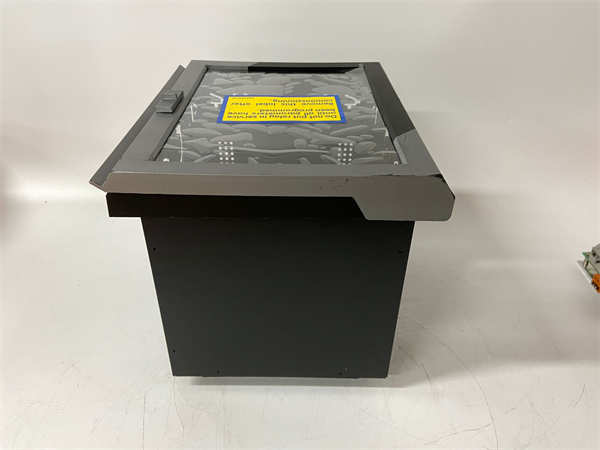

GE 469-P5-HI-A20-E-H

Related Products

GE Multilin 469: The base platform series, with various models offering different feature sets and I/O configurations.

GE Multilin 869: An advanced, larger motor and generator protection relay for the most demanding and critical applications.

GE Multilin 369: A motor management relay focused on providing essential protection for medium-voltage motors.

GE SR469-P5-LO-A20-E: A likely variant of the same series, potentially with a lower-tier display or different communication options.

GE F35: A feeder management relay often used in the same switchgear to provide protection for the circuits supplying the motors.

GE UR series (e.g., UR L611): Universal relays from GE that can be configured for generator, transformer, or feeder protection, often found in parallel with the 469.

GE DCU202L: A traditional motor protection device, representing an older generation that the 469-P5-HI-A20-E-H supersedes with digital intelligence.
