Description

The VMIVME-2536 is a high-performance, 64-channel digital input/output module manufactured by VMIC (VME Microsystems International Corporation), a renowned provider of VMEbus-based solutions. This module is designed as a critical interface component within industrial automation and control systems, acting as the vital link between the central VMEbus controller and a wide array of external digital devices such as sensors, actuators, relays, and indicators. Its core function is to acquire digital status signals from the field and execute control outputs with high speed and precision, making it an indispensable part of real-time data acquisition and control applications.

As a member of VMIC’s extensive VME product family, the VMIVME-2536 is engineered for integration into robust and demanding computational platforms. It typically occupies a single slot in a VME chassis, contributing to a compact yet powerful system architecture. The module’s value lies in its ability to provide a high channel count in a single module, coupled with optical isolation, which protects the sensitive backplane and central processor from electrical noise, voltage spikes, and ground loops commonly found in industrial environments. This combination of density, performance, and protection ensures system integrity and operational continuity.

The positioning of the VMIVME-2536 is within mid-to-high-end industrial and scientific applications where reliability and deterministic response are non-negotiable. It serves as a workhorse I/O solution in complex systems, enabling precise control over manufacturing processes, experimental apparatus, and large-scale test facilities. By leveraging the proven VMEbus architecture, the VMIC VMIVME-2536 delivers the ruggedness and longevity required for critical 24/7 operations, establishing itself as a trusted component for system integrators and engineers.

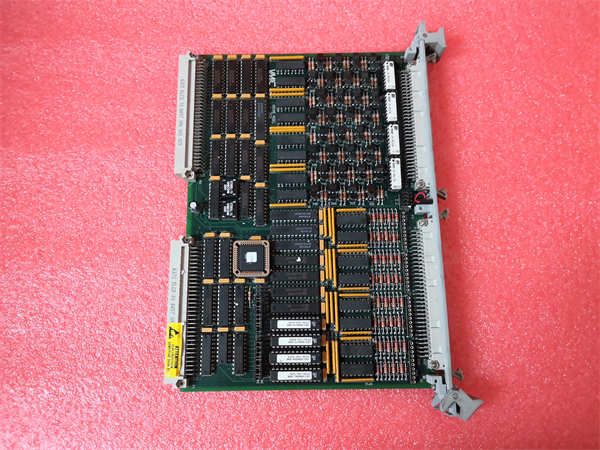

VMIC VMIVME-2536

Technical Specifications

Main Features and Advantages

High-Density Channel Configuration: The VMIVME-2536 integrates 64 digital I/O channels onto a single 6U VME board, maximizing I/O capability per slot. This high-density design is crucial for reducing the overall footprint of the control system and lowering the total cost of ownership by minimizing the number of modules and chassis required for large-scale applications.

Superior Noise Immunity and System Protection: Each I/O channel on the VMIVME-2536 is equipped with optical isolation. This feature creates a protective barrier between the field wiring and the sensitive VMEbus backplane, effectively suppressing electromagnetic interference (EMI), preventing ground loops, and shielding the central control system from potentially damaging voltage transients. This results in unparalleled system stability and reliability in electrically noisy industrial environments.

Software Flexibility and Ease of Integration: The module features a programmable base address and interrupt handling capabilities, allowing for flexible integration into complex multi-card VME systems. Its register-based structure is well-documented, enabling software engineers to develop custom drivers and control logic efficiently. This flexibility makes the VMIC VMIVME-2536 adaptable to a wide range of proprietary and standard software platforms.

Ruggedized Industrial Design: Built to meet the demands of industrial and scientific use, the VMIVME-2536 is constructed with high-quality components and is designed for continuous operation. Its robust build quality ensures long-term reliability, making it a preferred choice for mission-critical applications where system failure is not an option.

VMIC VMIVME-2536

Application Field

The VMIC VMIVME-2536 finds its primary application in sectors that demand robust, real-time control and data acquisition within a VMEbus architecture. In industrial automation, it is extensively used in programmable automation controllers (PACs) for controlling complex manufacturing lines, robotic workcells, and material handling systems. Its high channel count and reliability make it ideal for monitoring limit switches, controlling solenoid valves, and managing indicator lights in automotive, chemical, and semiconductor fabrication plants.

Within the scientific research and particle physics community, the VMIVME-2536 is a cornerstone for controlling and monitoring large-scale experimental equipment. It is commonly deployed in particle accelerators, beam lines, and nuclear research facilities to interface with safety interlocks, vacuum system components, and diagnostic equipment. The module’s deterministic response and noise immunity are critical in these sensitive environments.

Furthermore, the VMIVME-2536 is a perfect fit for high-performance test and measurement stands. In industries like aerospace and automotive, it is used in engine test beds, structural test rigs, and environmental simulation chambers to automate test sequences, acquire digital status signals, and control actuators with high precision. Its ability to operate reliably in challenging conditions ensures the integrity and repeatability of critical testing procedures.

Related Products

VMIVME-2550: A 32-channel analog input module, often used alongside the VMIVME-2536 in systems requiring both digital and analog signal acquisition.

VMIVME-4140: A versatile counter/timer and digital I/O board, suitable for applications requiring precise timing and pulse generation in addition to standard I/O.

VMIVME-7455: A single-board computer (SBC) based on the PowerPC architecture, serving as the central processor in a VME system that utilizes the VMIVME-2536 for I/O.

VMIVME-7685: A reflective memory board, used for high-speed, low-latency data sharing between multiple VME systems, complementing the control function of the VMIVME-2536.

VMIPMC-2536: The PCI Mezzanine Card (PMC) version of the same I/O functionality, offering flexibility for systems based on a different bus standard.
