Description

The BENTLY 3500/33 149986-01 is a crucial 4-Channel Vibration Monitor that forms the analytical core of the Bently Nevada 3500 Machinery Protection System. This specific part number, 149986-01, represents a key configuration or hardware revision of the standard 3500/33 module, ensuring compatibility and performance for a wide range of applications. Its primary function is to continuously monitor the mechanical health of rotating equipment by processing vibration signals from up to four proximity probes, accelerometers, or other seismic transducers. The module performs critical calculations to determine the overall vibration levels (including peak-to-peak, RMS, or acceleration values), providing real-time data that is essential for both operational oversight and automatic protective actions.

Integrated within the 3500 rack, the BENTLY 3500/33 149986-01 receives power and communicates with the framework interface and other modules via the high-speed backplane. It is designed to provide two levels of alert—Alert (warning) and Danger (shutdown)—based on user-configurable setpoints. When these thresholds are exceeded, the module communicates directly with relay modules like the 3500/45 to initiate alarms or safely shut down the machinery, preventing catastrophic failure. The BENTLY 3500/33 149986-01 is more than just a monitor; it is a dedicated guardian for critical assets such as turbines, compressors, and pumps, transforming raw sensor data into actionable intelligence for predictive maintenance and operational safety.

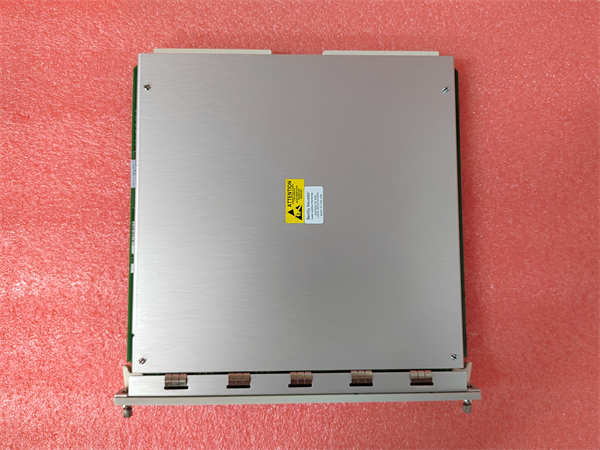

BENTLY 3500/33 149986-01

Technical Specifications

Main Features and Advantages

The BENTLY 3500/33 149986-01 is distinguished by its exceptional flexibility and powerful diagnostic capabilities. A cornerstone of its design is the software configurability of each channel. Users can independently set up each of the four channels to accept input from different types of transducers—be it a proximity probe for shaft relative vibration, a velocity sensor for casing vibration, or an accelerometer. This universality makes the BENTLY 3500/33 149986-01 incredibly versatile, allowing it to protect multiple machine train elements with a single module, thereby reducing spare parts inventory and simplifying system architecture.

Advanced Dynamic Signal Processing and Reliability: The module excels in its processing of dynamic vibration signals. It provides key machine information such as overall vibration amplitude (in µm, mm/s, or g) and, when used with a Keyphasor® reference, can also process spectral data for advanced diagnostics. The BENTLY 3500/33 149986-01 incorporates sophisticated features like sensor fault detection, which validates the health of the connected probes and wiring, preventing false trips. Its dual-level, user-adjustable Alert and Danger setpoints, complete with on/off delay timers, ensure that protective actions are both accurate and resistant to transient spikes, guaranteeing that the machine is only shut down when a genuine dangerous condition exists.

Seamless System Integration and Diagnostics: As an integral part of the 3500 system, the BENTLY 3500/33 149986-01 shares data seamlessly with other modules, such as the Transient Data Interface (TDI) module for capturing startup/shutdown data, and the relay modules for initiating trips. Its front-panel LCD display provides at-a-glance status of all four channels, showing bar graphs, values, and alarm status, which is invaluable for quick operator rounds and troubleshooting. This comprehensive integration and visibility make the BENTLY 3500/33 149986-01 a reliable and intelligent cornerstone of any modern machinery protection strategy.

Application Field

The BENTLY 3500/33 149986-01 is deployed across virtually all industries that rely on high-speed, critical rotating machinery where unplanned downtime is not an option. Its primary role is to serve as the first line of defense against mechanical failures by detecting abnormal vibration conditions that indicate issues like imbalance, misalignment, rolling element bearing defects, and rotor rubs.

In the Oil & Gas sector, the BENTLY 3500/33 149986-01 is indispensable for protecting centrifugal and reciprocating compressors, gas and steam turbines, and large pumps on offshore platforms and in refineries. In Power Generation, both conventional and nuclear plants depend on it to monitor the health of turbine-generator sets, feedwater pumps, and fans. The precise monitoring provided by the BENTLY 3500/33 149986-01 is critical for avoiding catastrophic blade loss or bearing failures that can lead to weeks of downtime and millions in repair costs.

Furthermore, this module is extensively used in the Chemical and Petrochemical industries for critical reactor feed pumps and mixers, and in the Marine industry for main propulsion turbines. In every application, the BENTLY 3500/33 149986-01 solves the critical problem of translating complex mechanical motion into clear, actionable data. It enables a predictive maintenance approach, allowing plant personnel to schedule repairs during planned outages rather than reacting to emergencies, thereby maximizing asset availability, ensuring personnel safety, and protecting the bottom line.

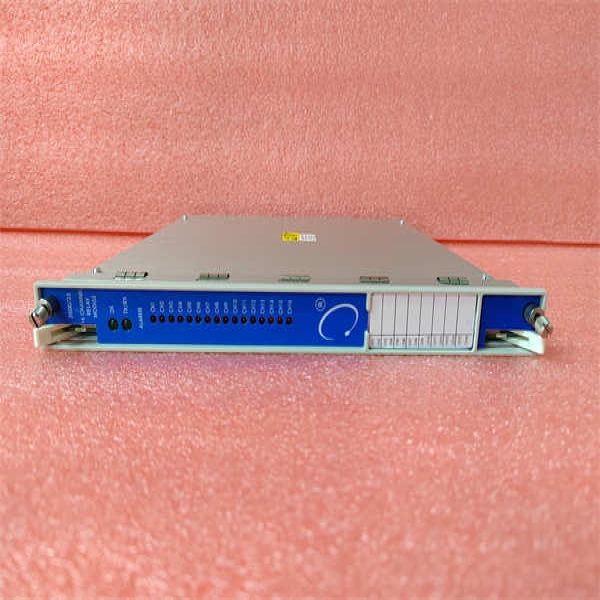

BENTLY 3500/33 149986-01

Related Products

BENTLY NEVADA 3300 XL 8mm Proximitor® Sensor: The primary vibration sensor that provides input signals to the 3500/33 149986-01.

BENTLY NEVADA 3500/25: Keyphasor® Module, which provides a once-per-revolution timing signal essential for phase reference and speed measurement, used in conjunction with the 3500/33.

BENTLY NEVADA 3500/42M: Transient Data Interface Module, which captures high-speed waveform data from the 3500/33 149986-01 during startup, shutdown, or trip events for detailed analysis.

BENTLY NEVADA 3500/45: Relay Module, which receives trip signals from the 3500/33 149986-01 and executes a safety shutdown of the machinery.

BENTLY NEVADA 3500/15: A general-purpose proximity transducer system used for position and vibration measurement, compatible with the 3500/33.

BENTLY NEVADA 3500/32: A more specialized 4-Channel Vibration Monitor that may offer different functionality or compatibility, often considered alongside the 3500/33.
