Description

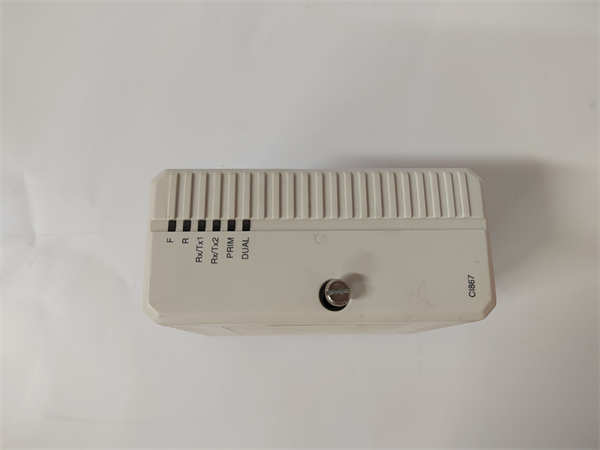

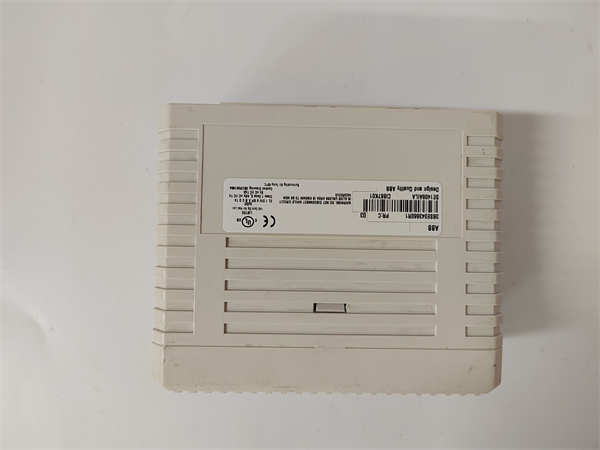

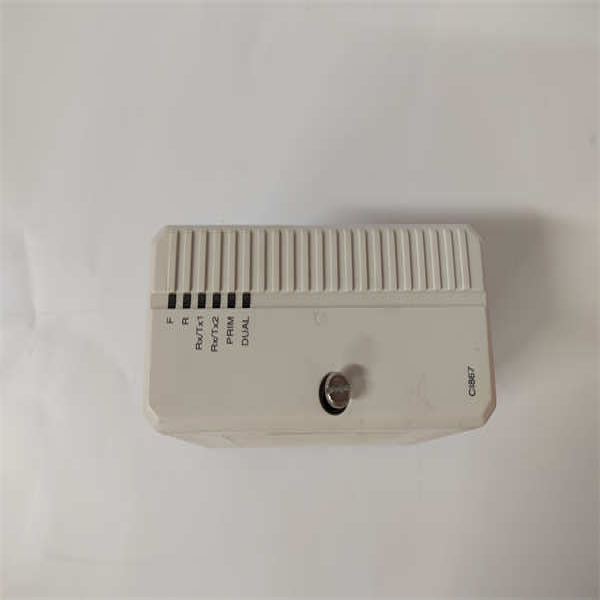

The ABB CI867 3BSE043661R1 is a highly versatile PROFIBUS DP-V1 Slave communication interface module, engineered as a key component for the ABB AC 800M controller family and the broader System 800xA automation platform. Its primary role is to act as a gateway, allowing an ABB controller to seamlessly integrate as a node into a larger, third-party PROFIBUS DP network managed by an external master (e.g., from Siemens, Siemens, or other PLC vendors). This functionality is crucial in modern industrial plants where multi-vendor system interoperability is a necessity. The CI867 3BSE043661R1 enables the AC 800M to exchange critical process data—including analog and digital I/O values—with the central PROFIBUS master, making local controller data available for plant-wide supervision and control. By implementing the ABB CI867 3BSE043661R1, engineers can achieve deep-level system integration without the need for complex and expensive custom gateways, thereby simplifying architecture, reducing costs, and enhancing data flow efficiency across different automation systems.

ABB CI867 3BSE043661R1

Technical Specifications

Main Features and Advantages

The ABB CI867 3BSE043661R1 excels in providing robust and flexible integration capabilities. Its standout feature is full compliance with the PROFIBUS DP-V1 standard, which supports not only high-speed cyclic data exchange but also acyclic communication for advanced functions like parameterization, remote diagnostics, and alarm handling. This gives system integrators and plant operators unparalleled visibility and control over the data exchange process. The module’s configuration is highly streamlined within the ABB ecosystem; using the familiar Control Builder M engineering tool, users can easily map the AC 800M controller’s process variables to the PROFIBUS slave’s input and output image, eliminating the need for complex third-party configuration software.

Ease of use and reliability: The ABB CI867 3BSE043661R1 features intuitive rotary switches on its front for setting the PROFIBUS node address, removing the dependency on software for this basic setup and facilitating quick replacement and maintenance. Its robust design includes strong electrical isolation, protecting the core controller from electrical noise and surges on the PROFIBUS network, which is critical for maintaining system stability in harsh industrial environments. The ABB CI867 is designed for high deterministic performance, ensuring that data is exchanged with the master within a defined and consistent cycle time, which is essential for synchronized process operations. This combination of powerful features makes the CI867 3BSE043661R1 an indispensable tool for breaking down automation silos.

ABB CI867 3BSE043661R1

Application Field

The ABB CI867 3BSE043661R1 is strategically deployed in scenarios requiring the integration of ABB’s powerful control systems into broader, multi-vendor automation architectures. In the automotive manufacturing industry, the CI867 3BSE043661R1 is often used to connect ABB’s robot controllers or quality control systems to a central Siemens-based PLC line controller, enabling seamless coordination of production sequences. Within the water and wastewater sector, it allows an ABB AC 800M-based local treatment system to act as a intelligent slave within a larger municipal SCADA network managed by a different vendor’s master, efficiently reporting process data and alarms.

In the metals and mining industry, the ABB CI867 facilitates the integration of specialized ABB drive systems or analyzer systems into the main plant DCS. For large conveyor systems or material handling applications, the module can be used to integrate local control stations into a centralized PROFIBUS network. Furthermore, in energy and power generation, the ABB CI867 3BSE043661R1 serves as a critical link, allowing a balance-of-plant system controlled by ABB to communicate vital operational data to a turbine control system from another manufacturer, ensuring holistic plant monitoring and optimization. Its versatility makes it a cornerstone for achieving unified operational technology (OT) connectivity.

Related Products

CI854A: Another PROFIBUS DP Slave module variant, offering similar functionality for different system configurations or as an alternative.

CI855K01: A PROFIBUS DP Master module, used when the ABB AC 800M system needs to act as the network master, controlling other slave devices.

CI871F: A PROFINET IO Controller module, providing a modern Ethernet-based fieldbus solution for future-oriented network designs.

TU843: An S800 I/O unit that serves as the mounting base for the CI867 module, providing power and backplane connectivity.

SD823: A Power Supply Module for the S800 I/O station, ensuring reliable power delivery to the CI867 3BSE043661R1 and other I/O modules.

AC 800M PM861A: A high-performance controller that frequently pairs with the CI867 for complex control and integration tasks.

CP635: An operator panel that can be connected to systems using the CI867, providing a local interface.

DSQC 1000: A range of PROFIBUS network accessories, including connectors and repeaters, essential for building a robust network with the CI867.
