Description

The NI GPIB-140A 186135F-31 is a high-performance GPIB (General Purpose Interface Bus) controller module manufactured by National Instruments, designed specifically for PXI systems to provide robust connectivity and control for test and measurement instruments. This sophisticated module serves as a critical interface between the PXI platform and a wide range of GPIB-compatible instruments, enabling seamless integration of traditional bench-top instruments into modern automated test systems. The primary function of the NI GPIB-140A 186135F-31 is to translate PXI bus commands into GPIB protocol, allowing the main controller to communicate with and control multiple GPIB devices as if they were directly connected to the system.

As part of National Instruments’ comprehensive instrument control portfolio, the NI GPIB-140A 186135F-31 maintains full compliance with the IEEE 488.2 standard, ensuring compatibility with thousands of GPIB instruments from various manufacturers. The module features the specific revision designation 186135F-31, indicating its particular hardware version and ensuring precise identification for compatibility and support purposes. This controller card effectively bridges the gap between legacy instrumentation and modern PXI-based test systems, extending the lifespan and utility of existing GPIB equipment while leveraging the advantages of modular instrumentation.

The strategic value of the NI GPIB-140A 186135F-31 extends beyond basic connectivity to encompass comprehensive system integration and performance optimization. Through tight integration with NI’s software ecosystem, including NI-488.2 driver software and LabVIEW, this module provides a seamless development experience for engineers creating automated test systems. The NI GPIB-140A 186135F-31 enables high-speed data transfer rates up to 1.5 MB/s (with HS488 capability), supporting efficient data acquisition from multiple instruments simultaneously. This capability makes the module particularly valuable in applications requiring coordinated measurements across diverse instrumentation, such as manufacturing test, research and development, and validation systems where reliable instrument control is essential for accurate and repeatable results.

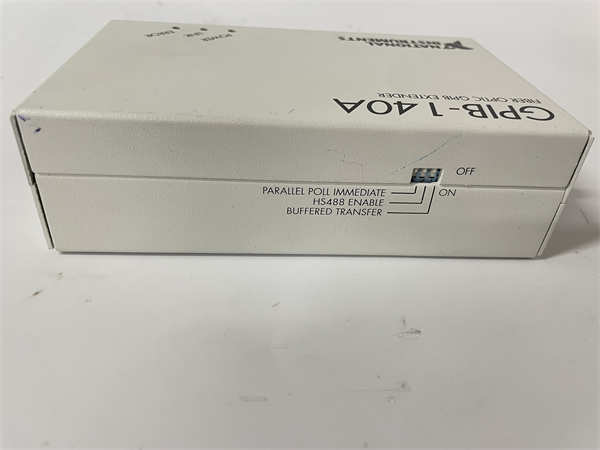

NI GPIB-140A 186135F-31

Technical Specifications

Main Features and Advantages

High-Performance GPIB Control: The NI GPIB-140A 186135F-31 delivers exceptional performance with data transfer rates up to 1.5 MB/s when used with HS488-compatible devices, significantly faster than standard GPIB implementations. This high-speed capability ensures efficient data collection in automated test applications where throughput is critical. The module supports full IEEE 488.2 functionality, including all controller, talker, and listener capabilities, making the NI GPIB-140A 186135F-31 a complete solution for controlling complex test systems with multiple instruments.

Seamless PXI Platform Integration: Designed specifically for the PXI platform, the NI GPIB-140A 186135F-31 leverages the advantages of modular instrumentation while providing connectivity to traditional GPIB instruments. This integration allows engineers to build hybrid test systems that combine the best of both worlds – the performance and modularity of PXI instruments with the established reliability of legacy GPIB equipment. The NI GPIB-140A 186135F-31 appears as a standard resource within the PXI system, enabling straightforward configuration and programming through National Instruments’ industry-standard software tools.

Comprehensive Software Support and Compatibility: A significant advantage of the NI GPIB-140A 186135F-31 is its extensive software support through NI’s proven NI-488.2 driver software. These drivers provide a consistent API across multiple programming environments, including LabVIEW, C, C++, and .NET languages, ensuring rapid development and deployment of automated test applications. The module maintains backward compatibility with existing GPIB code while providing modern features and performance enhancements. The robust driver ecosystem surrounding the NI GPIB-140A 186135F-31 simplifies system integration and reduces development time, making it an ideal choice for both new system designs and upgrades to existing test platforms.

Application Field

The NI GPIB-140A 186135F-31 finds extensive application in various test and measurement environments where integration of GPIB instruments with PXI-based systems is required. In automated test equipment (ATE) for manufacturing, this module enables the control of legacy instruments such as power supplies, oscilloscopes, spectrum analyzers, and multimeters within modern PXI test racks. The NI GPIB-140A 186135F-31 is particularly valuable in electronics manufacturing test systems, where it facilitates the creation of comprehensive test suites that combine the speed of PXI instruments with the specialized capabilities of GPIB-based measurement equipment.

In research and development laboratories, the NI GPIB-140A 186135F-31 serves as a crucial component in experimental setups that require precise control of multiple instruments from different vendors. The module’s ability to control up to 14 devices on a single GPIB bus makes it ideal for complex measurement systems in physics experiments, material science research, and semiconductor characterization. The NI GPIB-140A 186135F-31 enables researchers to automate data collection processes, ensuring measurement consistency and repeatability while freeing up valuable time for data analysis rather than manual instrument operation.

The aerospace and defense sectors extensively utilize the NI GPIB-140A 186135F-31 in system verification and validation environments, where it interfaces with specialized test equipment for avionics testing, radar system validation, and communication equipment qualification. The module also plays a significant role in automotive test systems for component validation, in telecommunications equipment testing, and in calibration laboratories where standardized communication with reference instruments is essential. Across all these applications, the NI GPIB-140A 186135F-31 provides the reliable bridge between modern PXI controllers and established GPIB instrumentation, protecting investments in existing equipment while enabling migration to more modern test architectures.

NI GPIB-140A 186135F-31

Related Products

NI PXI-1042: PXI chassis providing the platform for the GPIB-140A 186135F-31 module

NI PXI-8108: PXI embedded controller for running test software and controlling the GPIB interface

NI GPIB-USB-HS: USB-to-GPIB interface adapter for computer-based instrument control

NI PXI-2567: PXI relay module for signal switching applications in test systems

NI PXI-4461: PXI dynamic signal acquisition module for high-accuracy audio measurements

NI GPIB-140A: Base model of the GPIB controller family, with different firmware revisions

NI LabVIEW: Graphical programming environment for developing automated test applications with the GPIB-140A 186135F-31
