Description

The GE SR469-P5-HI-A20-E is a high-performance, multifunctional motor management relay from the renowned GE Multilin SR469 series. This specific model represents a fully configured version designed to provide comprehensive protection, monitoring, and control for large, critical motors, typically in the medium to high-voltage range. As a central component in industrial motor control centers (MCCs) and switchgear, the GE SR469-P5-HI-A20-E goes far beyond basic overload protection; it serves as an intelligent electronic device (IED) that continuously analyzes motor health and system conditions to prevent damage, optimize performance, and enable predictive maintenance strategies. Its robust design is tailored for the harsh environments found in industries like mining, oil and gas, water treatment, and power generation.

The “P5-HI-A20-E” suffix indicates a specific hardware and functional configuration, which includes a high-current input rating, a specific number of I/O points, and a defined communication option. This pre-engineering simplifies system design and procurement, ensuring you get a relay perfectly suited for a class of demanding motor applications. The GE SR469-P5-HI-A20-E incorporates advanced algorithms for accurate thermal modeling, simulating the motor’s heating and cooling characteristics in real-time to prevent insulation degradation. It also provides extensive metering, event recording, and oscillographic capabilities, offering unparalleled visibility into motor operation and fault conditions. By deploying the GE SR469-P5-HI-A20-E, you are not just installing a protector; you are empowering your operations with deep asset intelligence that drives reliability and efficiency.

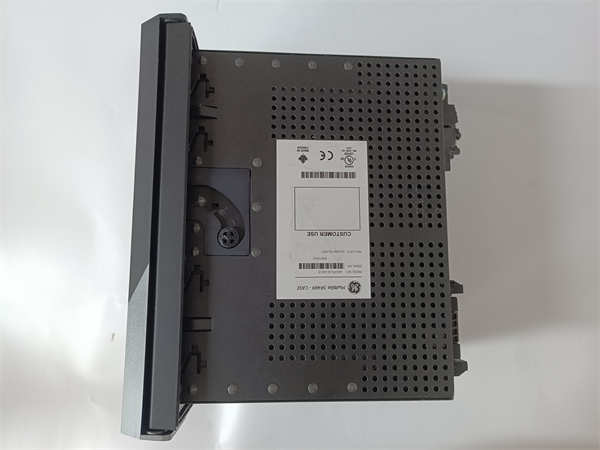

GE SR469-P5-HI-A20-E

Technical Specifications

Main Features and Advantages

The GE SR469-P5-HI-A20-E is distinguished by its sophisticated protection suite and user-centric design. Its most critical feature is the dual-setting thermal model, which uses both embedded mathematical algorithms and optional Resistance Temperature Detectors (RTDs) to provide the most accurate representation of motor heating. This ensures the motor is protected against overloads during startup and running conditions without being unnecessarily tripped by harmless transient currents. The relay also includes advanced functions like current unbalance protection, which safeguards the motor from damaging negative sequence currents, and start and stall protection, which prevents the motor from being damaged during failed start attempts or mechanical jams.

Operational efficiency is another key advantage. The GE SR469-P5-HI-A20-E offers extensive control capabilities, supporting direct control of the motor contactor or breaker and enabling complex sequencing and auto-restart logic. The high-resolution, backlit graphical display provides a clear interface for on-site commissioning, real-time data monitoring, and quick access to detailed event logs and oscillographic records, which are invaluable for post-fault analysis. The flexible communication options of the GE SR469-P5-HI-A20-E allow it to seamlessly integrate into plant DCS, PLC, or SCADA systems, enabling centralized monitoring and control while facilitating the implementation of predictive maintenance by tracking motor performance trends and health indicators over time.

Application Field

The GE SR469-P5-HI-A20-E is the protection and management solution of choice for critical motors across a wide spectrum of heavy industries. In the Oil & Gas sector, it is indispensable for protecting large pumps, compressors, and fans on offshore platforms and in refineries, where unplanned motor downtime can lead to massive production losses and safety hazards. In Mining and Mineral Processing, the relay safeguards crushers, conveyors, and ball mills from the severe mechanical stresses and demanding duty cycles inherent in these operations. The robust protection of the GE SR469-P5-HI-A20-E ensures that these high-inertia loads can start and run reliably.

Furthermore, the GE SR469-P5-HI-A20-E is extensively used in Water and Wastewater Treatment facilities for protecting pump motors that are essential for the flow of water and processing of sewage. In Power Generation plants, it is used to protect critical auxiliary drives such as boiler feed pumps, induced draft fans, and cooling water pumps. In any application involving large, expensive, and process-critical motors, the GE SR469-P5-HI-A20-E provides the necessary intelligence to prevent catastrophic failure, extend asset life, and maintain continuous operational throughput.

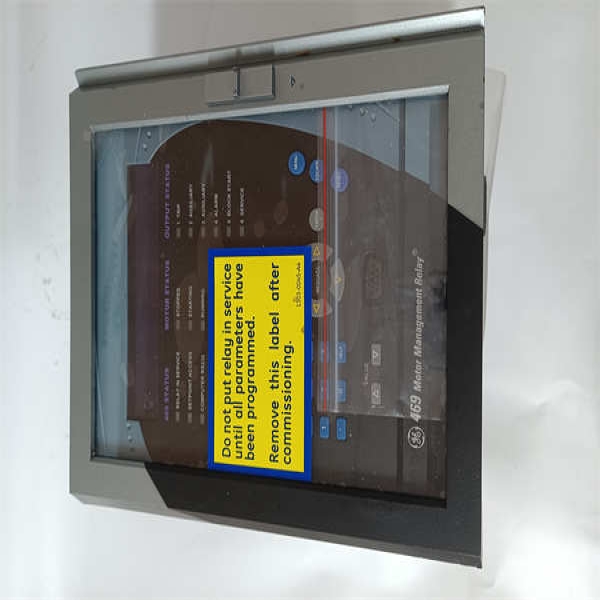

GE SR469-P5-HI-A20-E

Related Products

GE SR469-P5-HI-A20-H: A similar model but likely with a different power supply or communication option (as indicated by the ‘H’ suffix).

GE SR469-P5-LO-A20-E: A version configured for lower primary current inputs.

GE Multilin 869: Another motor protection relay from GE, often considered for different application requirements or as part of an upgraded system.

GE Multilin 750: A feeder management relay that can be used to protect the feeder circuit supplying the motor control center where the SR469-P5-HI-A20-E is installed.

GE Multilin UR series (UR/F35): A broader family of protection relays for generators, transformers, and buses, often used in the same switchgear lineup.
