Description

The GE IC693DNM200-BD is a specialized Genius Bus Controller (GBC) communication module designed for the GE Fanuc Series 90-30 programmable logic controller. This module serves as a critical gateway, enabling the central PLC rack to communicate with and manage a distributed network of Genius I/O blocks, drives, and other intelligent devices. By implementing the proprietary Genius LAN (Local Area Network), the GE IC693DNM200-BD facilitates a high-performance, deterministic, and highly reliable serial data exchange, effectively extending the control system’s I/O reach over significant distances up to 7500 feet on a single twisted-pair cable. This architecture is fundamental for modern industrial automation, allowing for a decentralized control scheme that reduces wiring costs, improves scalability, and localizes fault domains.

Installed directly into a slot on the Series 90-30 rack, the GE IC693DNM200-BD acts as the master on the Genius network, continuously polling all configured remote devices. It presents the data from these distributed I/O points to the Series 90-30 CPU as if they were local to the main rack, simplifying programming and system configuration. The module is renowned for its robust diagnostic capabilities, providing detailed status information for every device on the network, which allows for rapid fault detection and isolation. For any system requiring a distributed I/O strategy with high integrity, the GE IC693DNM200-BD provides a proven, reliable, and efficient connectivity solution that has been a industry standard for decades.

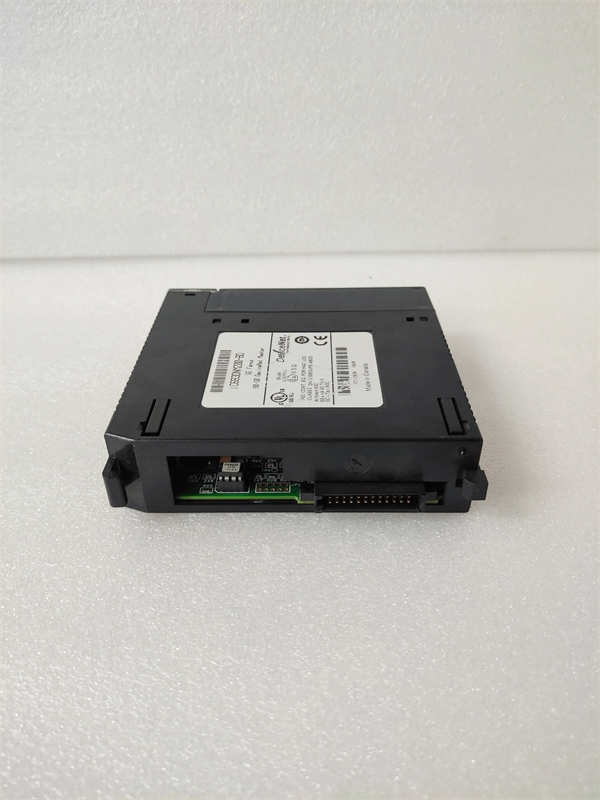

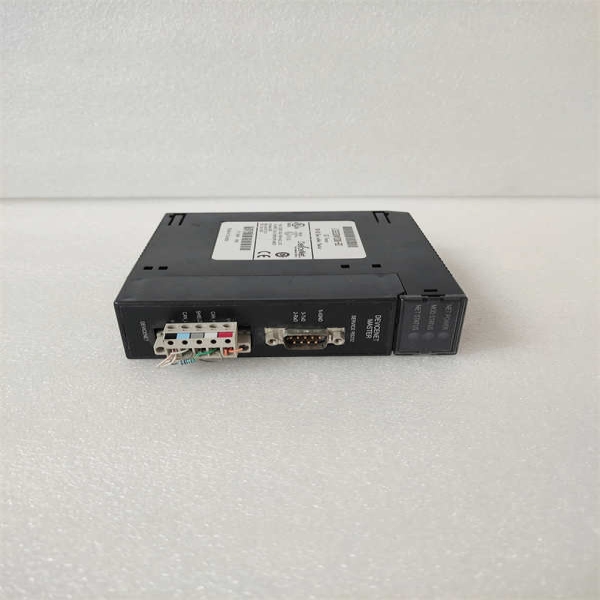

GE IC693DNM200-BD

Technical Specifications

Main Features and Advantages

The GE IC693DNM200-BD offers a powerful set of features centered around reliability, diagnostics, and system simplification. Its core function is to enable high-speed, deterministic communication on the Genius network, ensuring that I/O data is updated predictably within each bus scan cycle, which is critical for time-sensitive control applications. A major advantage is the significant reduction in installation wiring and cost; instead of running individual wires from every sensor and actuator back to the main control panel, a single twisted-pair cable connects all distributed devices to the GE IC693DNM200-BD.

Superior diagnostics are a hallmark of the Genius system managed by the GE IC693DNM200-BD. The module provides comprehensive status information for the entire network and each individual device, including communication faults, power loss at a remote block, and point-level failures. This allows maintenance personnel to pinpoint problems quickly, drastically reducing mean-time-to-repair (MTTR). The network is also designed with high noise immunity, making it suitable for electrically harsh industrial environments. Furthermore, the distributed nature of the system enhances overall reliability; a fault in one remote block does not necessarily impact the operation of others, allowing for graceful degradation and easier troubleshooting. The GE IC693DNM200-BD is the key to building a robust, scalable, and easily maintainable control architecture.

Application Field

The GE IC693DNM200-BD is deployed in a vast range of industries where control needs to be distributed across a large machine or process area. In automotive manufacturing, it is used to connect centralized Series 90-30 controllers to I/O blocks located on welding robots, transfer lines, and assembly stations, minimizing the wiring harness complexity. For material handling systems, such as large-scale conveyor networks in distribution centers or airports, the GE IC693DNM200-BD manages I/O from motor starters, photo-eyes, and barcode scanners spread over vast distances.

In water and wastewater treatment plants, the module is ideal for connecting control room PLCs to remote pump stations, chemical dosing skids, and filter beds via the robust Genius network. The food and beverage industry utilizes the GE IC693DNM200-BD for processing lines where washdown conditions are common, as the Genius I/O blocks are often available in rugged, sealed enclosures. Any application that benefits from reducing the amount of home-run wiring back to the main control panel—such as machine builders looking to simplify cabinet design or plant engineers managing extensive processes—will find immense value in implementing the GE IC693DNM200-BD as their network backbone.

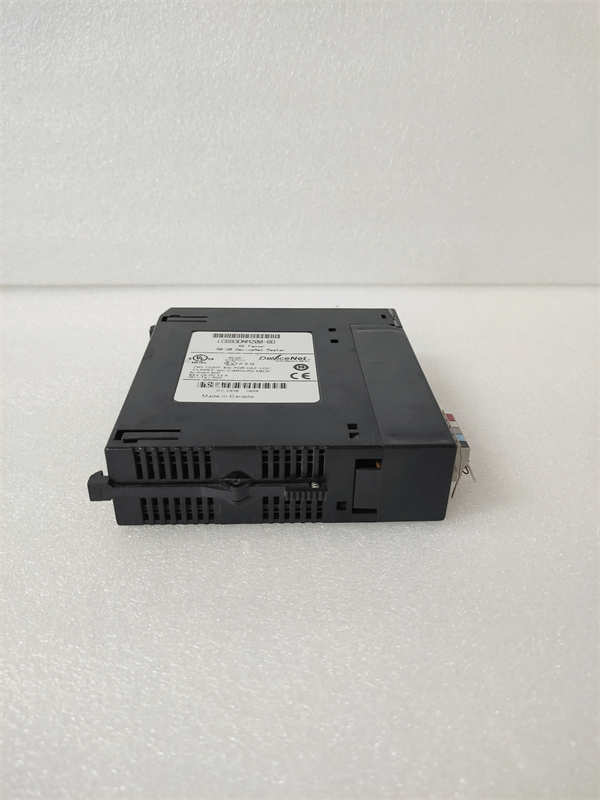

GE IC693DNM200-BD

Related Products

GE IC693PWR321: A standard 120/240V AC power supply for the Series 90-30 rack hosting the IC693DNM200-BD.

GE IC693CPU350: A typical Series 90-30 CPU that would work in conjunction with the IC693DNM200-BD to execute control logic using the distributed I/O data.

GE IC660BBD020: A representative Genius discrete input block, which is the type of remote device the IC693DNM200-BD communicates with.

GE IC660BBD100: A Genius discrete output block, used for controlling actuators and valves on the network managed by the IC693DNM200-BD.

GE IC660ELA100: A Genius analog I/O block, for handling analog signals like 4-20mA or 0-10V DC remotely.

GE IC660TBA002: A Genius network terminator, required at both ends of the bus for proper signal integrity.
