Description

The ICS TRIPLEX T8431 is a critical component within the renowned Triconex Trusted Safety Instrumented System (SIS), functioning as a 32-channel, 24-48V DC Triple Modular Redundant (TMR) digital input module. Now under the Baker Hughes brand following the acquisition of the Triconex product line, this module serves as the essential “sensory organ” for the safety PLC, responsible for reliably reading the status of critical field devices such as emergency stop buttons, pressure switches, flow switches, and level switches. The primary role of the ICS TRIPLEX T8431 is to convert these discrete field signals into a robust, fault-tolerant data stream that the main TMR processor (like the T8403) can use to make safety-critical decisions. Its design is fundamental to ensuring that no dangerous condition goes undetected by the safety system.

Engineered with the core philosophy of high integrity and availability, the ICS TRIPLEX T8431 employs three isolated and independent input channels for every single point. These three channels are constantly compared internally within the module. This sophisticated TMR architecture ensures that a single failure in any part of the module’s circuitry, or in the field wiring, does not lead to a spurious trip or, more critically, a failure to act on a genuine demand. The ICS TRIPLEX T8431 is certified for use in Safety Integrity Level (SIL) 3 applications according to IEC 61508, making it a trusted choice for the most demanding safety functions in hazardous processes worldwide. By providing a dependable link between the physical world and the logical solver, the ICS TRIPLEX T8431 forms the foundational layer of a reliable safety loop.

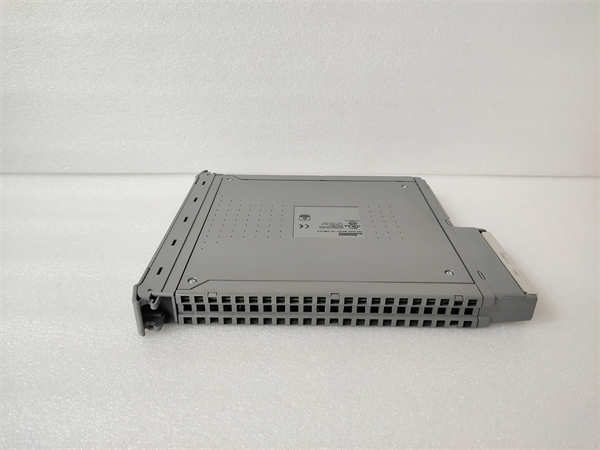

ICS TRIPLEX T8431

Technical Specifications

Main Features and Advantages

The paramount feature of the ICS TRIPLEX T8431 is its inherent Triple Modular Redundancy applied at the individual point level. Each of the 32 input channels consists of three completely isolated circuits, each with its own opto-isolator and microprocessor. The module performs a two-out-of-three (2oo3) vote on the state of each point internally before presenting a single, validated value to the main TMR processor. This design provides fault tolerance against internal component failures and certain field wiring faults, dramatically increasing system availability by preventing nuisance shutdowns while maintaining the highest safety integrity.

Advanced diagnostics are integral to the ICS TRIPLEX T8431‘s operation. The module continuously monitors itself for faults, including field power loss, open circuit conditions, and internal channel disagreements. It reports these diagnostics in detail to the engineering workstation, allowing for predictive maintenance and rapid troubleshooting. The module is designed for high-density I/O, allowing a significant number of safety points to be accommodated in a single slot, which optimizes chassis space and reduces the overall footprint of the safety system. Furthermore, the ICS TRIPLEX T8431 is fully hot-swappable. This means it can be safely removed and replaced while the rest of the safety system remains operational, a critical capability for minimizing downtime during maintenance in continuous process industries.

Application Field

The ICS TRIPLEX T8431 is deployed wherever the reliable monitoring of discrete on/off states is crucial for safety. In Emergency Shutdown (ESD) systems for oil and gas production platforms and pipelines, it is used to read signals from emergency depressurization valves, overpressure switches, and manual shutdown stations. In Fire and Gas (F&G) systems, the ICS TRIPLEX T8431 connects to smoke and heat detectors, gas sensors, and manual call points, forming the initiation network for alarm and suppression activation.

The power generation industry relies on the ICS TRIPLEX T8431 for turbine protection systems, where it monitors critical vibration switches, lube oil pressure switches, and overspeed detection mechanisms. In chemical processing plants, it is used in Burner Management Systems (BMS) to confirm flame status and in High Integrity Pressure Protection Systems (HIPPS). Any application that requires a guaranteed and fault-tolerant reading of a critical process state—from a simple level alarm to a complex permissive sequence—is a prime application for the robust and reliable ICS TRIPLEX T8431 module.

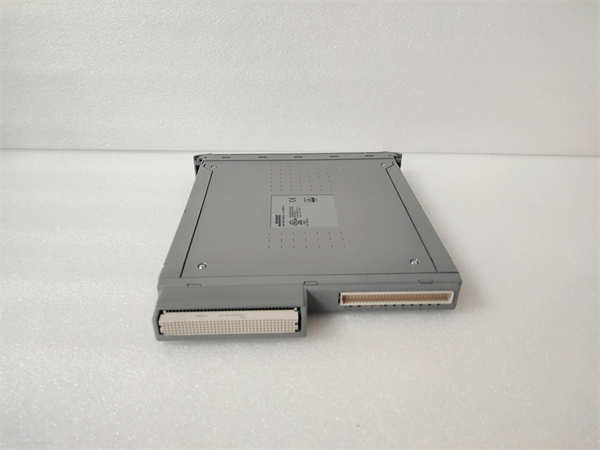

ICS TRIPLEX T8431

Related Products

ICS TRIPLEX T8403: The Trusted TMR Main Processor that relies on the input data from the T8431 to execute safety logic.

ICS TRIPLEX T8461: A Trusted TMR analog input module, used for reading continuous process variables like pressure and temperature.

ICS TRIPLEX T8471: A Trusted TMR digital output module, which acts on the decisions made by the processor based on T8431 inputs.

ICS TRIPLEX T8110B: A redundant power supply module that provides clean, reliable power to the chassis hosting the T8431.

ICS TRIPLEX T8432: Another model of digital input module within the Trusted system, potentially with different voltage ratings or channel counts.

TRICONEX 9564-810: A typical terminal board assembly used for connecting field wiring to the T8431 module.
