Description

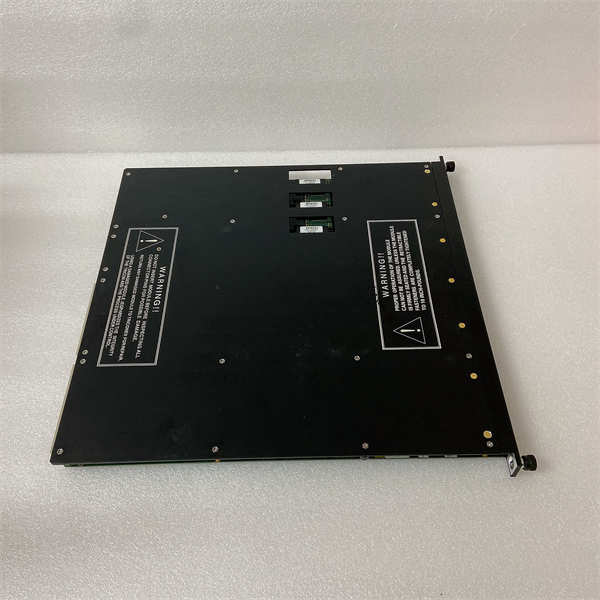

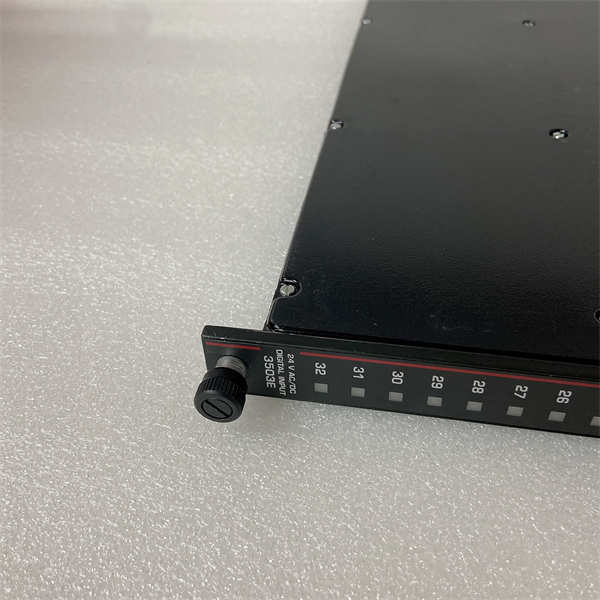

The TRICONEX 3503E is a high-integrity, 24V DC digital input module that serves as a fundamental component within the renowned Tricon Triple Modular Redundant (TMR) safety system. Its core function is to reliably monitor the status of critical field devices such as emergency stop buttons, pressure switches, flow switches, and other discrete sensors, converting their signals into a robust, fault-tolerant data stream for the main safety controller. The TRICONEX 3503E is engineered with a focus on fail-safety, ensuring that any internal fault within the module or the field wiring is detected and processed in a predictable, safe manner to prevent spurious trips or, more importantly, a failure to act on a dangerous condition.

As part of the Tricon V9/V9S system family, the TRICONEX 3503E module embodies the principle of TMR architecture. It contains three isolated and independent input channels that simultaneously read the same field signal. These three signals are then voted upon within the main processor to determine the true state of the field device, effectively masking any single-point failure within the module itself. This design is pivotal for applications requiring the highest Safety Integrity Level (SIL 3 as per IEC 61508). The value of the TRICONEX 3503E lies in its unparalleled ability to provide a deterministic and highly available input path for the world’s most critical safety instrumented systems (SIS), protecting people, assets, and the environment.

TRICONEX 3503E

Technical Specifications

Main Features and Advantages

The TRICONEX 3503E is defined by its Triple Modular Redundant (TMR) architecture. This is its most significant feature: three independent input circuits per channel continuously monitor the field signal. A dedicated microprocessor on the module performs hardware-based voting to determine the correct state, ensuring continuous operation even if a fault occurs in one of the three circuits. This provides an exceptional level of fault tolerance and hardware availability, eliminating single points of failure that are common in simplex or dual-redundant systems.

Comprehensive diagnostics are another cornerstone of the TRICONEX 3503E. The module continuously monitors itself for internal faults such as processor failures, memory errors, and communication errors. Furthermore, it provides advanced field wire diagnostics. It can detect open circuit conditions (broken wire) and, in certain configurations, even short circuits on the field wiring, reporting these faults directly to the main processor for immediate operator alerting. This proactive maintenance capability significantly reduces troubleshooting time and enhances overall system safety and reliability.

Flexibility and ease of use are also key advantages. The TRICONEX 3503E supports both sinking and sourcing field wiring configurations, offering installation flexibility to match existing plant standards. It features a high-density 8-channel design, optimizing the use of rack space. The module is fully hot-swappable, allowing for removal and insertion without powering down the entire safety system, which is a critical requirement for minimizing downtime during maintenance in continuous process industries. The combination of TMR reliability, extensive diagnostics, and maintainability makes the TRICONEX 3503E an industry benchmark for safety system input modules.

TRICONEX 3503E

Application Field

The TRICONEX 3503E is predominantly deployed in Safety Instrumented Systems (SIS) across highly hazardous process industries where system failure could have catastrophic consequences. In the oil and gas sector, the TRICONEX 3503E is integral to Emergency Shutdown (ESD) systems on offshore platforms and onshore refineries. It monitors critical shutdown valves, pressure safety high (PSH) and low (PSL) switches, and fire and gas detection sensors, ensuring that the process can be safely and rapidly isolated in an emergency.

Within petrochemical and chemical plants, this module is used in Burner Management Systems (BMS) to verify flame status, fuel pressure, and other permissive conditions for furnace operation. It also forms the front line of defense in reactor overpressure and overtemperature protection systems. The high integrity of the TRICONEX 3503E ensures that these vital safeguards function exactly as designed.

In power generation, particularly in nuclear and combined-cycle gas turbines, the TRICONEX 3503E module is employed in critical turbine trip systems and other auxiliary protection systems. Its TMR architecture and SIL 3 certification make it the preferred choice for these applications where reliability is paramount. Essentially, the TRICONEX 3503E is the trusted eyes of the safety system in any application where failure is not an option.

Related Products

TRICONEX 3504E: The companion TMR digital output module, used to actuate final elements like shutdown valves based on the logic processed from inputs like the 3503E.

TRICONEX 3664: A communication module that interfaces the Tricon controller with external systems like a DCS.

TRICONEX 4351B: The main TMR processor module for the Tricon V9 system, which executes the safety logic using input data from the 3503E.

TRICONEX 3508E: A TMR analog input module, used for reading 4-20mA signals from transmitters.

TRICONEX 8312: A power supply module for the Tricon system, providing redundant power to all modules including the 3503E.

TRICONEX 3625: A TMR analog output module for controlling analog field devices.

TRICONEX 3506E: A TMR digital input module designed for different voltage ranges or specific diagnostic requirements.
