Description

The TRICONEX 3511is a critical 24V DC Digital Input Module integral to the renowned Triconex Tricon Safety Instrumented System (SIS). Manufactured by Triconex, now under Schneider Electric, this module serves as the primary interface for connecting field devices like emergency stop buttons, pressure switches, and level switches to the high-integrity Tricon controller. Its core function is to reliably read the on/off (discrete) status signals from these critical safety devices and transmit them to the main processing system for logic solving. The TRICONEX 3511is a fundamental building block within the Tricon platform, designed specifically for applications demanding the highest levels of safety, availability, and reliability, such as Emergency Shutdown Systems (ESD) and Fire and Gas Systems (F&G).Operating on the principle of Triple Modular Redundancy (TMR), the TRICONEX 3511incorporates three independent input circuits that simultaneously read the same field signal. This advanced architecture is the key to its exceptional fault tolerance. The module’s internal diagnostics and the main processor continuously compare the results from all three channels. If a discrepancy is detected, the system can mask the faulty channel and continue safe operation without initiating a spurious trip, thereby ensuring process availability while maintaining safety integrity. The robust design of the TRICONEX 3511makes it suitable for deployment in some of the world’s most challenging industrial environments, including oil and gas platforms, chemical plants, and power generation facilities.

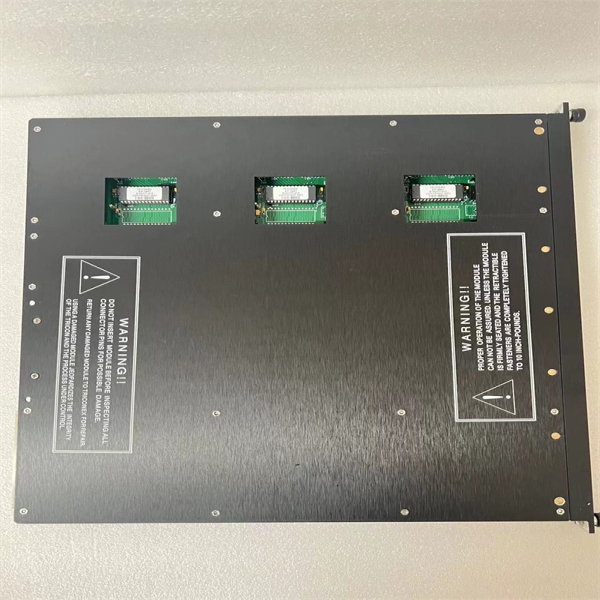

Triconex 3511

Technical Specifications

Main Features and Advantages

Uncompromising Safety with TMR Architecture: The defining feature of the TRICONEX 3511is its Triple Modular Redundancy. Each of the 16 input points consists of three isolated circuits working in parallel. This design ensures that no single point of failure within the module can cause a loss of the safety function. It provides high hardware fault tolerance, making the TRICONEX 3511capable of meeting Safety Integrity Level (SIL) 3 requirements as per IEC 61508/61511 standards. This redundancy is crucial for preventing both dangerous failures and costly nuisance trips.Advanced Diagnostic Capabilities: The module incorporates extensive on-board diagnostics that continuously monitor the health of its internal components and the field wiring connected to it. It can detect faults such as field wire breaks, short circuits, and internal circuit failures. These diagnostics provide early warning of potential issues, allowing for planned maintenance and increasing the overall system availability. The TRICONEX 3511communicates this diagnostic information to the main processor, enabling comprehensive system health reporting and predictive maintenance strategies.High Flexibility and Easy Integration: The TRICONEX 3511offers flexible configuration options, supporting both sinking and sourcing field devices. It can interface with a wide range of contact types, including mechanical switches and solid-state devices. This versatility simplifies system design and integration. Furthermore, the module is designed for hot-swappable replacement in supported Tricon chassis, allowing for maintenance and module exchange without the need for a full system shutdown, which is a significant advantage for continuous process industries.

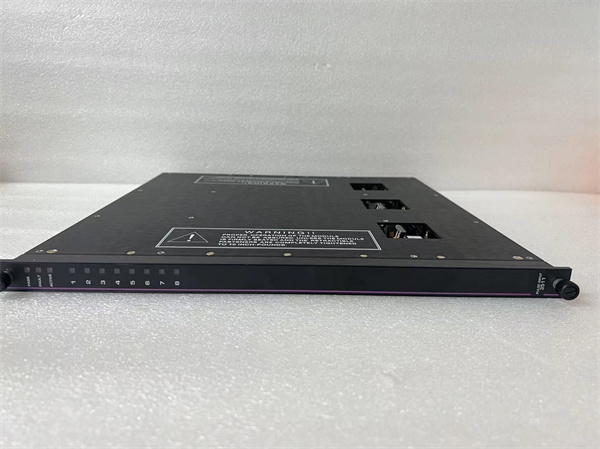

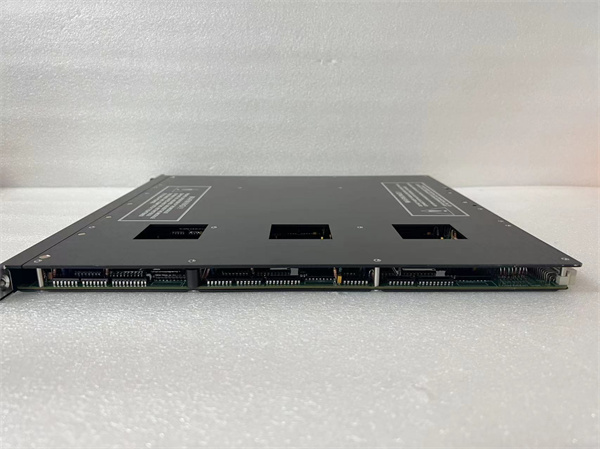

Triconex 3511

Application Field

The TRICONEX 3511is deployed in critical safety applications across a wide range of industries where process interruptions or failures can lead to severe safety, environmental, or economic consequences. In the oil and gas sector, it is the input module of choice for Emergency Shutdown (ESD) systems on offshore platforms, pipelines, and refineries, where it monitors inputs from emergency stop stations, high-pressure switches, and fire detection systems. In the petrochemical and chemical industries, the TRICONEX 3511forms the front line of safety in Fire and Gas (F&G) systems and Burner Management Systems (BMS), receiving signals from gas detectors, flame scanners, and temperature switches to initiate critical shutdown sequences.The module is also fundamental in power generation, particularly in turbine protection systems for both combined-cycle and conventional power plants. Here, the TRICONEX 3511monitors vital parameters like overspeed, vibration, and lube oil pressure, ensuring the turbine is shut down safely before damage can occur. Its high reliability and diagnostic capabilities also make it suitable for other critical processes in pharmaceutical manufacturing, nuclear facilities, and any other application governed by rigorous functional safety standards that require a certified SIL 3 solution.

Related Products

• TRICONEX 3008: Analog Input Module. Used for reading 4-20mA signals from analog field devices, often used alongside the 3511in a complete SIS.
• TRICONEX 3503E: Main Processor. The brain of the Tricon system, which processes the input data from the TRICONEX 3511.
• TRICONEX 3805E: Digital Output Module. Used to execute the safety actions (e.g., close valves, shut down pumps) determined by the logic solver based on inputs from the 3511.
• TRICONEX 4351B: Power Supply. Provides redundant, conditioned power to the chassis and all modules, including the 3511.
• TRICONEX 3510: Another 24V DC Digital Input Module with a different channel count or specific characteristics, often considered an alternative.
• TRICONEX 3503R: Redundant Main Processor, working with the 3503E to provide controller redundancy for high availability systems using the 3511.
• TRICONEX 8312: Communication Module for interfacing with a DCS or other host systems, transmitting data from the 3511.
