Description

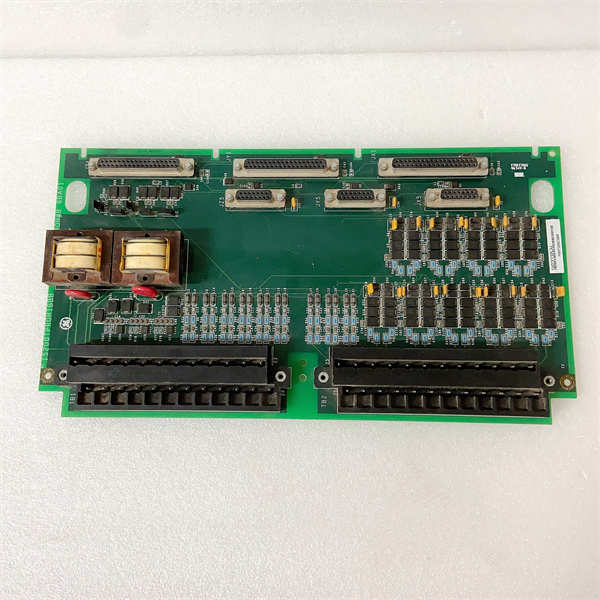

The GE IS200TPROH1BBB is a highly specialized Thermocouple Input Terminal Board designed as an integral component of the GE Mark VI Turbine Control System. This module serves as a critical interface for acquiring temperature signals from a wide array of thermocouples installed throughout a gas or steam turbine unit. Its primary function is to provide signal conditioning, isolation, and conversion for up to 16 thermocouple inputs, translating the low-level millivolt signals from the sensors into accurate, high-integrity digital data that the Mark VI controller can process. The GE IS200TPROH1BBB is engineered to deliver the precision and reliability necessary for both monitoring and protection functions, making it a first-line defense against equipment damage caused by overheating.

As a dedicated TPRO module within the Mark VI system, the GE IS200TPROH1BBB plays a vital role in the overall health assessment and safety of the turbine. It continuously monitors critical temperatures, such as bearing metal temperatures, exhaust gas temperatures, and blade path temperatures, enabling operators to maintain optimal operating conditions and efficiency. The value of the GE IS200TPROH1BBB lies in its robust design, which includes advanced noise filtering and high-quality signal conditioning circuits that ensure accurate readings even in the electrically noisy environment of a power plant. The reliable performance of the GE IS200TPROH1BBB is paramount for preventing catastrophic failures and enabling predictive maintenance strategies.

IS200TPROH1BBB GE

Technical Specifications

Main Features and Advantages

The GE IS200TPROH1BBB is distinguished by its multi-channel, high-density design, which allows for the consolidation of numerous temperature points onto a single module, thereby saving valuable rack space and simplifying system architecture. A key feature is its support for a wide range of thermocouple types on a per-channel basis, which can be configured via software. This flexibility makes the GE IS200TPROH1BBB incredibly versatile, capable of accommodating different sensor types across a unit without requiring hardware changes.

Superior signal integrity: The module incorporates advanced signal conditioning circuitry, including high-quality analog-to-digital converters and sophisticated digital filtering. This design effectively suppresses electromagnetic interference (EMI) and radio-frequency interference (RFI), which are common in industrial settings, ensuring that the temperature readings provided by the GE IS200TPROH1BBB are stable and accurate. Furthermore, it features integrated cold junction compensation (CJC) with high precision, which is critical for correcting the reference junction temperature and delivering a true measurement from the thermocouple. The built-in diagnostics of the GE IS200TPROH1BBB can detect sensor failures such as open circuits, providing immediate alerts to the control system to enhance operational safety and reduce troubleshooting time.

IS200TPROH1BBB GE

Application Field

The GE IS200TPROH1BBB is exclusively designed for critical temperature monitoring applications within the power generation industry, particularly in gas turbine and steam turbine power plants. It is a fundamental component of the turbine’s protection and monitoring system (TMS). Specific applications include monitoring bearing temperatures to prevent wipe-outs, measuring turbine exhaust gas temperature (TEGT) for performance calculation and control, and monitoring compressor discharge temperature. In steam turbines, it is used for critical bearing and steam chest temperature monitoring.

The role of the GE IS200TPROH1BBB extends beyond simple monitoring; its high-accuracy, high-integrity signals are directly used by the Mark VI controller to execute automatic turbine protection trips. For instance, if a bearing temperature monitored by the GE IS200TPROH1BBB exceeds a safe threshold, the controller will initiate a unit shutdown to prevent severe mechanical damage. This makes the GE IS200TPROH1BBB an indispensable component for ensuring the safe, reliable, and efficient operation of high-value rotating assets, ultimately protecting the utility’s investment and ensuring grid stability.

Related Products

GE IS200EPSMG1A – The Power Supply Module for the Mark VI rack, which provides regulated power to the IS200TPROH1BBB and other modules.

GE IS200RTDH1A – An RTD Input Terminal Board, used for measuring temperatures with Resistance Temperature Detectors, often deployed alongside the IS200TPROH1BBB.

GE IC693ALG392 – A generic analog input module, highlighting the specialized nature of the IS200TPROH1BBB for thermocouples.

GE IS215UCVEM09A – A VME Controller board for the Mark VI system, which processes the data from the IS200TPROH1BBB.

GE IS200TBAIH1CCC – A Terminal Board Assembly for excitation control, showing the diversity of I/O modules within the same Mark VI system.
