Description

The GE DS200DCFBG1BLC is a specialized printed circuit board module developed by General Electric as part of the Speedtronic Mark V turbine control system, widely deployed in gas and steam turbine applications across power generation, oil & gas, and industrial energy sectors. This board serves as the DC Field Bridge Interface Board (DCFB), playing a critical role in managing the excitation current supplied to the generator’s rotor field winding. By precisely regulating field voltage and current, the GE DS200DCFBG1BLC ensures stable generator synchronization, voltage control, and reactive power management during startup, load changes, and grid disturbances.

Integrated into the Mark V’s triple-modular redundant (TMR) architecture, the GE DS200DCFBG1BLC interfaces directly with the excitation power bridge and provides analog/digital feedback signals to the main control processors (e.g., DS200CPUTG1A). It supports high-noise immunity signal conditioning, isolated current sensing, and fault detection for overcurrent, loss of field, or thyristor failures. As a key enabler of generator protection and performance optimization, the GE DS200DCFBG1BLC is essential for maintaining compliance with grid codes and ensuring operational continuity in mission-critical power plants. Its robust design and rigorous qualification make it a trusted component in both new installations and legacy system upgrades worldwide.

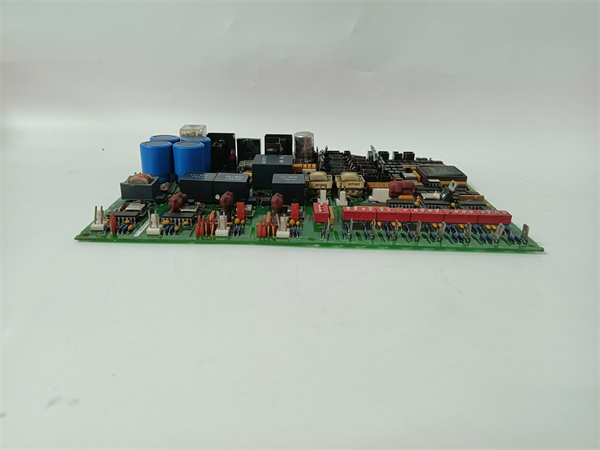

GE DS200DCFBG1BLC

Technical Specifications

Main Features and Advantages

High-Precision Field Monitoring:
The GE DS200DCFBG1BLC features precision analog circuitry for real-time measurement of generator field current and voltage, enabling closed-loop excitation control with minimal drift. This ensures accurate voltage regulation even under rapid load transients or grid faults.

Robust Thyristor Interface:
Equipped with optically isolated gate drive circuits, the GE DS200DCFBG1BLC reliably triggers the SCR (silicon-controlled rectifier) bridge in the excitation system while providing galvanic isolation to protect sensitive control electronics from high-voltage spikes.

Integrated Fault Diagnostics:
Onboard logic continuously monitors for critical conditions such as field ground faults, loss of excitation, or SCR misfiring. Upon detection, the GE DS200DCFBG1BLC asserts fault signals to the Mark V CPU, triggering alarms or protective shutdowns per ANSI/IEEE standards.

TMR-Compatible Redundancy:
Designed for use in GE’s triple-modular redundant Mark V architecture, the GE DS200DCFBG1BLC operates in sync with two other identical boards (one per core), allowing voting logic to isolate faults without interrupting turbine operation—maximizing availability in critical power applications.

Industrial-Grade Reliability:
Manufactured to GE’s stringent quality standards, the GE DS200DCFBG1BLC undergoes thermal cycling, vibration testing, and extended burn-in to ensure decades of service in harsh environments like combined-cycle plants or offshore platforms.

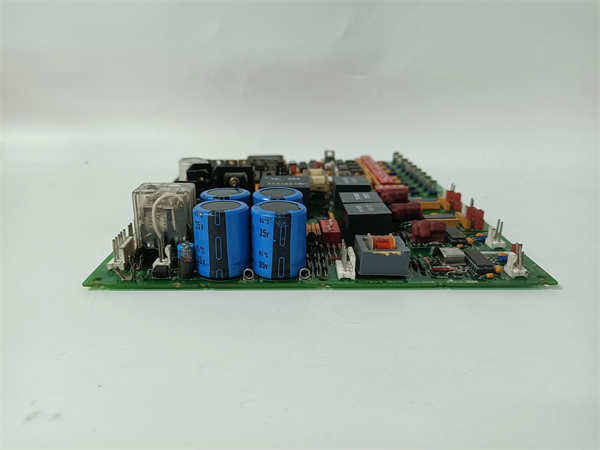

GE DS200DCFBG1BLC

Application Field

The GE DS200DCFBG1BLC is primarily deployed in gas turbine and steam turbine control systems based on the GE Speedtronic Mark V platform, which dominates global power generation infrastructure. In a combined-cycle power plant, it enables precise excitation control during black-start sequences and islanded operation, ensuring stable frequency and voltage when disconnected from the grid. In oil & gas cogeneration facilities, the GE DS200DCFBG1BLC supports fast load rejection responses to prevent generator overspeed during sudden process shutdowns. Similarly, in industrial captive power stations, it maintains power factor within contractual limits by dynamically adjusting reactive power output via field current modulation. The module is also critical during synchronization events, where it fine-tunes generator terminal voltage to match grid potential before breaker closure—preventing damaging inrush currents. Given its role in generator protection and grid compliance, the GE DS200DCFBG1BLC is indispensable in any application requiring high-reliability, utility-grade turbine control.

Related Products

DS200CPUTG1A: Mark V main processor board – coordinates all I/O modules including the DS200DCFBG1BLC.
DS200TBQBG1B: Terminal board for DCFB – provides field wiring interface and signal conditioning.
DS200SSRAG1A: Solid-state relay output board – often used alongside excitation control for breaker interlocks.
DS200SPCBG1A: Signal processing board – handles additional analog inputs for turbine monitoring.
DS200DMCBG1B: Digital master control board – manages sequencing and logic in coordination with DCFB.
DS200PCCAG1A: Power conversion card – supplies regulated voltages to I/O cores housing the DS200DCFBG1BLC.
DS200SLOTG1A: Slot terminator – required in unused Mark V chassis slots for signal integrity.
Mark VI / Mark VIe equivalents: Modern replacements (e.g., IC698CRE030) for plants upgrading from Mark V.
