Description

The GE DS200LDCCH1AGA is a critical printed circuit board module within General Electric’s Speedtronic Mark V turbine control system, specifically engineered for excitation (field) control in gas and steam turbine-driven generators. As part of the LDC (Low-Level DC Control) subsystem, this board serves as the primary interface between the Mark V’s central processors and the external excitation power bridge, enabling precise regulation of rotor field current to maintain generator terminal voltage, reactive power, and synchronization stability. The GE DS200LDCCH1AGA is commonly deployed in triple-modular redundant (TMR) configurations across the R, S, and T control cores of the Mark V architecture, ensuring continuous operation even during single-point hardware failures.

Functionally, the GE DS200LDCCH1AGA processes analog feedback signals from the excitation system—such as field voltage and current—and generates pulse-width modulated gate drive commands to thyristors or IGBTs in the power converter. It also implements critical protection functions, including loss-of-field detection, over-excitation limiting, and under-excitation limiting, all aligned with IEEE and ANSI standards for generator protection. By integrating high-precision signal conditioning, optical isolation, and real-time diagnostics, the GE DS200LDCCH1AGA ensures robust performance in electrically noisy power plant environments. Its role is indispensable in applications demanding grid compliance, black-start capability, and rapid load response—making it a cornerstone of reliable power generation infrastructure worldwide.

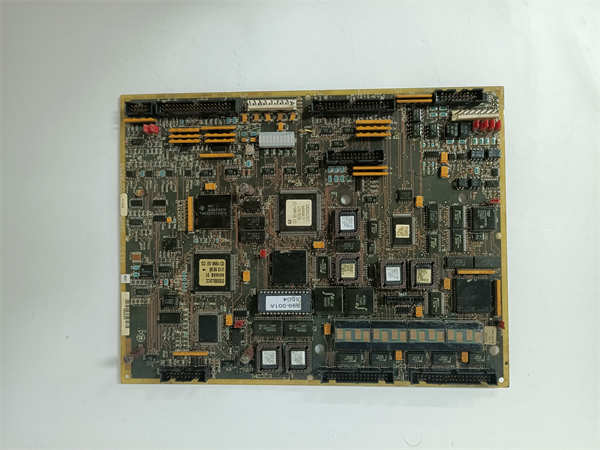

GE DS200LDCCH1AGA

Technical Specifications

Main Features and Advantages

Precision Excitation Control:
The GE DS200LDCCH1AGA delivers microsecond-level response to field current demands, enabling tight voltage regulation during grid disturbances or rapid load changes. Its high-resolution analog-to-digital converters ensure minimal steady-state error in excitation output.

Integrated Protection Logic:
Onboard firmware implements ANSI 40 (Loss of Field), 59 (Overvoltage), and other generator protection functions directly on the board, reducing reliance on external relays and accelerating trip response times. This enhances overall system safety and compliance.

Optical Isolation & Noise Immunity:
All high-voltage interfaces on the GE DS200LDCCH1AGA are optically isolated, preventing ground loops and shielding sensitive control circuits from EMI generated by the excitation bridge—critical in high-power industrial settings.

TMR Redundancy Support:
Designed for GE’s triple-modular redundant Mark V architecture, the GE DS200LDCCH1AGA operates in parallel across three independent control cores. Voting logic compares outputs in real time, automatically isolating faulty channels without turbine shutdown.

Field-Proven Reliability:
Manufactured under GE’s rigorous quality management system, the GE DS200LDCCH1AGA undergoes thermal stress screening and extended burn-in testing to ensure decades of service in mission-critical power plants, offshore platforms, and district energy systems.

Application Field

The GE DS200LDCCH1AGA is predominantly used in utility-scale and industrial power generation facilities operating GE-designed gas turbines (e.g., Frame 6B, 7EA, 9E) or steam turbines under the Speedtronic Mark V control platform. In a peaker plant, it enables rapid voltage buildup during black-start sequences, allowing the generator to energize the local grid within minutes. In combined-cycle configurations, the GE DS200LDCCH1AGA coordinates with the DCS to maintain power factor at optimal levels during part-load operation, minimizing reactive power penalties. In oil & gas LNG export terminals, where uninterrupted power is vital for cryogenic processes, the module’s redundancy ensures excitation continuity during maintenance or component failure. Additionally, during grid code compliance tests, the GE DS200LDCCH1AGA supports low-voltage ride-through (LVRT) by dynamically boosting field current to sustain terminal voltage during sags. Its versatility and reliability make it essential for any facility requiring precise, fail-safe generator excitation control.

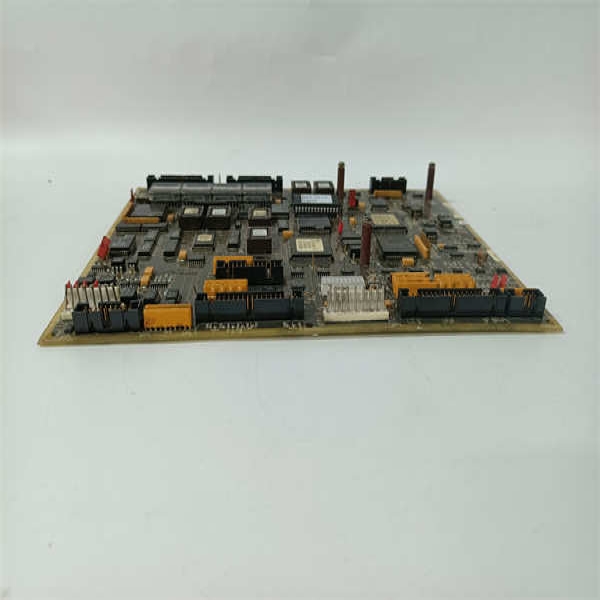

GE DS200LDCCH1AGA

Related Products

DS200CPUTG1A: Mark V main CPU board – issues excitation setpoints to the DS200LDCCH1AGA.
DS200TBQBG1B: Terminal board for LDC – provides field wiring interface and signal filtering.
DS200DCFBG1BLC: DC Field Bridge board – works in tandem with LDC for full excitation loop control.
DS200PCCAG1A: Power conversion card – supplies regulated voltages to the LDC slot.
DS200SSRAG1A: Solid-state relay board – often used for excitation breaker interlock logic.
DS200DMCBG1B: Digital Master Control board – manages sequencing that triggers LDC activation.
Mark VIe IC698EX series*: Modern excitation controllers for plants upgrading from Mark V.
DS200SLOTG1A: Slot terminator – required for signal integrity in unused Mark V chassis slots.
