Description

The TRICONEX PI3381 is a redundant power input module designed for the Tricon® Triple Modular Redundant (TMR) Safety Instrumented System (SIS) by Schneider Electric (formerly Invensys Triconex). As a foundational component of Tricon’s fault-tolerant architecture, the PI3381 provides three independent, isolated +24VDC power inputs to the Tricon chassis—enabling true triple-redundant power delivery that aligns with the system’s overall TMR design philosophy.

Unlike conventional power supplies, the PI3381 does not generate power but acts as an intelligent power distribution and monitoring interface. It accepts three external +24VDC sources (typically from redundant DIN-rail power supplies) and routes them to the three independent power rails inside the Tricon main chassis—one for each of the three main processor legs (MPUs). This ensures that even if one or two power feeds fail, the Tricon system continues to operate without interruption, maintaining safety-critical functions such as emergency shutdown (ESD), fire & gas detection, or turbine overspeed protection.

The PI3381 features front-panel LEDs that indicate the status of each power input (OK/FAULT), supports hot-swap replacement, and communicates real-time power health data to the Tricon diagnostic software (e.g., TriStation 1131). Its robust design meets stringent industrial standards for electromagnetic compatibility (EMC), surge immunity, and thermal performance.

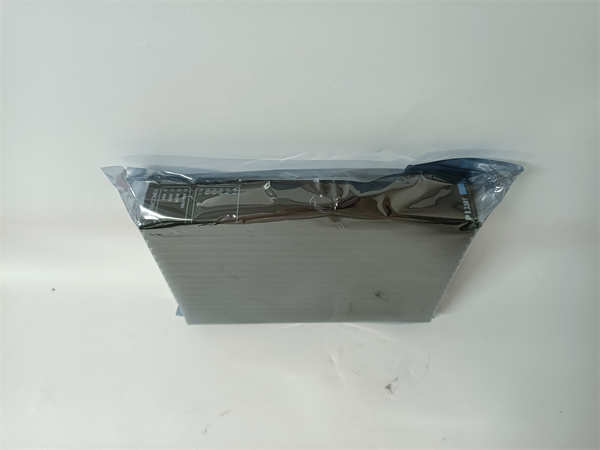

TRICONEX PI3381

Technical Specifications

Parameter Name	Parameter Value
Model Number	PI3381
Manufacturer	Triconex (Schneider Electric)
Product Type	Triple-Redundant Power Input Module
Compatible Systems	Tricon v9, v10, v11 (MP, XP, and ESD chassis)
Function	Distributes three independent +24VDC inputs to TMR power rails
Input Voltage Range	+24VDC nominal (18–32VDC operational)
Input Channels	3 isolated channels (A, B, C)
Output	Direct connection to internal Tricon MPU power buses
Redundancy Architecture	Triple Modular Redundancy (TMR) – supports 2oo3 voting
Hot-Swap Capable	Yes
Indicators	3x Green LEDs (Power OK per channel), 1x Red LED (Module Fault)
Mounting	Front slot in Tricon main chassis (backplane-connected)
Operating Temperature	0°C to +60°C
Certifications	IEC 61508 SIL3, IEC 61511, FM, CSA, ATEX (for hazardous areas when installed in certified enclosures)
MTBF	>150,000 hours

Main Features and Advantages

✅ True TMR Power Redundancy:
Each of the three Tricon processor legs receives power from a physically and electrically isolated source via the PI3381, eliminating single-point failure risks—even during power supply or wiring faults.

✅ Real-Time Diagnostics:
Continuous monitoring of input voltage levels and fuse status. Faults are logged in the Tricon event history and can trigger alarms in DCS or HMI systems.

✅ Hot-Swappable Design:
The PI3381 can be replaced during live operation without shutting down the safety system—critical for continuous processes like refineries or LNG trains.

✅ Seamless Integration:
No configuration required. The module auto-syncs with the Tricon chassis and is recognized instantly in TriStation 1131 engineering software.

✅ Safety-Certified Reliability:
Designed and tested to meet SIL3 requirements per IEC 61508, making it suitable for the most demanding safety applications (e.g., reactor shutdown, pipeline rupture protection).

Application Field

The TRICONEX PI3381 is deployed globally in high-hazard process industries where functional safety is non-negotiable:

Oil & Gas: Offshore platforms, onshore terminals, pipeline compressor stations (ESD & F&G systems)
Petrochemical & Refining: Crude units, FCCUs, hydrocrackers (reactor trip, pressure relief)
Chemical Plants: Handling toxic or explosive materials (batch abort, containment)
Power Generation: Nuclear auxiliary safety systems, gas turbine protection
Pharmaceutical: High-potency compound handling with automated containment interlocks

In all cases, the PI3381 ensures that the Tricon SIS remains powered and operational—even under extreme fault conditions.

Installation and Maintenance

Installation Best Practices:

InstallPI3381 in Slot 0 of the Tricon main chassis.
Connect three independent +24VDC sources (from separate power supplies or redundant outputs) to terminals A, B, and C.
Use shielded, twisted-pair cables and proper grounding to minimize noise.
Verify all three “Power OK” LEDs illuminate green after energizing.

Maintenance Recommendations:

During routine checks, confirm no red fault LED is lit.
Review power event logs in TriStation for undervoltage or transient events.
Replace external power supplies proactively based on MTBF data.
Keep a tested sparePI3381 on-site—replacement takes<5>
