Description

The ABB SB510 3BSE000860R1 is a critical system bus interface module designed for the ABB AC 800M programmable automation controller platform. It serves as the backbone for expanding I/O capacity beyond the local rack, enabling seamless communication between the central CPU and remote or additional I/O stations via the proprietary AC 800M system bus. The ABB SB510 3BSE000860R1 is not a fieldbus or serial communication card; rather, it functions as an internal high-speed backplane extender that maintains deterministic data exchange across multiple physical racks—essential for large-scale process control applications requiring hundreds or thousands of I/O points.

Positioned within ABB’s modular I/O architecture, the ABB SB510 3BSE000860R1 works in conjunction with terminal bases (such as TB511) and compatible I/O modules to form extended chassis configurations. It ensures synchronized scanning, low-latency data transfer, and full diagnostic visibility within System 800xA and Control Builder M engineering environments. By leveraging the ABB SB510 3BSE000860R1, engineers can distribute I/O closer to field devices—reducing wiring costs and improving signal integrity—while retaining centralized control logic execution on the AC 800M CPU. This makes the ABB SB510 3BSE000860R1 indispensable in power plants, mining operations, and heavy industrial facilities where scalability and reliability are non-negotiable.

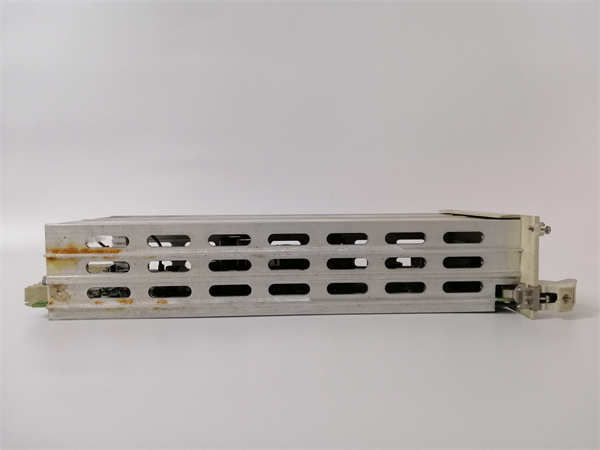

ABB SB510 3BSE000860R1

Technical Specifications

Main Features and Advantages

Seamless multi-rack expansion for large-scale systems:
The ABB SB510 3BSE000860R1 enables the AC 800M controller to manage I/O across multiple physical racks as if they were part of a single logical unit. This eliminates the need for external network gateways or protocol translation, preserving scan cycle determinism and simplifying engineering. In applications like boiler control or mineral processing lines, this allows I/O to be distributed near motors, sensors, and valves while maintaining centralized logic execution.

Native integration with System 800xA and Control Builder M:
Unlike third-party expansion solutions, the ABB SB510 3BSE000860R1 is fully recognized during hardware configuration in Control Builder M. Engineers can drag-and-drop remote racks into the project tree, assign I/O modules, and monitor real-time diagnostics—including bus errors, module status, and communication health—without custom drivers or configuration scripts.

Robust industrial-grade connectivity:
Designed for harsh environments, the ABB SB510 3BSE000860R1 features 500 VAC galvanic isolation and complies with stringent EMC standards (IEC 61000-6-2/4). Its ruggedized backplane interface resists vibration, temperature cycling, and electrical noise—common challenges in steel mills, cement plants, and offshore platforms. This ensures long-term reliability even under continuous operation.

Support for redundant and high-availability architectures:
When used in redundant AC 800M configurations (e.g., dual PM864 CPUs), the ABB SB510 3BSE000860R1 supports synchronized bus communication, allowing failover without loss of I/O data. This is critical for safety-critical processes in power generation or chemical manufacturing where unplanned downtime carries significant risk.

Optimized for cost-effective wiring and maintenance:
By enabling local I/O placement, the ABB SB510 3BSE000860R1 drastically reduces the length and complexity of field wiring runs. Technicians benefit from modular troubleshooting—each rack can be diagnosed independently via System 800xA—accelerating fault resolution and minimizing mean time to repair (MTTR).

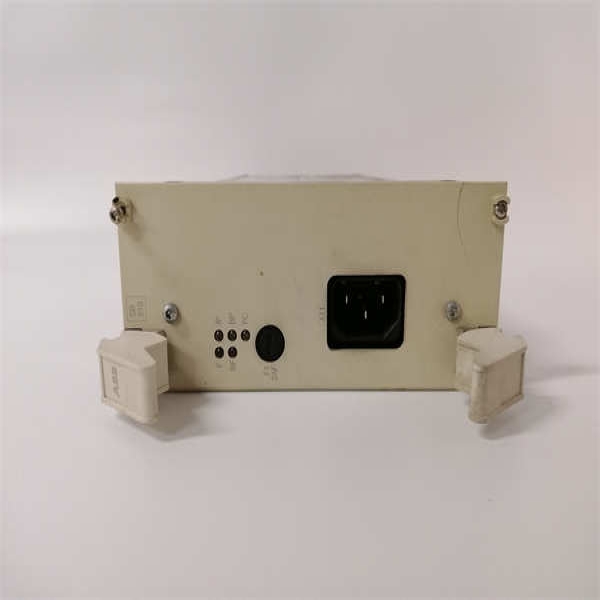

ABB SB510 3BSE000860R1

Application Field

The ABB SB510 3BSE000860R1 is widely deployed in capital-intensive industries where system scale, reliability, and maintainability dictate control architecture design. In thermal and nuclear power stations, the ABB SB510 3BSE000860R1 connects turbine hall I/O, boiler controls, and auxiliary systems spread across multiple cabinets to a central AC 800M controller, ensuring coordinated operation during startup, load changes, and emergency shutdowns. In mining and mineral processing plants, it enables distributed control of crushers, conveyors, and flotation cells—each with localized I/O racks—while maintaining a unified control strategy from the main PLC.

In large chemical and petrochemical complexes, the ABB SB510 3BSE000860R1 supports zone-based safety and process control by allowing I/O segregation per hazardous area while keeping logic centralized. This simplifies compliance with functional safety standards (e.g., IEC 61511) and reduces cross-zone wiring hazards. For water and wastewater utilities managing geographically dispersed pump stations, the ABB SB510 3BSE000860R1 provides a deterministic alternative to Ethernet-based remote I/O where latency or cybersecurity concerns preclude IP networks. Across all these applications, the ABB SB510 3BSE000860R1 delivers the structural foundation for scalable, future-proof automation systems that balance performance, cost, and operational resilience.

Related Products

• ABB PM864 3BSE032440R1: AC 800M CPU controller commonly used withSB510 3BSE000860R1 for system expansion

• ABB TB511 3BSE002541R1: Required terminal base for mounting and wiring theSB510 3BSE000860R1

• ABB CI854A 3BSE032460R1: PROFIBUS DP slave module often installed in remote racks connected viaSB510 3BSE000860R1

• ABB MB510 3BSE002540R1: PROFIBUS DP master module typically hosted in the main CPU rack alongsideSB510 3BSE000860R1

• ABB TK801V 3BSE032445R1: Ethernet communication module used in parallel withSB510 3BSE000860R1 for hybrid architectures

• ABB DI810 3BSE000850R1: Digital input module frequently deployed in extended I/O racks enabled bySB510 3BSE000860R1
