In Stock HAWE HRP 7 V Hydraulic Pilot Operated Check Valve Non-Return Valve Germany Original

Stock item - brand new and in stock (库存现货 / 现货), ships within 3-5 days after payment.

The HAWE HRP 7 V is a check valve with hydraulic release (hydraulisch gesteuertes Rückschlagventil) of HAWE Hydraulik SE, Munich - size 7 of the HRP manifold-mounting family, in the pre-release (V) version that suppresses decompression surges in high-pressure, high-volume circuits. In the closed state the spring-loaded poppet seals leak-free, locking one or both hydraulic consumer lines; when control pressure is applied at port Z the valve opens and free flow is allowed in the reverse direction. The leakage port L depressurizes the rear side of the actuation piston, so the release behaviour stays independent of return-line pressure - and with a flange-mounted solenoid valve the valve can also be released by the load pressure on the consumer side.

Data (per HAWE catalogue D 5116):

• Type: HRP 7 V - check valve with hydraulic release, pre-release version

• Size: 7 | Max flow Qmax: 400 l/min | Max operating pressure pmax: 500 bar

• Release ratio pA/pZ: 3.0 | Dimensions: L 190 x B 100 x H 63 mm

• Ports: A, B = consumer | Z = control | L = leakage

• Construction: manifold-mounting (sandwich plate) valve, spring-loaded, leak-free in closed state; steel body, gas-nitrided; hardened and ground poppet

• Pressure medium: hydraulic oil DIN 51524 part 1-3, ISO VG 10-68; viscosity 4 - 1500 mm²/s (optimal 10 - 500)

• Temperature: ambient -40 to +80 °C, oil -25 to +80 °C | Mounting position: any

• Brand: HAWE Hydraulik SE (Germany) | Condition: Brand New, Original | Stock: 库存现货, in stock

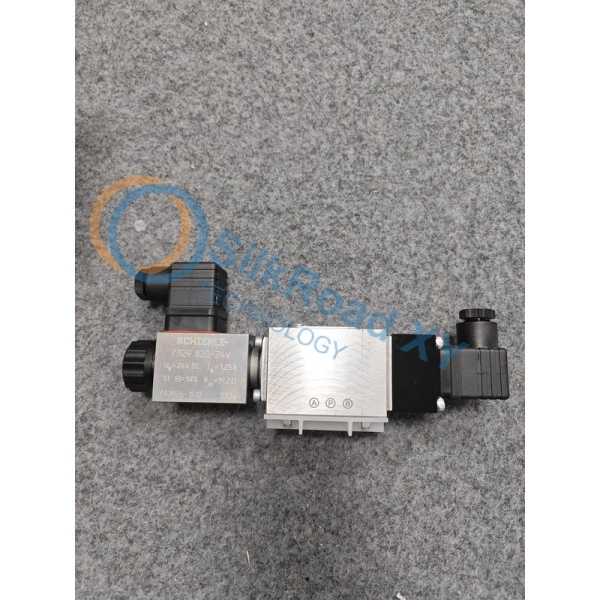

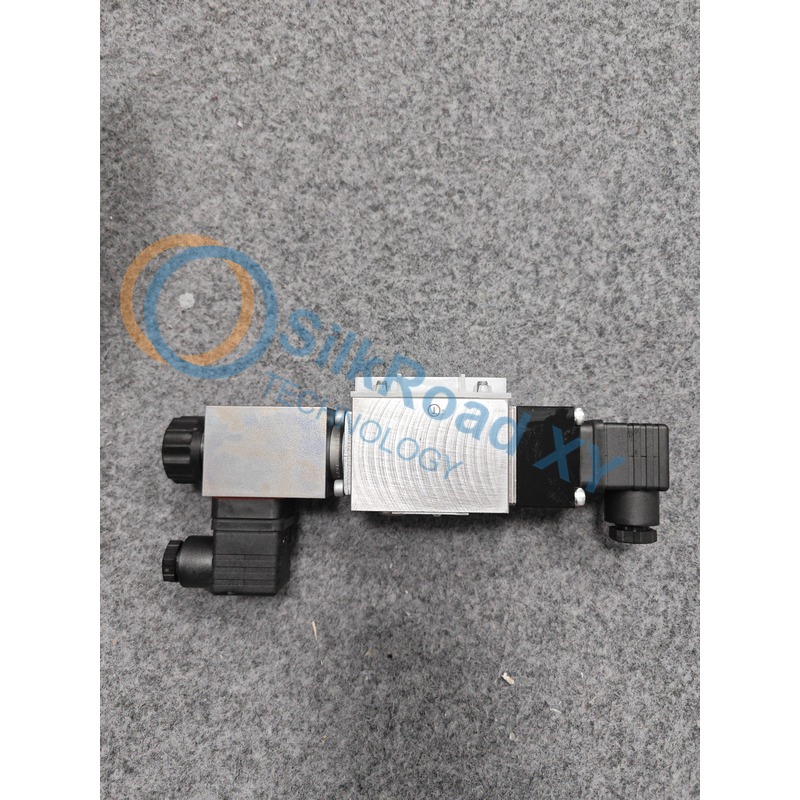

Product photos shown are for reference; the actual item may differ slightly.

Applications: industrial hydraulics and mobile machinery - press and clamping circuits with leaking directional valves, load-holding on cylinders and accumulators, hydraulically actuated drain or idle-circulation functions. The whole HRP size range (HRP 1 to HRP 7 V, HRPD 3 V) plus solenoid-release variants (e.g. HRP 5 - WH1 - G24) is available on request - send the full type code and we will confirm stock.

Lead Time: IN STOCK, 3-5 days after payment
Delivery: FedEx, SF Express, EMS
Condition: In Stock, Brand New
Payment Method: T/T, 30% deposit, 70% balance of payment
Price: Please contact us for further inquiry. All quotes are based on EXW excluding tax.
Remark: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
