Description

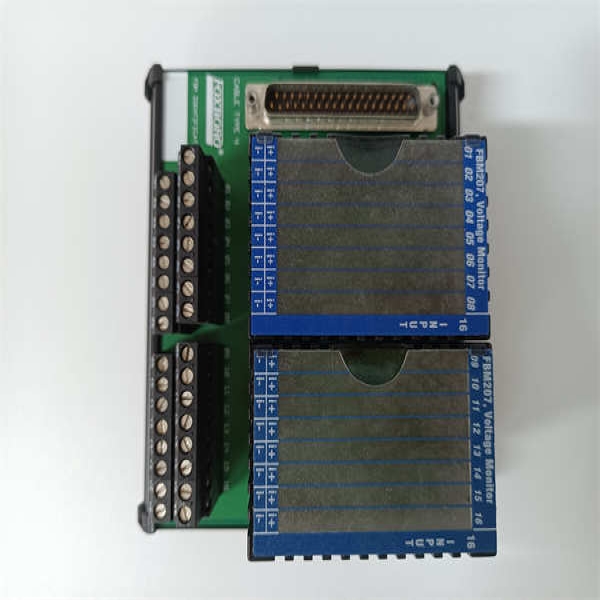

The FOXBORO P0916PH P0916AL is not a standalone electronic module but a critical mechanical and electrical interface assembly—specifically, the I/O termination base designed for use with FOXBORO’s FBM207 family of I/O packs in the I/A Series Distributed Control System (DCS). This base provides the physical mounting platform, field wiring terminals, fuse protection, and backplane connectivity required for modules such as the FBM224 (digital input), FBM227 (digital output), and FBM242 (analog input). The FOXBORO P0916PH P0916AL ensures secure, reliable signal transition between field devices (sensors, switches, actuators) and the intelligent I/O modules that process them.

As part of FOXBORO’s modular I/O architecture, the FOXBORO P0916PH P0916AL enables hot-swappable module replacement without disturbing field wiring—a key advantage in continuous-process industries. Its robust design includes clearly labeled terminal blocks, replaceable fuses per channel group, and an integrated LED viewing window that allows operators to monitor module status indicators without removing the cover. The FOXBORO P0916PH P0916AL is engineered for high-density panel mounting and complies with global safety standards, making it indispensable for maintaining system integrity in mission-critical applications across energy, water, and heavy industry sectors.

FOXBORO P0916PH P0916AL

Technical Specifications

Main Features and Advantages

Integrated Fuse Protection and Safe Maintenance:
The FOXBORO P0916PH P0916AL incorporates dual fuse slots that protect both power and signal circuits from overcurrent conditions—critical when interfacing with inductive loads or long cable runs prone to short circuits. Fuses are accessible from the front without tools, enabling quick replacement during maintenance windows while keeping the I/O module securely seated.

Hot-Swappable Design for Zero Downtime:
Engineered for FOXBORO’s plug-in I/O philosophy, the FOXBORO P0916PH P0916AL allows technicians to remove or insert FBM modules without disconnecting field wires or powering down the entire rack. This feature drastically reduces mean time to repair (MTTR) in 24/7 operations like power generation or chemical processing, where unplanned outages carry significant financial and safety risks.

Clear Visual Diagnostics and Labeling:

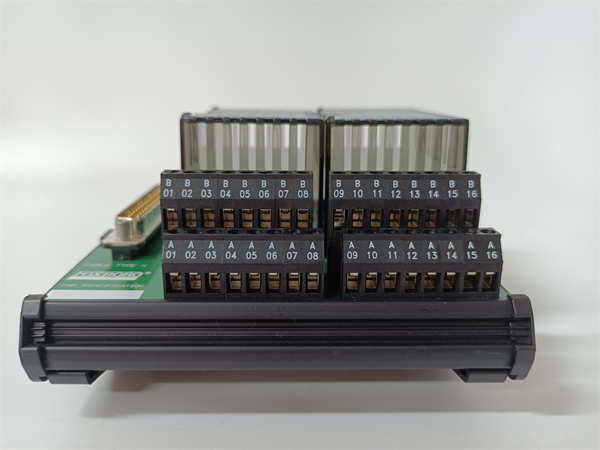

The transparent front cover of the FOXBORO P0916PH P0916AL provides unobstructed visibility of the I/O module’s status LEDs—essential for rapid troubleshooting during commissioning or alarm response. Additionally, the base includes a removable labeling strip where engineers can annotate channel functions (e.g., “PUMP-101 RUN FB”), improving documentation accuracy and reducing wiring errors.

Robust Mechanical and Electrical Integrity:
Constructed from high-grade, flame-retardant plastic with precision-molded terminals, the FOXBORO P0916PH P0916AL withstands vibration, thermal cycling, and corrosive atmospheres. Its gold-plated backplane connector ensures low-resistance, oxidation-resistant contact with the I/O chassis, guaranteeing signal fidelity over decades of service.

FOXBORO P0916PH P0916AL

Application Field

The FOXBORO P0916PH P0916AL is foundational in any facility running the FOXBORO I/A Series DCS, particularly in brownfield sites where system longevity exceeds 20 years. In fossil fuel and combined-cycle power plants, it serves as the wiring interface for turbine trip signals, boiler flame detection, and generator breaker status—feeding data to FBM224 digital input modules for real-time control logic execution. In oil refineries and petrochemical complexes, the FOXBORO P0916PH P0916AL terminates signals from emergency shutdown (ESD) pushbuttons, pressure switch alarms, and valve position feedback, ensuring SIL-compliant safety responses.

In municipal water and wastewater treatment facilities, this termination base connects level switches, pump run contacts, and chlorine leak detectors to the control system, enabling remote SCADA monitoring without rewiring legacy panels. It is also extensively used in pulp & paper mills and mining operations, where electrical noise and harsh environments demand rugged, reliable I/O interfaces. Because the FOXBORO P0916PH P0916AL decouples field wiring from electronics, it simplifies upgrades—allowing newer I/O modules to be deployed on existing bases during partial modernization projects, preserving capital investment while enhancing functionality.

Related Products

FBM224: 16-channel wetted digital input module—requires P0916PH P0916AL for field termination and fuse protection.
FBM227: 16-channel digital output module—mounts directly onto P0916PH P0916AL for relay/solenoid driving.
FBM242: 8-channel analog input module (4–20 mA)—uses the same base for temperature, pressure, and flow signal acquisition.
P0916NA: Blank filler plate—used to cover unused slots in I/O chassis for dust and EMI protection.
P0926GG: Alternate ordering code sometimes associated with complete FBM224 + base kits—verify configuration before ordering.
I/A Series CP60 Controller: Central processing unit that communicates with I/O modules mounted on P0916PH P0916AL bases via FCC cards.
FCC (Fieldbus Communication Card): Bridges I/O packs on P0916PH P0916AL bases to the controller backplane—essential for data exchange.
