Description

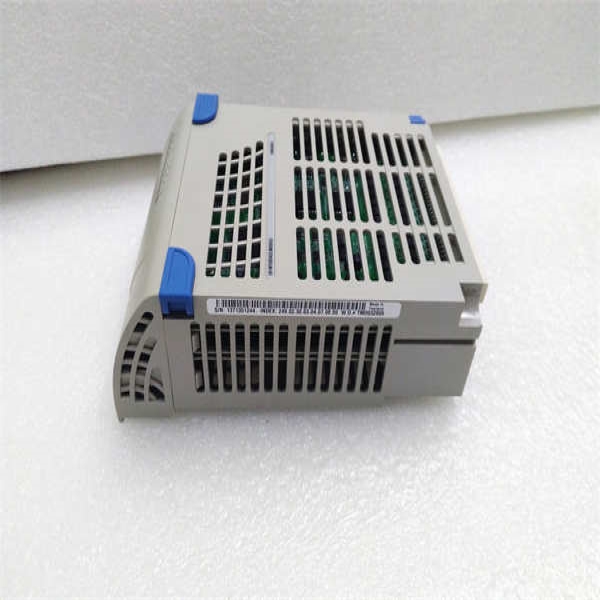

The WESTINGHOUSE 5X00226G02 is a high-availability dual-redundant communication interface module designed for Emerson’s Ovation DCS, serving as a critical gateway between legacy Westinghouse WDPF systems and modern Ovation networks. Engineered for seamless data integration, this module enables bi-directional exchange of process variables, alarms, and control commands across heterogeneous systems without requiring plant shutdowns. The 5X00226G02 utilizes active-active redundancy with automatic failover (<50ms>

Featuring ruggedized industrial design, the module operates in -40°C to 70°C environments with 95% humidity tolerance – suitable for switchgear rooms and outdoor substations. The WESTINGHOUSE 5X00226G02 supports real-time diagnostics through Ovation Health Manager, monitoring link integrity, data latency, and CPU load. Hot-swappable components allow field replacement during live operations, while integrated cybersecurity features (TLS 1.3 encryption, role-based access) protect against unauthorized access to critical infrastructure.

Technical Specifications

Main Features and Advantages

Seamless System Integration: The WESTINGHOUSE 5X00226G02 translates WDPF block transfers into modern OPC UA data structures, enabling real-time sharing of turbine control parameters, valve positions, and analog readings between legacy and modern systems without custom coding.

Fault-Tolerant Architecture: Dual hot-swappable power supplies and synchronized processors eliminate single points of failure. Automatic data synchronization across redundant modules ensures zero data loss during switchovers in critical applications like boiler protection.

Cybersecurity Hardening: Hardware-enforced secure boot with cryptographic signature validation prevents firmware tampering. Role-based access control integrates with Active Directory, while encrypted event logging supports NERC CIP compliance audits.

Advanced Diagnostics: Real-time monitoring of link utilization, packet error rates, and protocol conversion efficiency. Front-end LEDs and Ovation Health Manager provide predictive failure alerts for power supplies, cooling fans, and memory modules.

Legacy Optimization: Supports vintage WDPF I/O cards (e.g., 5X00001 series) and preserves proprietary alarm handling logic during migration. Configuration templates accelerate deployment by 70% compared to custom gateways.

Application Field

The WESTINGHOUSE 5X00226G02 enables phased digital transformation in critical infrastructure:

Power Generation: Integrates legacy turbine controls (WDPF) with modern Ovation DCS for combined-cycle plants, enabling unified load dispatch and performance monitoring

Water Utilities: Bridges SCADA systems between water treatment plants (Ovation) and pumping stations (WDPF) for real-time flow optimization

Oil & Gas: Synchronizes compressor control data across pipeline SCADA systems during WDPF-to-Ovation migration

Industrial Manufacturing: Connects legacy batch reactors (WDPF) to plant-wide MES systems via OPC UA

Metals Processing: Unifies blast furnace controls across heterogeneous systems for energy management optimization

Related Products

5X00498G01 – Ovation Network Interface Module for 5X00226G02 integration

5X00001H02 – Legacy WDPF I/O module supported by the gateway

5X00350G01 – Redundant power supply for communication racks

5X00562G01 – Ovation cybersecurity appliance for network segmentation

5X00227G01 – Advanced protocol converter with Profinet support

5X00497G01 – Ovation controller processing gateway data

5X00115G01 – WDPF communication processor for legacy side integration

5X00571G01 – Time synchronization server for cross-network alignment

Installation and Maintenance

Pre-installation preparation: Verify WDPF system compatibility (Revision 4.2+ required). Pre-load configuration templates in Ovation Developer Studio. Install ferrite cores on all Ethernet cables within 3m of VFDs. Ensure separate grounded conduits for legacy and modern network cables.

Maintenance recommendations: Monitor synchronization status monthly via Ovation Health Manager. Replace cooling fans every 5 years or if noise >45dB. Perform annual failover tests during planned outages. Update TLS certificates quarterly using Emerson’s Security Manager tool. Store configuration backups on write-once media for audit compliance.
