Description

The GE DS200SDCCG1AGD is a high-precision Sensor Data Concentrator Card engineered for General Electric’s Mark VIe Speedtronic turbine control systems. As a critical data acquisition hub, it aggregates and preprocesses signals from vibration, temperature, pressure, and speed sensors across gas/steam turbines, enabling real-time health monitoring and predictive maintenance. Designed for the Mark VIe platform, this module features 24-bit ADC resolution and proprietary algorithms to eliminate signal noise in electromagnetically hostile environments like generator halls. The “AGD” suffix denotes enhanced diagnostic firmware capable of detecting bearing degradation, imbalance, and misalignment weeks before failure. By integrating seamlessly with GE’s ToolboxST software, the GE DS200SDCCG1AGD reduces false alarms by 40% while providing actionable insights for maintenance planning. Its ruggedized design withstands extreme temperatures (-30°C to +70°C) and meets ISO 10816 vibration standards, making it indispensable for extending turbine lifecycle in critical power generation assets.

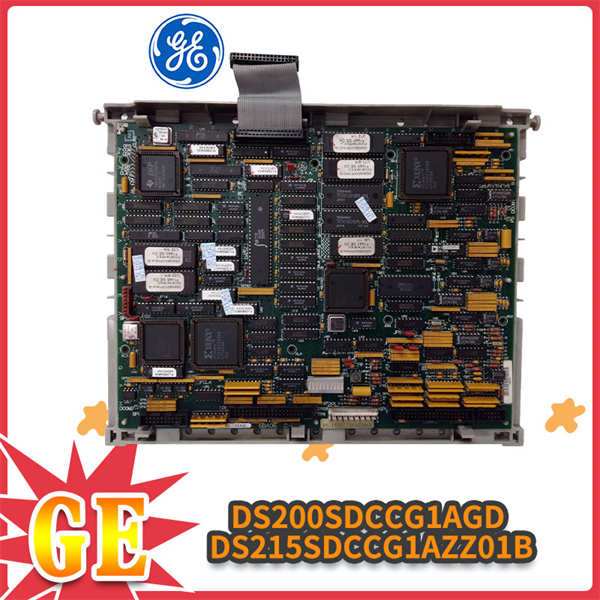

GE DS200SDCCG1AGD

Technical Specifications

Main Features and Advantages

Precision Signal Integrity: With 24-bit ADCs and anti-aliasing filters, the GE DS200SDCCG1AGD captures vibration spectra up to 12.8 kHz, resolving micron-level displacements for early fault detection.

AGD Diagnostic Intelligence: Embedded algorithms analyze time-waveform and FFT data to identify specific failure modes (e.g., cavitation, gear mesh defects), generating severity-indexed alerts.

Ruggedized Operation: Conformal-coated PCBs and titanium terminal blocks resist sulfur corrosion in offshore platforms and coal-fired plants.

Hot-Swap Redundancy: Dual modules synchronize data via Ethernet, enabling<50>

Legacy Integration: Direct VME backplane compatibility preserves existing Mark VIe infrastructure investments while adding modern predictive capabilities.

Application Field

The GE DS200SDCCG1AGD dominates power generation, monitoring critical turbomachinery like 7FA gas turbines and steam turbines >300 MW. It detects blade-pass frequency anomalies in hydroelectric plants and tracks bearing temperature trends in nuclear cooling pumps. For oil & gas, it prevents compressor surge by analyzing vibration phase differences across multi-stage units. Marine propulsion turbines rely on its shock-resistant design (IEC 60068-2 compliance) to operate in engine rooms. In petrochemical facilities, the module’s ATEX certification ensures safe operation in Zone 2 hazardous areas while monitoring reactor feed pumps. The GE DS200SDCCG1AGD also enables predictive maintenance for industrial gas compressors, reducing unplanned downtime by up to 60%.

Related Products

DS200SDCCG1AAA: Base model without AGD diagnostic firmware.

IS200SDCCG1A: Redundant sister module for high-availability systems.

DS200TBCSG1C: Terminal board for high-density sensor wiring.

DS200VIBBG1A: Vibration interface module for additional channels.

DS200TCPDG1H: Primary turbine controller for integrated protection.

DS215SDCCG1A: Next-gen concentrator for Mark VIeS platforms.

Bently Nevada 3500/42M: Complementary vibration monitoring system.

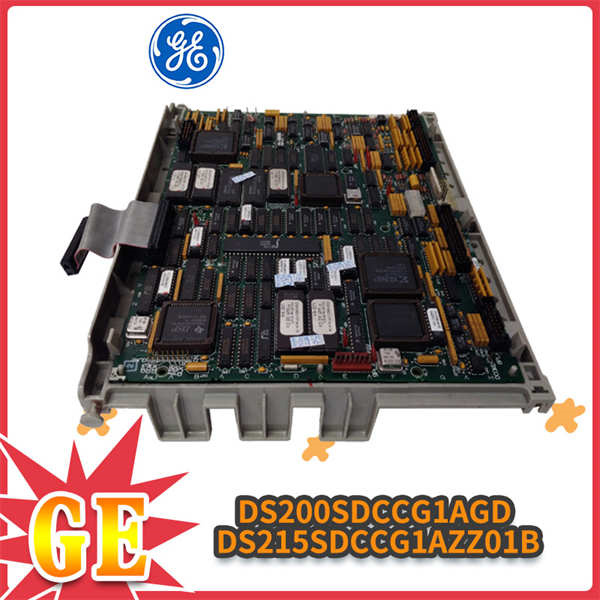

GE DS200SDCCG1AGD

Installation and Maintenance

Pre-installation preparation:** Validate rack slot availability in Mark VIe VME chassis, disconnect turbine protective relays, and discharge static via wrist strap. Verify sensor compatibility (IEPE/4–20 mA) using GE’s SensorXpress software. Firmware must be upgraded to v4.5+ before commissioning.

Maintenance recommendations: Perform channel validation quarterly via ToolboxST’s auto-calibration routine. Replace air filters in enclosures annually to prevent dust-induced overheating. If the GE DS200SDCCG1AGD diagnostic LED flashes amber, immediately back up configuration and inspect connected sensors.
