Description

The ABB G2010 A 10.4ST is a robust industrial operator panel designed for human-machine interface (HMI) applications within ABB’s automation ecosystem, particularly integrated with the AC 800M controller and System 800xA platform. Featuring a 10.4-inch high-brightness TFT color display with resistive touchscreen technology, the ABB G2010 A 10.4ST delivers clear visualization of process data, alarms, trends, and control functions—even under challenging ambient lighting conditions. Its front panel is constructed from stainless steel, offering enhanced durability and corrosion resistance, making it suitable for demanding environments such as food & beverage processing, chemical plants, and offshore platforms.

Positioned as a mid-range graphic display unit (GDU), the ABB G2010 A 10.4ST bridges the gap between basic text displays and full-fledged industrial PCs. It operates as a dedicated visualization terminal powered by ABB’s embedded graphics driver, ensuring deterministic performance without the complexity of a general-purpose operating system. The ABB G2010 A 10.4ST supports direct communication with AC 800M controllers via Profibus DP or serial links, enabling fast screen updates and responsive operator interaction. With its IP65-rated front protection, wide operating temperature range, and long lifecycle commitment from ABB, this panel remains a reliable choice for both new installations and legacy system upgrades where stability and serviceability are paramount.

ABB G2010 A 10.4ST

Technical Specifications

Main Features and Advantages

Rugged stainless steel construction:
The ABB G2010 A 10.4ST features a front bezel made of AISI 316L stainless steel, providing excellent resistance to corrosion, cleaning agents, and mechanical impact. This makes it ideal for hygienic or aggressive industrial settings where standard aluminum or plastic panels would degrade over time.

Optimized for ABB AC 800M integration:
Unlike generic HMIs, the ABB G2010 A 10.4ST is purpose-built for seamless communication with ABB’s AC 800M programmable automation controllers. It uses ABB’s proprietary embedded graphics driver, eliminating OS licensing issues and reducing cybersecurity exposure while ensuring fast, synchronized data exchange without third-party configuration layers.

High-visibility display in tough conditions:
With a bright TFT backlight and wide viewing angles, the ABB G2010 A 10.4ST maintains readability in direct sunlight or dimly lit control rooms. The resistive touchscreen offers precise input even when wearing gloves—a critical feature for operators in PPE-heavy environments like refineries or power stations.

Long-term availability and simplified maintenance:
ABB designs its G2000 series for extended product lifecycles, minimizing obsolescence risk. The ABB G2010 A 10.4ST supports easy firmware updates and can be replaced in the field with minimal reconfiguration, as screen layouts and tags are managed centrally in the controller project.

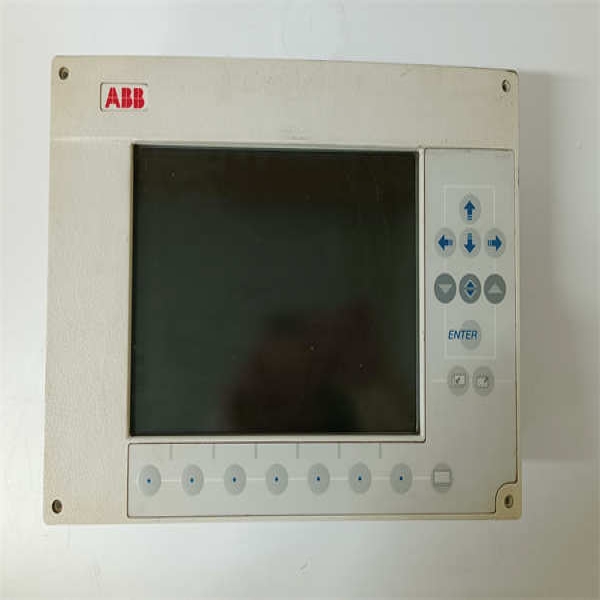

ABB G2010 A 10.4ST

Application Field

The ABB G2010 A 10.4ST is widely used across process and discrete industries where reliable, secure, and maintenance-friendly operator interfaces are essential. In water and wastewater treatment facilities, it provides local control at pump stations and clarifiers, allowing operators to monitor flow rates, chemical dosing, and alarm statuses directly at the skid—without needing a laptop or remote connection. In oil & gas terminals, the ABB G2010 A 10.4ST serves as a local HMI for separator units or compressor packages, with its stainless steel front resisting salt spray and hydrocarbon exposure.

In power generation plants, especially those using ABB’s Symphony Plus or AC 800M-based turbine control systems, the ABB G2010 A 10.4ST offers a trusted local interface for startup sequences and emergency overrides. Similarly, in pulp & paper mills, it withstands high humidity and airborne fibers that would compromise standard displays. Because it integrates natively with System 800xA engineering tools, engineering teams can deploy identical faceplates across multiple ABB G2010 A 10.4ST units without custom scripting—accelerating commissioning and ensuring consistency across the plant floor.

Related Products

• ABB G2010 A 15ST: 15-inch version of the same series, offering larger screen real estate for complex mimic diagrams

• ABB G2010 A 6.4T: Smaller 6.4-inch variant for space-constrained panels or auxiliary control points

• ABB AC 800M CI854: Profibus DP communication module used to connectG2010 A 10.4ST to the controller

• ABB TB511: Terminal base for G2000 series panels, facilitating secure wiring and mounting

• ABB PM866A: AC 800M CPU commonly paired withG2010 A 10.4ST in redundant control architectures

• ABB G2020: Higher-end GDU with Ethernet connectivity and advanced graphics capabilities

• ABB Operator Workplace (OWP): Software environment within System 800xA used to design and deploy screens forG2010 A 10.4ST
