Description

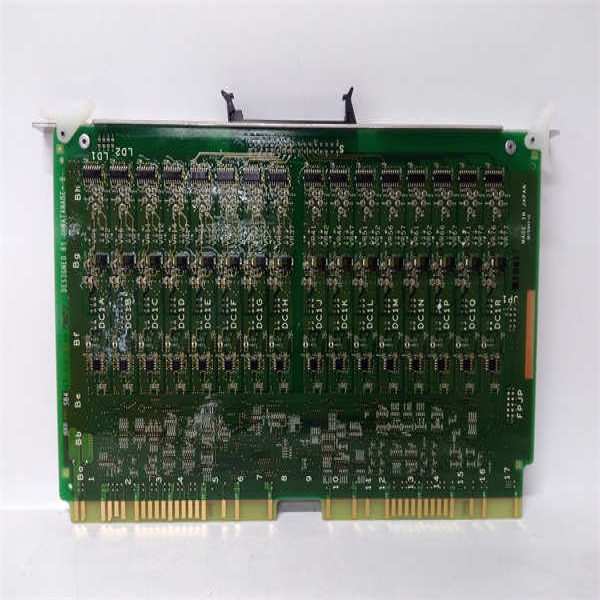

The HITACHI LYA010A is a sophisticated control board designed specifically for the SJ series of variable frequency drives (VFDs), including models like the SJ100 and SJ300. As part of Hitachi’s commitment to providing high-performance industrial automation solutions, the HITACHI LYA010A plays a pivotal role in ensuring precise speed and torque regulation for electric motors used in a variety of industries such as manufacturing, material handling, HVAC, and water treatment. With advanced vector control algorithms embedded within its microprocessor architecture, the HITACHI LYA010A enables users to achieve optimal motor performance under varying load conditions.

Designed to withstand harsh operating environments, the HITACHI LYA010A features robust construction and comprehensive protection against electrical disturbances, making it an ideal choice for mission-critical applications where reliability and efficiency are paramount. The board supports pulse-width modulation (PWM) technology, facilitating smooth start-ups and energy-efficient operation. Furthermore, the HITACHI LYA010A is equipped with diagnostic capabilities that allow operators to monitor system status and troubleshoot issues promptly, minimizing downtime and maintenance costs.

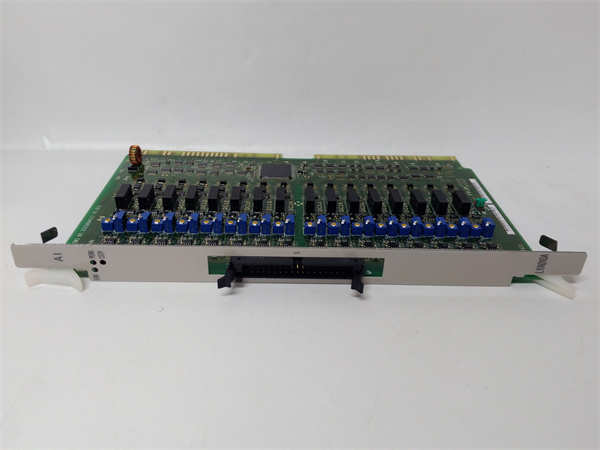

LYA010A

Technical Specifications

Main Features and Advantages

Advanced vector control for superior performance: The HITACHI LYA010A employs state-of-the-art vector control technology, enabling accurate speed and torque regulation even under challenging load conditions. This makes it particularly useful in applications requiring dynamic response, such as conveyor belts, cranes, and centrifugal pumps.

Microprocessor-based design ensures reliability: Built around a powerful microcontroller, the HITACHI LYA010A provides stable and dependable operation, with built-in diagnostics and self-check routines that help identify potential issues before they lead to system failures. Its firmware can also be updated to accommodate future enhancements or compatibility requirements.

Energy-saving and efficient operation: By utilizing PWM technology, the HITACHI LYA010A minimizes power losses and reduces energy consumption, contributing to lower operational costs and environmental sustainability. Additionally, its ability to smoothly ramp up motor speeds helps reduce mechanical stress on connected equipment, prolonging their lifespan.

Comprehensive protection against electrical disturbances: The HITACHI LYA010A includes overcurrent, overvoltage, undervoltage, and thermal overload protections, safeguarding both the drive and the motor from damage due to electrical anomalies. These features make it suitable for use in environments prone to voltage fluctuations and other electrical disturbances.

Application Field

In manufacturing plants, the HITACHI LYA010A controls the speed and torque of motors driving assembly lines, ensuring consistent product quality while reducing wear and tear on machinery. For instance, in automotive production facilities, it regulates the movement of robotic arms and conveyor systems, maintaining precision and efficiency throughout the assembly process.

Within HVAC systems, the HITACHI LYA010A adjusts fan and pump speeds based on real-time demand, optimizing airflow and water circulation while conserving energy. This adaptability leads to significant savings in electricity costs and improves overall comfort levels in commercial buildings and public spaces.

For water treatment plants, the HITACHI LYA010A manages the operation of pumps responsible for distributing treated water to various parts of the facility. Its ability to handle fluctuating loads ensures continuous and reliable service, which is crucial for maintaining public health standards and avoiding disruptions to daily operations.

Material handling applications benefit from the HITACHI LYA010A‘s precise control over lifting mechanisms and transport vehicles, enhancing safety and productivity by preventing sudden jerks or stops that could cause accidents or damage goods.

Related Products

SJ100: Compatible VFD series for light-duty applications, often paired with LYA010A for enhanced functionality
SJ300: Higher-power VFD series, suitable for more demanding industrial processes, also supported by LYA010A
LYA001A: Alternative control board for older SJ series models, offering similar functionalities but with different specifications
RS-485 Communication Module: Enables integration of multiple LYA010A units into a networked control system
Drive Programming Tool: Software tool for configuring and monitoring parameters on LYA010A controlled drives
Thermal Overload Protector: Additional component for protecting motors controlled by LYA010A, especially in high-load scenarios

LYA010A

Installation and Maintenance

Pre-installation preparation: Before installing the HITACHI LYA010A, ensure that all power sources are disconnected and that the ambient temperature falls within the specified range (-10°C to +50°C). Verify the compatibility of your existing drive with the LYA010A and prepare necessary tools for mounting. Follow manufacturer guidelines closely during installation to avoid misalignment or improper connections that could affect performance.

Maintenance recommendations: Regularly inspect the HITACHI LYA010A for signs of wear or damage, paying special attention to connectors and cooling fans. Keep the area around the board clean and free of dust to prevent overheating. Monitor system logs for any unusual activity or error codes, which may indicate impending issues. Perform periodic firmware updates to take advantage of new features and improvements. Always replace faulty units with genuine LYA010A modules to maintain system integrity and warranty coverage.
