Description

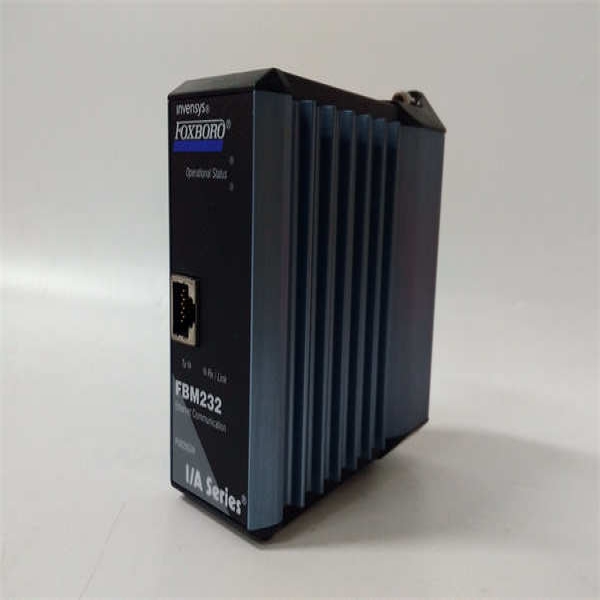

The FOXBORO FBM232 (manufacturer part number P0926GW) is an 8-channel analog input module designed for the Foxboro I/A Series distributed control system (DCS). It is engineered to interface with industry-standard 4–20 mA current loop transmitters, including HART-enabled smart devices, making it a cornerstone of modern process signal acquisition in oil & gas, power generation, chemical processing, and water treatment facilities.

Each of the eight channels on the FBM2332 features galvanic isolation from other channels and from the system ground, minimizing crosstalk and protecting the DCS from field-side faults such as surges or ground loops. The module supports HART digital communication superimposed on the analog signal, enabling remote configuration, calibration, and diagnostics of smart transmitters directly through the I/A Series operator station—without interrupting the 4–20 mA process reading.

As part of Foxboro’s modular Fieldbus Module (FBM) architecture, the FBM232 plugs into standard FBM terminal blocks (e.g., FTB232) and connects to the I/A Series controller via redundant FIM (Fieldbus Interface Modules) over a high-speed I/O bus. This design ensures high availability, hot-swappability, and easy maintenance—critical for continuous-process industries where unplanned downtime can cost thousands per minute.

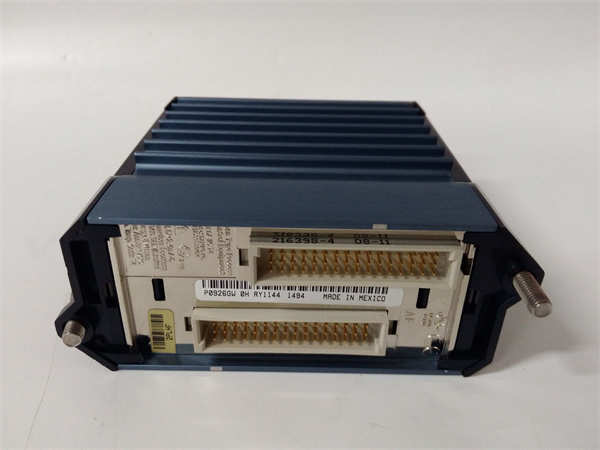

FBM232 P0926GW FOXBORO

Technical Specifications

Main Features and Advantages

✅ True HART transparency: The FBM232 allows HART digital data to pass unaltered from field devices to the DCS asset management software (e.g., AMS Suite), enabling predictive maintenance without additional multiplexers.

✅ High channel density & reliability: With 8 isolated inputs in a single-width FBM slot, the FBM232 reduces cabinet space and wiring complexity while maintaining signal integrity—even in electrically noisy environments like motor control centers.

✅ Hot-swappable for zero-downtime maintenance: Technicians can replace a faulty FBM232 without powering down the I/O rack, thanks to redundant FIMs and robust backplane design—minimizing process interruption.

✅ Advanced diagnostics: Built-in self-tests monitor open-circuit, short-circuit, and out-of-range conditions per channel, with status reported in real time to the I/A Series operator console.

✅ Seamless integration with legacy and modern systems: The FBM232 works in both classic I/A Series and upgraded EcoStruxure™ Foxboro DCS environments, supporting brownfield plant modernization without full hardware replacement.

Application Field

The FOXBORO FBM232 is widely deployed in continuous-process industries where precise analog signal monitoring is critical:

• Inrefineries and petrochemical plants, it reads pressure, temperature, flow, and level signals from HART transmitters on distillation columns, reactors, and pipelines—feeding data to advanced control strategies like APC (Advanced Process Control).

• Incombined-cycle power plants, the FBM232 interfaces with boiler drum level transmitters, turbine bearing temperature sensors, and flue gas O₂ analyzers, ensuring safe and efficient operation.

• Inwater and wastewater treatment, it monitors pH, turbidity, and chemical dosing rates, enabling automated compliance with environmental regulations.

• Inpharmaceutical manufacturing, its high accuracy and isolation support GMP-compliant batch processes requiring strict signal fidelity.

Across all these applications, the FBM232 delivers dependable, high-fidelity signal acquisition that forms the foundation of safe, efficient, and compliant industrial operations.

FBM232 P0926GW FOXBORO

Related Products

• FTB232: Dedicated terminal block for FBM232 (screw-clamp field wiring)

• FBM233: 8-channel analog output module (complementary to FBM232)

• FIM02/FIM03: Fieldbus Interface Modules that connect FBM232 to I/A Series controllers

• P0914XM: Redundant power supply for FBM chassis

• FBM207: Thermocouple/mV input module (for temperature-only applications)

• I/A Series DCS Workstation: Operator/engineering station for configuration and monitoring

• Schneider Electric Asset Advisor: Cloud-based service for HART device analytics using FBM232 data

Installation and Maintenance

Pre-installation:

• Confirm compatibility with your I/A Series version (typically supported from V4.x onward).

• Ensure the FBM chassis has available slots and proper FIM redundancy.

• Use shielded twisted-pair cable for each 4–20 mA loop; ground shield at controller end only.

• Match terminal wiring to FTB232 pinout—observe polarity (+/-) for each channel.

Maintenance:

• Periodically verify HART communication using a handheld communicator or AMS.

• Check for “Channel Fault” alarms in the I/A Series diagnostics view.

• Clean dust from module vents to prevent overheating in high-ambient cabinets.

• Keep a pre-configured spareFBM232 (P0926GW) on-site—modules are firmware-matched to system versions.
