Triconex 3805E Product Overview

Product Overview

Triconex 3805E is a high reliability digital output module produced by Invensys Triconex,designed specifically for critical safety applications in industrial process control systems.As part of the Triconex Safety Instrumented System(SIS),it ensures safe operation in hazardous environments by implementing strict safety protocols.

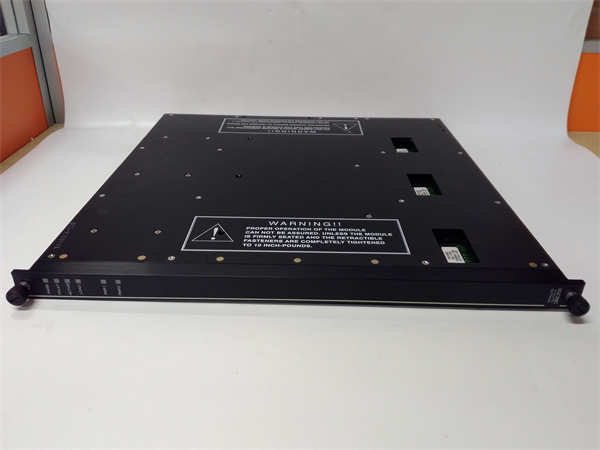

3805E TRICONEX

Product Features

High reliability:Adopting redundant design and self diagnostic function to ensure reliable operation of the system even under extreme conditions.

Modular design:Modular structure for easy installation and maintenance.

Multifunctionality:Supports multiple output types,such as relay output,solid-state output,etc.,to meet different application requirements.

Strong flexibility:Multiple functions can be configured,such as fault safety,manual automatic conversion,etc.

Safety:The design complies with the IEC 61508 safety instrumented system standard and can achieve SIL 2 or SIL 3 safety integrity levels.

Product parameters

Channels:Typically 16 channels per module(configurable)

Output:Digital output,usually relay or solid-state

Rated voltage:usually supports 24V DC or 120V AC

Rated current:Depending on the configuration,typically up to 2A per output

Temperature range:Designed to operate between-40°C and+70°C

Certification:SIL 2 or SIL 3 certification,depending on the configuration

Product specifications

Safety:Designed to comply with the IEC 61508 Safety Instrumented Systems standard

Reliability:High reliability architecture with redundant options

Communication:The interface is connected to the Triconex safety controller through a dedicated communication protocol

Installation:DIN rail installation,easy to install on the control panel

Shell:usually placed in a sturdy and durable shell to prevent industrial environments

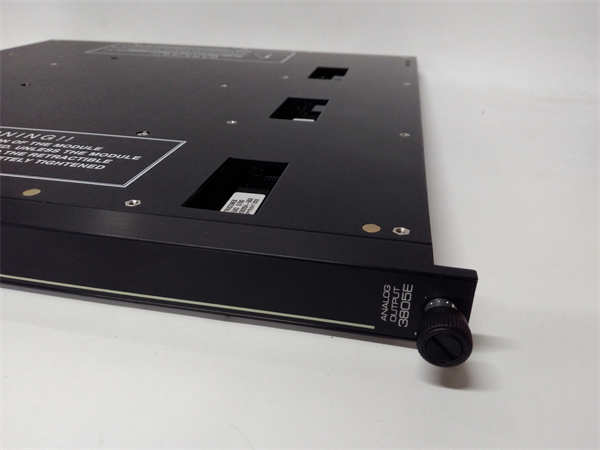

3805E TRICONEX

Product  Series

The Triconex 3805E is part of the Tricon series of safety systems designed specifically for critical control applications in industrial environments.

Product function

Emergency Shutdown System(ESD):The process of safely shutting down in emergency situations.

Fire and gas detection system:provides rapid response to prevent accidents from occurring.

Turbomechanical control:protects the turbine from damage.

Process shutdown:Safely shut down the process in exceptional circumstances.

Any application that requires fail safe operation in hazardous environments

application area

Oil and gas:emergency shutdown system,fire alarm and gas detection system

Chemical processing:process control,safety interlock

Power generation:turbine control,safety protection

Manufacturing:Any automated process that requires high security

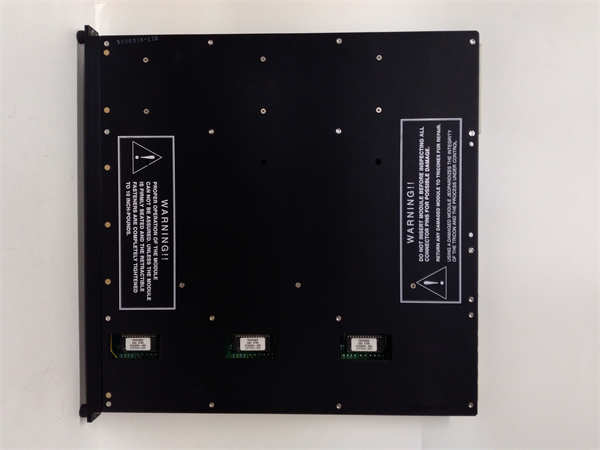

3805E TRICONEX

summary

Triconex 3805E is a highly reliable and powerful digital output module widely used in industrial process control systems that require high safety.It can ensure safe operation in hazardous environments and protect personnel and equipment.
