ABB DSQC679 3HAC028357-001 handheld teaching pendant

Product Overview

ABB DSQC679 3HAC028357-001 is a handheld teaching pendant designed specifically for ABB industrial robots.It is an important tool for interaction between robot operators and robot control systems.It provides a user-friendly interface for programming,debugging,operating,and monitoring robots.

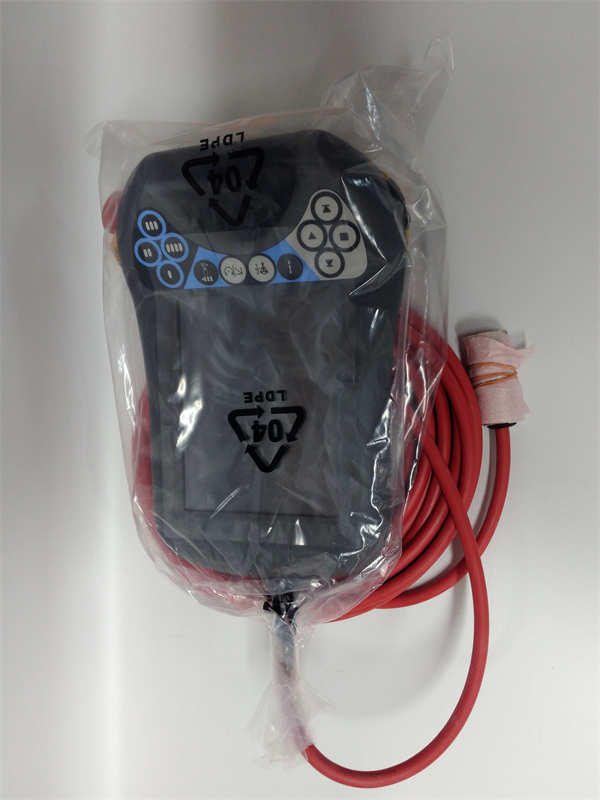

DSQC679 3HAC028357-001 ABB

Product parameters and specifications

model:DSQC679 3HAC028357-001

Function:Programming,debugging,operation,monitoring

Interface:Communicate with ABB IRC5 controller

Display screen:high-resolution color touch screen

Buttons:Multi functional buttons(such as move,rotate,confirm,etc.)

Interface:USB、Ethernet,etc

Environmental requirements:Industrial environment

Product series and features

Series:ABB IRC5 Robot Controller

features:

Intuitive interface:Provides a graphical user interface that is easy to get started with.

Multi functional:Supports multiple programming methods(such as demonstration programming,offline programming),and can achieve complex robot actions.

Real time monitoring:Real time display of the robot’s status,position,and speed.

Fault diagnosis:Help users quickly locate and solve robot faults.

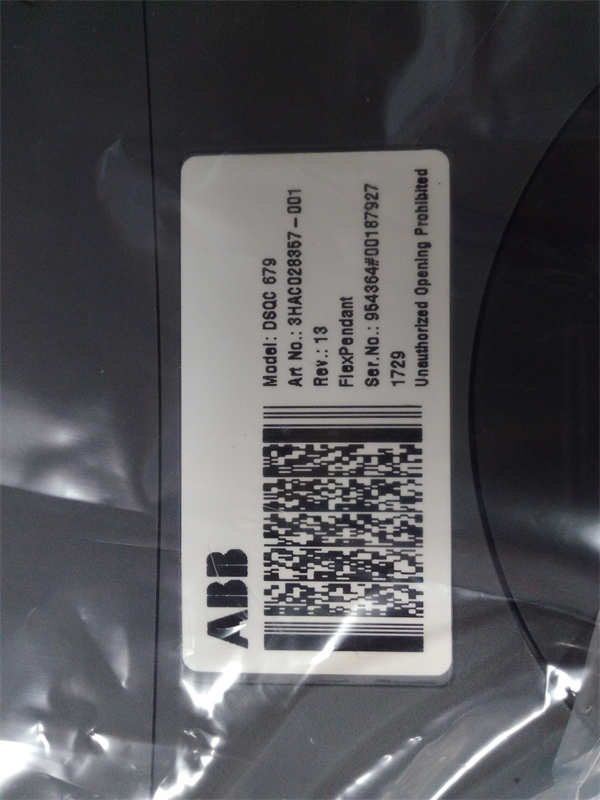

DSQC679 3HAC028357-001 ABB

Product function and purpose

Programming:Create and edit robot programs,define robot motion trajectories and execute tasks.

Debugging:Debug robot programs,optimize motion trajectories,and ensure accurate and reliable robot movements.

Operation:Manually operate the robot for demonstration and online adjustment.

Monitoring:Real time monitoring of robot operation status,timely detection and handling of abnormal situations.

application area

Industrial automation:widely used in fields such as automobile manufacturing,electronic manufacturing,logistics,and food processing.

Research education:used for robot teaching and research experiments.

working principle

DSQC679 controls the robot by communicating with the ABB IRC5 controller.The operator inputs instructions or teaches the robot on the teaching pendant,and the instructions are sent to the controller,which then drives the robot to perform the corresponding actions.

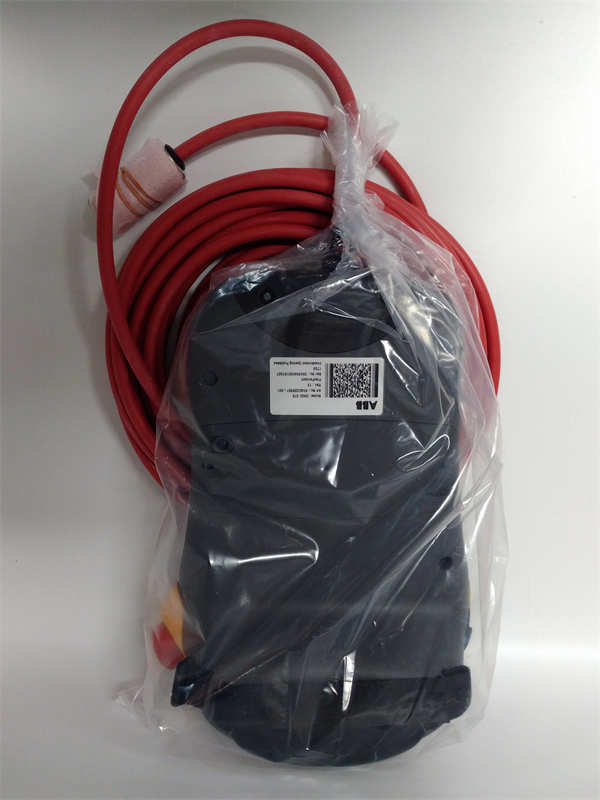

DSQC679 3HAC028357-001 ABB

summary

The ABB DSQC679 3HAC028357-001 handheld teaching pendant is an indispensable part of ABB robot systems,providing operators with a convenient and efficient tool that greatly improves the efficiency of robot programming and operation.
