Detailed information integration of HIMA F7126 power module:

DESCRIPTION

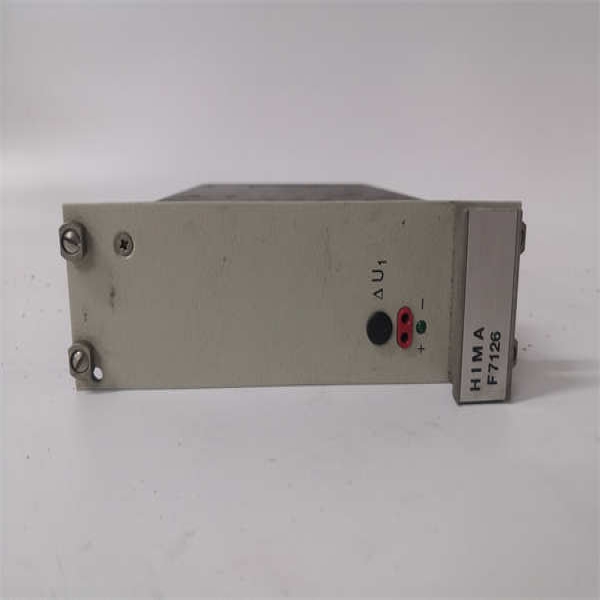

HIMA F7126 is an industrial grade power module designed specifically for Safety Instrumented Systems(SIS)and automation control,providing stable power distribution and management.It supports redundant configuration to ensure reliable operation of the system in the event of power failure,complies with SIL 3 safety level standards,and is suitable for high-risk industrial environments.

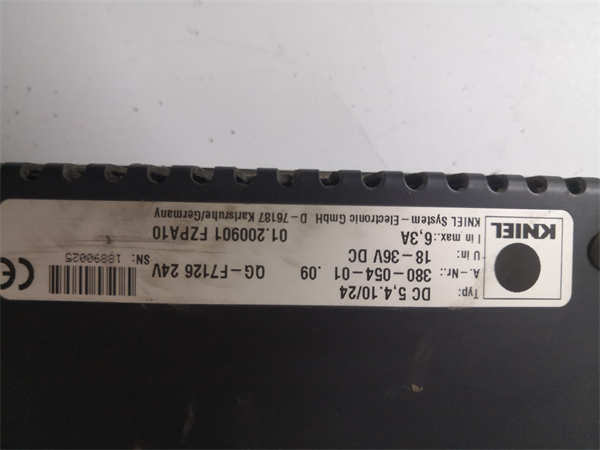

F7126 HIMA

Product parameters

model:F7126

Brand:HIMA

Input voltage:24 VDC

Output voltage:5 VDC

Output current:6.3 A

Efficiency:High conversion efficiency,reduced energy consumption

Working temperature:-20°C to+60°C

Product specifications

Type:DC power module,supporting redundant parallel connection(up to 3 modules).

Isolation characteristics:Input and output are electrically isolated,with strong anti-interference ability.

Certification:Complies with international standards such as CE,UL,IECEx,and meets SIL 3 safety requirements.

Protection level:IP20(requires cabinet installation).

series

Belonging to the HIMA F series,this series is known for its high reliability and modular design,and is widely used in safety PLCs,I/O modules,and power systems.

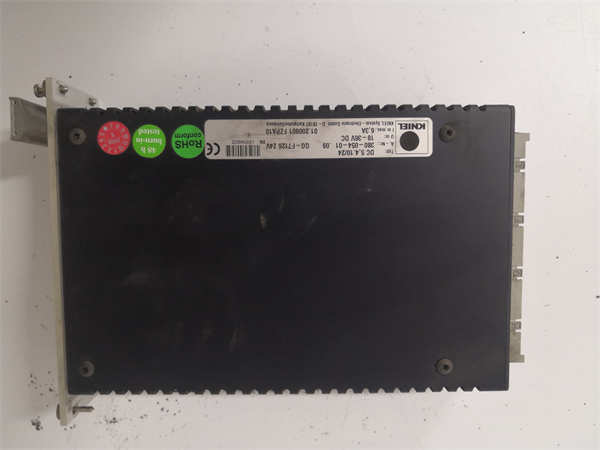

F7126 HIMA

characteristic

High security:

Compliant with SIL 3 safety level and supporting fault-tolerant design.

Real time monitoring of output voltage,with overvoltage and undervoltage protection functions.

Redundant configuration:

Support parallel connection of multiple modules to improve system availability,and the failure of a single module does not affect the overall operation.

Efficient and stable:

High conversion efficiency,low output ripple,ensuring stable power supply for precision equipment.

Intelligent monitoring:

Cooperate with HIMA monitoring module(such as F7131)to provide real-time feedback on power status.

Modular design:

Easy to install and expand,suitable for various industrial control cabinet layouts.

role

Power conversion:Convert 24 VDC input to 5 VDC output to power the core components of the control system.

Redundant backup:By parallel configuration,ensure continuous power supply and avoid single point failures.

System protection:Provides protection against overcurrent,short circuit,overheating,etc.,extending equipment life.

purpose

Industrial automation:providing stable power supply for PLC,I/O modules,sensors and other equipment.

Safety Instrumented System(SIS):Supports high reliability requirements such as emergency shutdown and safety interlocking.

Redundant power architecture:Build dual power backup in critical systems to enhance overall availability.

F7126 HIMA

application area

Petrochemical industry:safety control systems for refineries and chemical plants.

Energy and electricity:power supply for automation equipment in power stations and substations.

Metallurgical manufacturing:precise control of steel plants and automotive production lines.

Transportation:Rail transit signal system,port automation equipment.

Building Intelligence:Security and HVAC systems for large buildings.
