Description

Detailed information integration of ABB 5SHY4045L0006 3BHB030310R0001 IGCT module:

DESCRIPTION

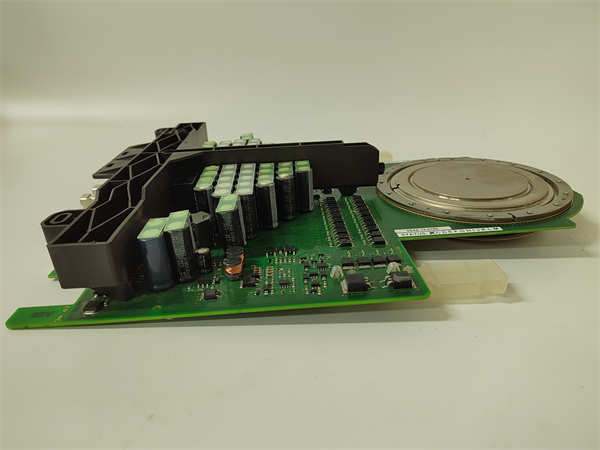

5SHY4045L0006 3BHB030310R0001 is an integrated gate commutated thyristor(IGCT)module designed specifically for high-voltage power electronics applications to achieve efficient energy conversion and control.This module combines the high voltage capability and gate turn off characteristics of thyristors,and is suitable for high voltage frequency converters,static var compensator(SVC),power transmission and other scenarios,supporting high power density and reliable operation.

5SHY4045L0006 3BHB030310R0001 ABB

Product parameters

Model:5SHY4045L0006 3BHB030310R0001

Brand:ABB

Voltage:4500V

Current:5A

Physical specifications:91mm(module size)

Power supply:Supports 24V DC or 120V AC input

Product specifications

Power performance:

High voltage shutdown capability,suitable for high voltage direct current(HVDC)or medium voltage frequency converters.

Low conduction loss,improving system efficiency.

Control function:

Supports hot swapping for easy maintenance and replacement.

Built in protection circuits(such as overcurrent and overheat protection)enhance reliability.

Interface features:

Optoelectronic isolation signal input/output,strong anti-interference ability.

Supports multiple communication protocols(such as Profibus,Modbus)and is compatible with industrial networks.

Belonging series

Series:ABB IGCT module series,based on mature thyristor technology,covering different voltage levels(such as 3.3kV,4.5kV),suitable for industrial and power fields.

characteristic

High reliability:Redundant design and rigorous testing ensure long-term stable operation.

Modular design:facilitates system integration and expansion,reducing installation costs.

Efficient and energy-saving:optimizing energy utilization efficiency with low loss characteristics.

Wide application range:Supports high-frequency switching and intermediate frequency(<1kHz>

5SHY4045L0006 3BHB030310R0001 ABB

Action and use

Core functions:

Realize fast switching and control of high-voltage electrical energy,supporting functions such as rectification,inversion,and chopping.

Adjust the motor speed(such as a frequency converter)and stabilize the grid voltage(such as SVC).

Typical use:

Replace traditional thyristor or IGBT modules to improve high-voltage system performance.

Suitable for driving and controlling high-power equipment such as rolling mills,fans,and pumps.

application area

Power industry:

High voltage frequency converter,Static Var Compensator(SVC),power transmission system.

Industrial manufacturing:

Steel mill drive,chemical plant large motor control,paper machine speed control system.

Energy sector:

Wind power inverters,photovoltaic inverters,energy storage systems.

Transportation industry:

Rail transit traction system,ship electric propulsion.
