DESCRIPTION

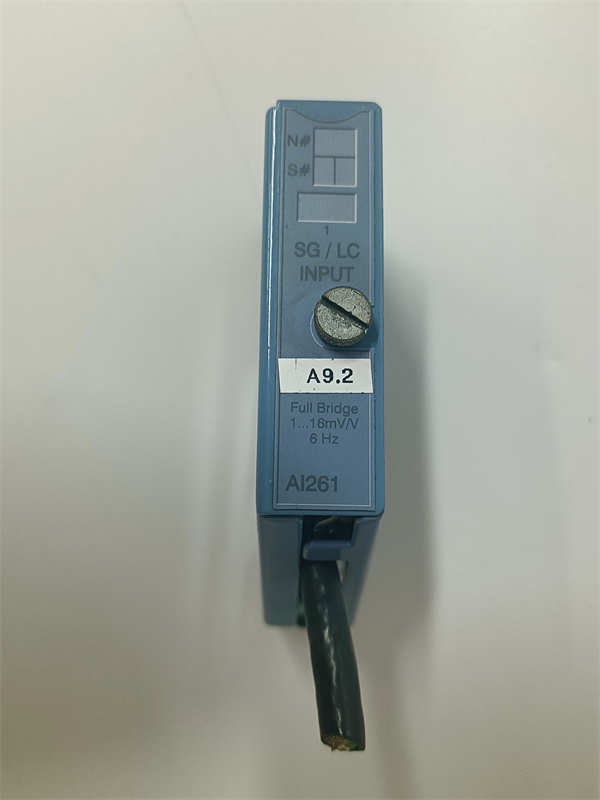

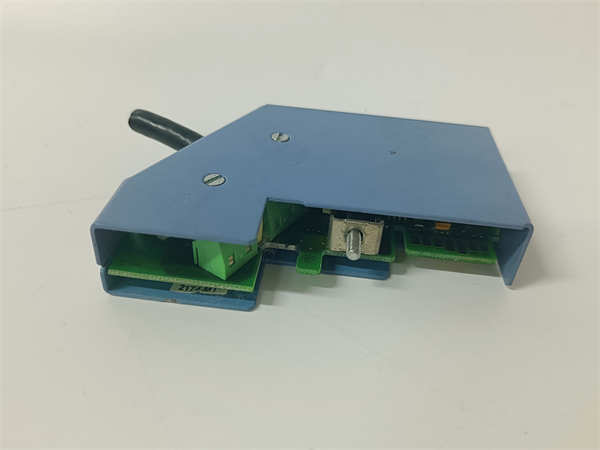

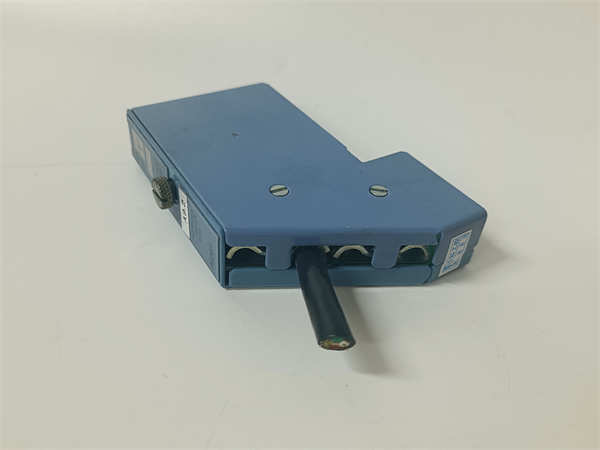

B&R 7AI261.7 is an industrial grade analog input module designed specifically for high-precision signal acquisition.It supports one full bridge strain gauge input channel and converts analog signals into digital signals through a 24 bit analog-to-digital converter.It is suitable for monitoring and controlling physical quantities such as force measurement,weighing,and pressure in industrial automation systems.This module adopts a screw in installation,which is easy to deploy and maintain quickly,and is compatible with the B&R 2003 series control system.

7AI261.7 B&R

Product parameters

Model:7AI261.7

Input type:Full bridge strain gauge signal(such as load cell,weighing sensor,pressure gauge,etc.)

Resolution:24 bits

Accuracy:Typical value±0.1%

Installation method:screw in module

Power supply:dependent on system power supply

Communication interface:Interact with the controller through the B&R 2003 system bus

Protection level:IP20(rail installation)

Working temperature:-40°C to+70°C(industrial grade environment adaptation)

Product specifications

Function:Single channel analog signal acquisition,analog-to-digital conversion,signal conditioning.

Compatibility:Compatible with B&R 2003 series PLC and control systems.

Scalability:Supports combination with other I/O modules.

series

Belonging to the B&R 2003 series industrial automation product line,it focuses on signal processing and expansion of modular control systems.

7AI261.7 B&R

characteristic

High precision acquisition:24 bit resolution ensures precise capture of small signal changes.

Specialized input design:optimized for full bridge strain gauges,supporting special applications such as force measurement and weighing.

Screw in installation:quick installation and replacement,reducing downtime.

Wide temperature adaptation:Industrial grade components are suitable for extreme environments.

Modular integration:Seamless compatibility with B&R 2003 system,simplifying system configuration.

role

Signal conversion:Convert the analog signal output by the full bridge strain gauge into a digital signal for processing by the controller.

Data preprocessing:filtering,linearization,and noise suppression to improve signal quality.

System Expansion:As a distributed I/O node,expand the signal acquisition capability of the control system.

purpose

Industrial equipment status monitoring(such as mechanical stress,load changes).

Data collection of weighing system and force measuring device.

Real time measurement and feedback of physical quantities such as pressure and torque.

7AI261.7 B&R

application area

Manufacturing industry:Load monitoring and control of production line equipment.

Energy industry:stress analysis and fault warning of power equipment.

Chemical and Pharmaceutical:Reactor Pressure Monitoring and Process Control.

Transportation:Weighing system and structural health monitoring for rail transit.

Material testing:high-precision data collection of laboratory equipment.
