Detailed information organization of CXP-544A KOMS-A2 KOKUSAI embedded CPU board,based on provided search resources:

DESCRIPTION

CXP-544A KOMS-A2 is a high-performance embedded CPU board launched by KOKUSAI,designed specifically for industrial automation control.As the control center of the system,it integrates circuits such as control power supply,modulation pulse generation,control mode,and protection logic.It supports receiving signals from panels and external control interfaces,achieving precise control and protection of equipment such as RF units and induction heating devices.This module adopts a modular design,which has the characteristics of high reliability,high stability,and easy expansion and maintenance.It supports multiple input and output interfaces and is suitable for complex industrial environments.

Product parameters

model:CXP-544A KOMS-A2

manufacturer:KOKUSAI

Electrical performance:

SG3525A is used as the PWM pulse formation,with an output pulse frequency range of 20KHz to 60KHz,pulse intervals of 180 degrees,and a self adjustable dead time.

The power range is 10KW-120KW,and the working power supply voltage is three AC dual 18V/1A and four 22V/0.5A.

Supports overcurrent,overvoltage,and water shortage protection,and provides switch type Hall protection interfaces and linear Hall protection interfaces.

Structure and Interface:

Modular design,equipped with multiple interfaces,can be integrated with other devices or systems for communication(such as connecting sensors,monitoring systems).

It has high-precision signal transmission capability and shielding design to enhance anti-interference performance.

Product specifications

Technical specifications:

Specially designed for IGBT full bridge inverter series resonant induction heating device,supporting chopper voltage and power regulation or frequency and power regulation.

The control logic is programmable and supports users to customize control algorithms according to their needs.

Physical specifications:

Compact modular structure,easy to install,maintain,and replace.

series

CXP-544A KOMS-A2 belongs to KOKUSAI’s industrial control motherboard series,but specific sub series information is not explicitly mentioned in the search resources.

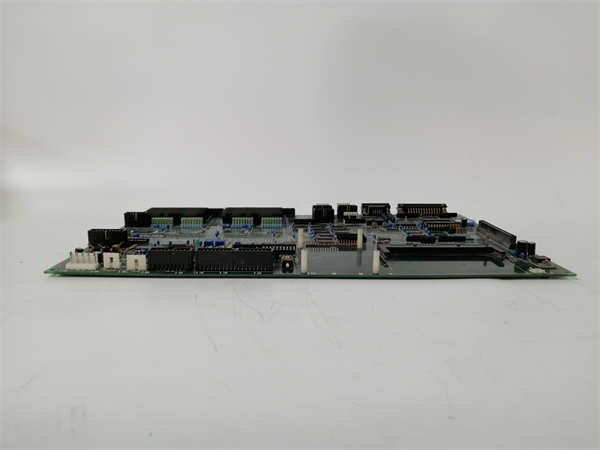

CXP-544A KOMS-A2 KOKUSAI

characteristic

Design advantages:

Modular design,easy to expand and maintain;Supports multiple industrial interfaces and adapts to different devices.

High reliability,rigorously tested,suitable for long-term continuous industrial environments.

Strong anti-interference ability,shielding design ensures signal stability.

Functional features:

Integrate real-time monitoring and protection functions(such as overcurrent and overvoltage)to ensure the safe operation of the system.

Strong programmability,users can customize control logic to meet diverse needs.

Supports high-frequency control(20KHz-60KHz),suitable for high dynamic scenarios such as induction heating.

Action and use

effect:

As the control core of industrial equipment,it realizes functions such as process control,motion control,and logic control.

Accurately adjust equipment operating parameters(such as temperature,current)and provide protection mechanisms to ensure system stability.

Purpose:

Used for control and monitoring of industrial automation equipment such as drivers and induction heating devices.

As the core of temperature control systems,it is applied to semiconductor manufacturing equipment(such as chemical vapor deposition,physical vapor deposition processes).

application area

Industrial automation:controlling and managing industrial equipment such as motor drives,frequency converter systems,and induction heating devices.

Semiconductor manufacturing:used for temperature control of semiconductor production equipment to ensure the stability and accuracy of process parameters.

Energy and Electricity:Applied to power management,high-frequency induction heating equipment,supporting efficient energy conversion.

Other fields:Suitable for scenarios that require high-precision control,such as automation systems in industries such as textiles,printing,and water treatment.

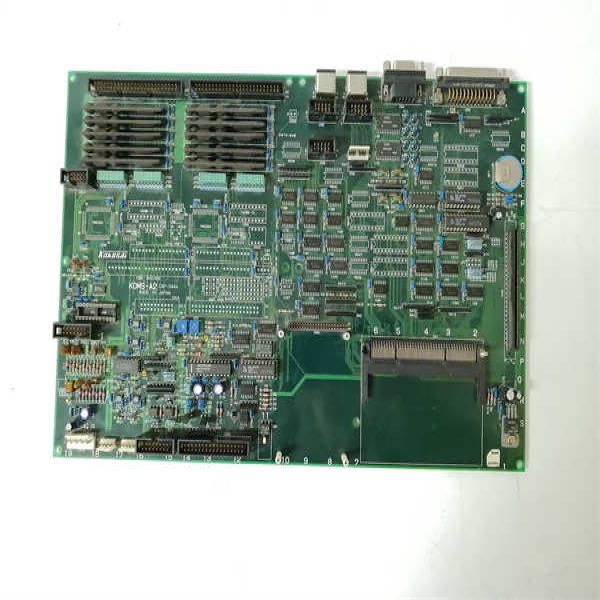

CXP-544A KOMS-A2 KOKUSAI

summarize

The CXP-544A KOMS-A2 KOKUSAI embedded CPU board,with its modular design,high reliability,and powerful control capabilities,has become a key component in the fields of industrial automation and semiconductor manufacturing.It is widely used in industrial scenarios that require precise control and efficient operation.
