PFTL101B 5.0KN 3BSE004191R1 ABB horizontal pillow type tension gauge pressure head weighing sensor detailed information organization,based on the provided search resources:

DESCRIPTION

PFTL101B 5.0KN 3BSE004191R1 is a horizontal pillow type tension gauge pressure head weighing sensor launched by ABB,designed specifically for high-precision tension measurement in the industrial field.It works through the pressure magnetic effect.When the strip passes through the tension roller at a certain wrap angle,the sensor measures the horizontal tension component and calculates the actual tension of the strip based on the wrap angle.This sensor is made of stainless steel material,with a sturdy structure and features resistance to vibration,overload,and harsh environments.It is suitable for complex working conditions such as high speed and heavy rollers.

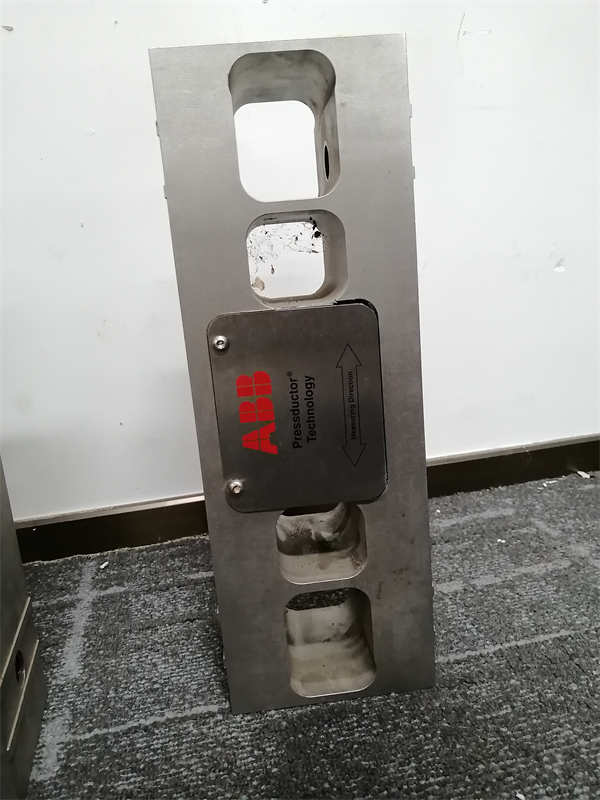

PFTL101B 5.0KN 3BSE004191R1 ABB

Product parameters

Model： PFTL101B 5.0KN 3BSE004191R1

manufacturer:ABB

Rated load:5.0 kN(approximately 1125 pounds force).

Allowable lateral load:30.0 kN(approximately 6750 pounds force).

Measurement direction overload capacity:25.0 kN(approximately 5625 pounds force).

Displacement:0.015 mm.

Spring constant:325 kN/mm.

Accuracy and Protection:

Accuracy level:±0.5%.

Protection level:IP65，Suitable for harsh industrial environments.

Environmental parameters:

Working temperature range:-20℃to+80℃.

Product specifications

Design specifications:

Based on the principle of magnetostriction effect,tension is induced through magnetic field changes without physical movement,avoiding mechanical wear and improving reliability.

The output signal is an analog signal(such as 4-20mA or 0-10V),which is easy to integrate with the control system.

Structural specifications(Abstract 8):

Size:25mm x 25mm x 100mm,weight:0.5kg,compact design for easy installation.

series

PFTL101B belongs to the ABB pillow block type tension gauge horizontal pressure measuring element series,which includes multiple models(such as PFTL1101A,PFTL101BE,etc.),covering different force measurement ranges and environmental requirements.

characteristic

Performance advantages:

High precision and stability:using pressure magnetic technology,high measurement accuracy,strong anti-interference ability,and long-term stable operation.

Durable and sturdy:Made of stainless steel material,resistant to vibration,overload,and temperature changes,suitable for harsh working conditions such as high speed and heavy rollers.

Low impedance signal output:reduces radio frequency and electromagnetic interference,ensuring signal stability.

Design features:

Modular design,easy to integrate into tension control systems,supports compatibility with ABB control units,isolation amplifiers,etc.

Optimization of horizontal tension measurement,precise calculation of tension value through ladle angle,suitable for tension monitoring in strip production process.

Action and use

effect:

Real time measurement of tension in materials such as strip steel,paper,textiles,etc.,converting mechanical force into electrical signals to provide accurate data for the control system.

Support tension closed-loop control to ensure stable tension during the production process and avoid material breakage or relaxation.

Purpose:

As the core sensor of industrial automation systems,it is used to monitor and control material tension,ensuring product quality and production efficiency.

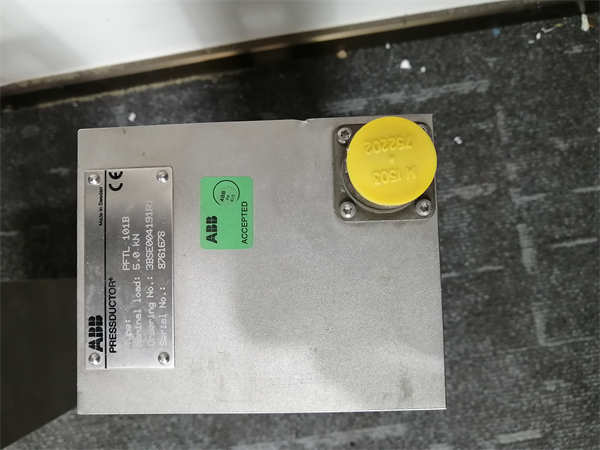

PFTL101B 5.0KN 3BSE004191R1 ABB

application area

Paper industry:used for tension measurement in paper machines,calenders,coating machines,and rewinding machines to ensure stable tension during paper production.

Metallurgy and metal processing:suitable for tension control of strip steel in pickling,annealing,and galvanizing production lines to improve product quality.

Textile and Printing:Monitor the tension of materials such as textiles and plastic films to avoid deformation or breakage during processing.

Other fields:Widely used in scenarios that require high-precision tension control,such as cable manufacturing,packaging material production,etc.

summarize

PFTL101B 5.0KN 3BSE004191R1 ABB horizontal pillow type tension gauge pressure head weighing sensor,with its high precision,high reliability,and resistance to harsh environments,has become a key equipment for industrial tension measurement,especially playing an important role in industries such as papermaking and metallurgy that require strict tension control.
