Description

The X20CP1486 B&R CPU module is a high-performance central processing unit in the B&R X20 series compact automation systems.This module is designed specifically for industrial automation applications,providing powerful processing capabilities and rich communication interfaces to meet various complex control requirements.The X20CP1486 CPU module adopts a fanless design,with compact size and sturdy and durable structure,suitable for harsh industrial environments.This module supports multiple communication protocols and fieldbuses,making it easy to integrate into various automation systems.The X20CP1486 B&R CPU module is suitable for complex automation applications that require high performance,high reliability,and flexibility,such as mechanical manufacturing,process control,and robotics technology.

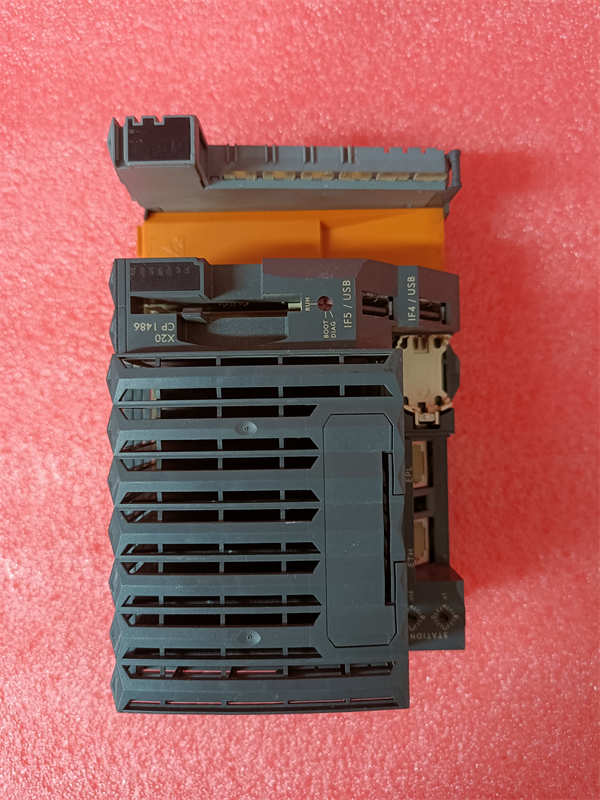

X20CP1486 B&R

technical specifications

Product model:X20CP1486

Manufacturer:B&R Industrial Automation

Product type:CPU module

Processor:x86 compatible processor

Memory:256 MB DDR2 SDRAM,1 MB SRAM

Program Memory:Removable CompactFlash Card

Interface:1x RS232,1x Ethernet,1x POWERLINK V1/V2,2x USB,1x X2X Link

Power supply voltage:24 V DC

Working temperature:0°C to+60°C(with derating)

Storage temperature:-25°C to+70°C

Protection level:IP20

Installation method:DIN rail installation

Main features and advantages

The X20CP1486 B&R CPU module has multiple key features that make it an ideal choice for industrial automation applications.This module uses high-performance x86 compatible processors,providing powerful processing capabilities to handle complex control algorithms and data processing tasks.This module has rich communication interfaces,including Ethernet,POWERLINK,RS232,and USB,supporting multiple communication protocols and fieldbus,and can be easily integrated into various automation systems.The X20CP1486 CPU module adopts a fanless design,with compact size and sturdy and durable structure,suitable for harsh industrial environments.This module also has powerful diagnostic functions,which can monitor the system status in real time,quickly locate and solve problems.This module is easy to configure and debug,which helps reduce operating costs.

application area

The X20CP1486 B&R CPU module is widely used in various industrial automation applications.In the mechanical manufacturing industry,this module is used to control equipment such as CNC machine tools,packaging machinery,and printing machinery.In the process control industry,it is used to control production processes in industries such as chemical,petroleum,and natural gas.In the field of robotics,this module is used to control industrial robots and automated production lines.In addition,the X20CP1486 B&R CPU module can also be used for other applications that require high performance,reliability,and flexibility,such as energy,transportation,and water treatment.

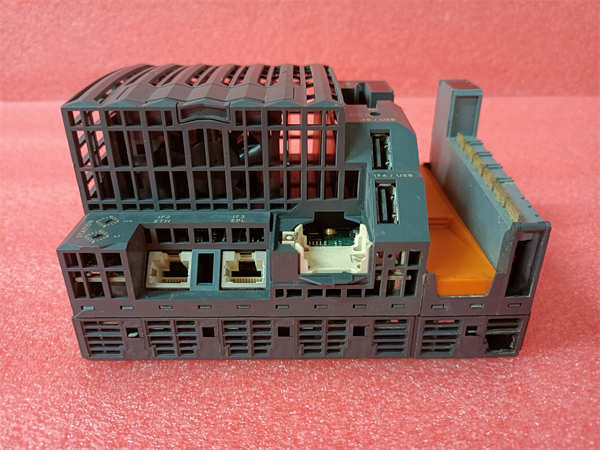

X20CP1486 B&R

Related products

X20CP1483:B&R X20 series economical CPU module.

X20CP1586:B&R X20 series high-performance CPU module.

X20BB80:B&R X20 series bus base module.

X20DI9371:B&R X20 series digital input module.

X20DO9322:B&R X20 series digital output module.

X20AI4622:B&R X20 series analog input module.

X20AO4622:B&R X20 series analog output module.

Installation and maintenance

Preparation before installation:Before installing the X20CP1486 B&R CPU module,please ensure that the installation environment meets the requirements,including temperature,humidity,and power supply.Check if the module is intact and undamaged.Install the module correctly according to the installation manual provided by B&R.Ensure that all connections are firm and reliable.

Maintenance suggestion:Regularly check the operating status of the X20CP1486 B&R CPU module.Clean the module to prevent the accumulation of dust and dirt.Regularly check the connecting cables and interfaces to ensure a secure connection.According to the maintenance guidelines provided by B&R,conduct regular system testing and calibration.If any faults or abnormalities are found,please contact B&R technical support in a timely manner.

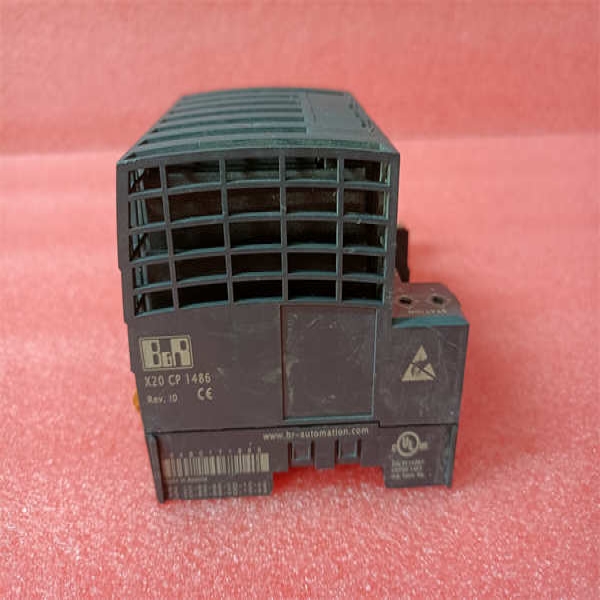

X20CP1486 B&R

Product Guarantee

B&R provides comprehensive product assurance,including quality assurance and after-sales service,for the X20CP1486 B&R CPU module.B&R is committed to providing high-quality products and reliable solutions to ensure that customers’industrial automation applications are guaranteed.
