Description

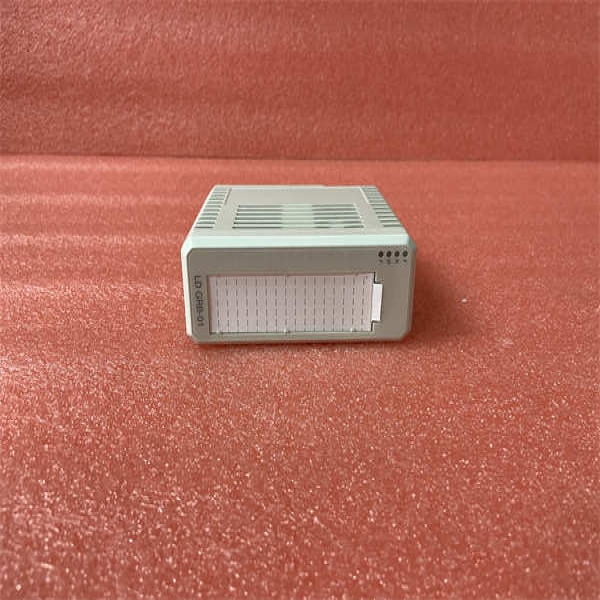

ABB LDGRB-01 3BSE013177R1 is a module terminal unit of ABB S800 I/O series.The terminal unit of this module is mainly used to connect on-site equipment with ABB control systems,providing reliable signal transmission and power distribution.LDGRB-01 aims to simplify on-site wiring,reduce installation costs,and improve system reliability.As an important component of the ABB S800 I/O system,the 3BSE013177R1 module terminal unit is widely used in the field of industrial automation,especially in situations where high-density I/O connections are required.The design of this module fully considers the harshness of industrial environments,ensuring stable operation under various conditions.

technical specifications

Product model:LDGRB-01 3BSE013177R1

manufacturer:ABB

Product Type:Modular Terminal Unit

Applicable modules:ABB S800 I/O series modules

Voltage level:24V DC

Installation method:DIN rail installation

Working temperature range:-40°C to+70°C

Protection level:IP20

Shell material:flame retardant plastic

Main features and advantages

The ABB LDGRB-01 3BSE013177R1 module terminal unit has the following significant features and advantages:

High density connection:Provides a large number of connection terminals for easy connection of on-site devices.

High reliability:Using high-quality materials and design to ensure the stability and reliability of signal transmission.

Easy to install and maintain:DIN rail installation simplifies the installation process.Modular design for easy maintenance and replacement.

Compact design:saves control cabinet space and reduces installation costs.

Industrial grade design:capable of stable operation in harsh industrial environments.

Good compatibility:Compatible with ABB S800 I/O series modules and ABB control systems.

Safe and reliable:It has good electrical insulation performance and protection level,ensuring safe operation.

application area

The ABB LDGRB-01 3BSE013177R1 module terminal unit is widely used in the following industrial fields:

Oil and gas:used for automated control of oil and gas extraction,transportation,and processing processes.

Chemical industry:used for automated control of chemical production processes.

Electricity:Used for automated control of power generation,transmission,and distribution processes.

Paper making:used for automated control of the paper production process.

Cement:Used for automated control in the cement production process.

Metallurgy:Used for automated control of metallurgical production processes.

Water treatment:used for automated control of water treatment processes.

Related products

ABB S800 I/O series modules:I/O modules used in conjunction with the LDGRB-01 3BSE013177R1 module terminal unit.

ABB AC 800M controller:a controller used for controlling and managing automation systems.

ABB Remote I/O Module:A remote I/O module used to expand an I/O system.

ABB power module:a module that provides power to automation systems.

ABB communication module:a module used for communication in automation systems.

ABB cables and connectors:cables and connectors used to connect automation system equipment.

Installation and maintenance

Preparation before installation:Before installing the LDGRB-01 3BSE013177R1 module terminal unit,please ensure that the control cabinet is correctly installed and grounded.Check if the module is damaged and prepare the necessary installation tools and materials.During installation,please follow ESD protection measures to avoid static electricity damaging the module.

Maintenance suggestion:Regularly check whether the connection of the LDGRB-01 3BSE013177R1 module terminal unit is secure and clean the dust on the module.Regularly inspect cables and connectors for damage.

Product Guarantee

ABB provides product assurance,including quality assurance and technical support,for the LDGRB-01 3BSE013177R1 module terminal unit.
