Description

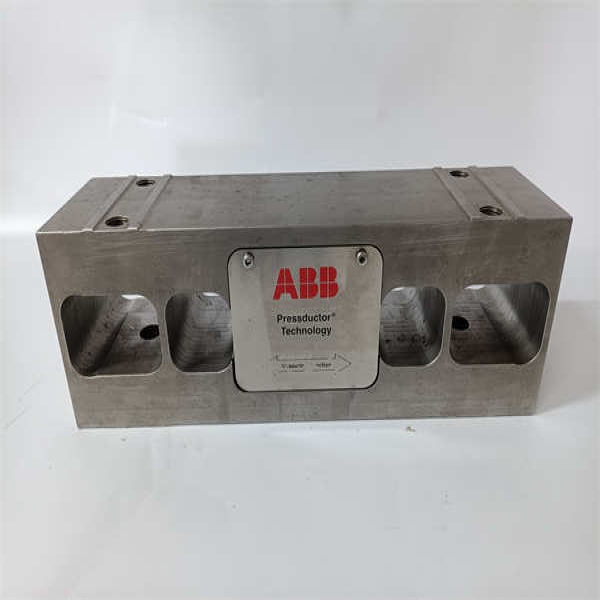

PFTL101B 5.0KN 3BSE004191R1 is a transverse measurement piezoelectric head sensor produced by ABB,specifically designed for force measurement in industrial applications.This sensor is capable of accurately measuring lateral forces and providing reliable data in various industrial environments.PFTL101B belongs to ABB’s sensor product line,aiming to provide high-quality and high-precision force measurement solutions.The piezoelectric technology enables the sensor to maintain stable performance in harsh industrial environments.This sensor plays a key role in automation systems,providing accurate force measurement data to help optimize production process control and improve product quality.By providing stable lateral force measurement,the PFTL101B 5.0KN 3BSE004191R1 sensor helps ensure precise operation and efficient performance of industrial automation systems.

technical specifications

Product model:PFTL101B 5.0KN 3BSE004191R1

manufacturer:ABB

Product type:Horizontal measurement pressure magnetic pressure head sensor

Measurement range:5.0KN

Measurement method:lateral force measurement

Sensor type:pressure magnetic type

Output signal:Analog signal(such as 4-20mA)

Accuracy:High precision

Protection level:Industrial grade protection

Working temperature:Industrial grade wide temperature range

Main features and advantages

The PFTL101B 5.0KN 3BSE004191R1 transverse measurement pressure magnetic head sensor has the following significant characteristics and advantages:

High precision measurement:using pressure magnetic technology to provide high-precision lateral force measurement,ensuring the accuracy and reliability of measurement results.

Durable and sturdy:Adopting industrial grade design,it can operate stably in harsh industrial environments,ensuring the reliability and durability of the sensor.

Wide measurement range:5.0KN measurement range,suitable for various industrial applications.

Analog signal output:Provides standard analog signal output for easy integration with various control systems.

Easy to install and maintain:Compact design,easy to install and maintain,reducing downtime.

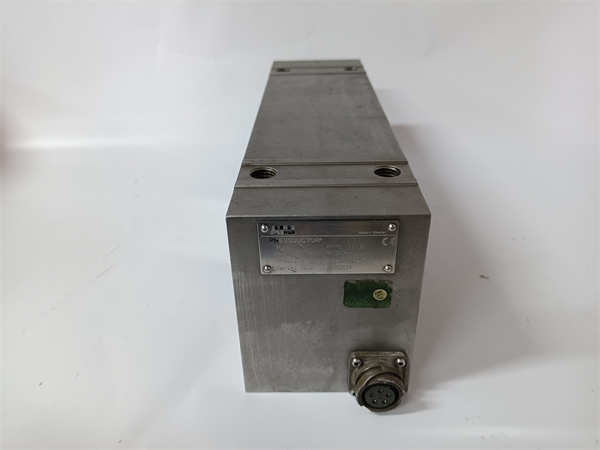

PFTL101B 5.0KN 3BSE004191R1 ABB

application area

PFTL101B 5.0KN 3BSE004191R1 transverse measurement pressure magnetic head sensor is widely used in the following industrial fields:

Rolling steel:used to measure the lateral force during the rolling process and control the rolling accuracy.

Paper making:used to measure paper tension and control paper quality.

Textile:Used to measure fabric tension and control fabric quality.

Printing:Used to measure printing pressure and control printing quality.

Automated assembly:used to measure lateral forces during the assembly process and control assembly accuracy.

Related products

ABB force sensor:used to measure various types of forces.

ABB pressure sensor:used to measure various types of pressure.

ABB tension sensor:used to measure the tension of materials.

ABB control system:used for controlling and monitoring industrial processes.

ABB HMI：Used for monitoring and manipulating sensor data.

Installation and maintenance

Preparation before installation:Before installing the PFTL101B 5.0KN 3BSE004191R1 transverse measurement pressure magnetic head sensor,please ensure that the installation position meets the requirements and that the sensor is firmly installed.Carefully read the product manual to understand the correct installation steps and precautions.Ensure that all necessary cables and connectors are ready.

Maintenance suggestion:Regularly clean the PFTL101B 5.0KN 3BSE004191R1 transverse measurement pressure magnetic head sensor to prevent dust and dirt from affecting its performance.Check all cables and connectors for looseness or damage,and replace them promptly.Regularly check the operation status of sensors to ensure their normal functioning.Pay attention to the temperature and voltage of the monitoring system to ensure that it operates within a safe range.If there are any abnormal situations,please contact technical support personnel in a timely manner.

PFTL101B 5.0KN 3BSE004191R1 ABB

Product Guarantee

ABB provides comprehensive product support for the PFTL101B 5.0KN 3BSE004191R1 transverse measurement pressure magnetic head sensor.The product undergoes strict quality control and testing before leaving the factory to ensure its performance and reliability.
