Description

IS220PRTDH1BC 336A5026ADP13 GE resistance temperature input module is a high-performance resistance temperature detector(RTD)input module in the Mark VIe series distributed control system of General Electric(GE).This IS220PRTDH1BC 336A5026ADP13 GE resistance temperature input module is designed for precise measurement of temperature signals from various industrial RTD sensors and is a key component in building reliable temperature monitoring systems.As an important component of the Mark VIe platform,the IS220PRTDH1BC 336A5026ADP13 GE resistance temperature input module can accurately convert on-site temperature data into digital signals for real-time process monitoring,data analysis,and control decision-making in the control system.Its compact design and powerful functionality make the IS220PRTDH1BC 336A5026ADP13 GE resistance temperature input module an ideal choice for achieving high-precision temperature measurement in various industrial applications.

The IS220PRTDH1BC 336A5026ADP13 GE resistance temperature input module typically supports multiple RTD input channels and can simultaneously collect signals from multiple temperature sensors.Each channel has high-precision analog-to-digital conversion capability and advanced signal conditioning circuits,which can effectively suppress noise and interference,ensuring the accuracy and stability of temperature data.In the GE Mark VIe control system,the IS220PRTDH1BC 336A5026ADP13 GE resistance temperature input module is used in conjunction with the corresponding I/O terminal board to achieve fast and reliable data transmission through high-speed Ethernet for data communication.The application of this IS220PRTDH1BC 336A5026ADP13 GE resistance temperature input module helps to improve the safety,efficiency,and product quality of industrial processes,and is an indispensable key component of modern industrial automation.

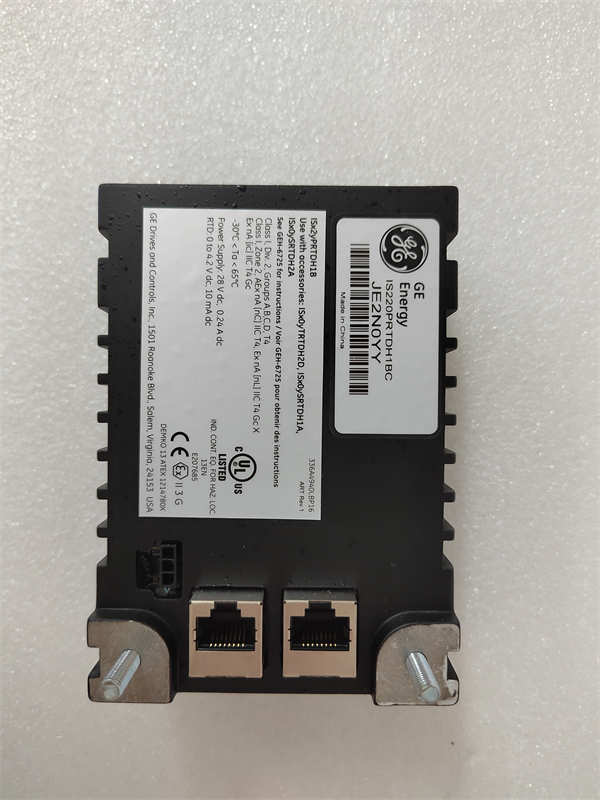

IS220PRTDH1BC 336A5026ADP13 GE

technical specifications

Product model:IS220PRTDH1BC

manufacturer:GE

Product Type:Resistance Temperature Input Module(RTD Input Module)

Series:Mark VIe

Number of input channels:8

Supporting sensor types:Resistance Temperature Detector(RTD),supporting 2-wire,3-wire,and 4-wire connections

A/D conversion resolution:14 bits

Maximum wire resistance:15 ohms(bidirectional)

Common mode voltage range:±5 V

Power supply voltage:28 V DC(typical value)

Working temperature:-30°C to+65°C

Communication interface:Dual redundant Ethernet interface(RJ45)

Dimensions(height x width):approximately 33.02 cm x 17.8 cm

Main features and advantages

High precision temperature measurement:IS220PRTDH1BC 336A5026ADP13 GE resistance temperature input module has a high-resolution analog-to-digital converter and optimized signal processing algorithm,which can provide accurate and reliable temperature measurement data,meeting the strict requirements of temperature control in industrial processes.

Multi channel input:A single IS220PRTDH1BC 336A5026ADP13 GE resistance temperature input module supports up to 8 RTD input channels,enabling simultaneous monitoring of multiple temperature points,reducing system complexity and cost.

Flexible Sensor Connection:IS220PRTDH1BC 336A5026ADP13 GE Resistance Temperature Input Module supports the connection of 2-wire,3-wire,and 4-wire RTD sensors,providing flexible on-site wiring solutions to meet different application needs.

Redundant Ethernet Communication:Equipped with dual redundant Ethernet interfaces,the IS220PRTDH1BC 336A5026ADP13 GE resistance temperature input module can achieve high reliability data transmission,ensuring real-time and stable delivery of temperature data to the control system.

Industrial grade robust design:IS220PRTDH1BC 336A5026ADP13 GE resistance temperature input module adopts industrial grade components and surface mount technology,with good anti vibration,anti impact and anti electromagnetic interference capabilities,and can operate stably in harsh industrial environments.

Fault diagnosis function:The module integrates LED indicator lights,which can provide real-time status and fault diagnosis information,facilitating system maintenance and troubleshooting for users,and improving the maintainability of the system.

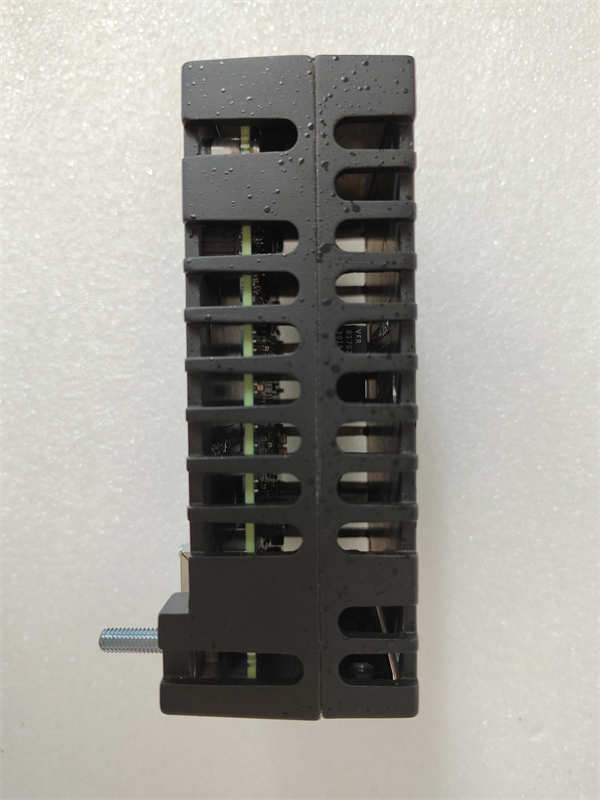

IS220PRTDH1BC 336A5026ADP13 GE

application area

The IS220PRTDH1BC 336A5026ADP13 GE resistance temperature input module,as an important component of the GE Mark VIe control system,is widely used in industrial fields that require precise temperature monitoring and control

Power generation industry:used to monitor the bearing temperature,exhaust temperature,and stator winding temperature of key equipment such as gas turbines,steam turbines,and generators,ensuring the safe and stable operation of the equipment.

Petrochemical industry:used to monitor the temperature of equipment such as reactors,heat exchangers,pipelines,storage tanks,etc.,to ensure that the process is carried out within a safe and optimized temperature range.

Metallurgical industry:used to monitor the temperature of equipment such as blast furnaces,converters,continuous casting machines,etc.,to achieve precise smelting and production process control.

In other industrial fields,including but not limited to cement,paper,pharmaceutical,food and beverage industries,the IS220PRTDH1BC 336A5026ADP13 GE resistance temperature input module can play a key role in automation systems that require precise temperature measurement and monitoring.

Related products

IS220PRTDH1A:Similar GE RTD input module models may differ in certain technical specifications or features.

IS200SRTDH1A:GE Mark VI series RTD terminal board,used in conjunction with I/O modules such as IS220PRTDH1BC.

IS230STTCH1A:GE Mark VIe series thermocouple input module for measuring higher temperature ranges.

IS220DOICH1A:GE Mark VIe series digital output module,used to control on-site actuators.

IS220DIHCH1A:GE Mark VIe series digital input module,used to receive on-site switch signals.

MKVIe control system:GE’s latest generation gas turbine and industrial process control system,IS220PRTDH1BC is its important I/O component.

Installation and maintenance

Preparation before installation:Before installing the IS220PRTDH1BC 336A5026ADP13 GE resistance temperature input module,please refer to the relevant installation manual and specifications of the GE Mark VIe system.Ensure that the installation environment meets the operating temperature and humidity requirements of the module.Check if the appearance of IS220PRTDH1BC module is intact,and if the connectors and terminals are clean and undamaged.Prepare the necessary tools,including screwdrivers,wire strippers,and suitable cables for connecting RTD sensors.Confirm that the power supply of the control system has been disconnected and take necessary safety precautions.Install the IS220PRTDH1BC module onto the corresponding cabinet or backplane according to the system design requirements to ensure reliable fixation.

Maintenance suggestion:In order to ensure the long-term stable operation of IS220PRTDH1BC 336A5026ADP13 GE resistance temperature input module,it is recommended to perform preventive maintenance regularly.Regularly check if the connectors and terminals of the module are securely fastened to prevent signal problems or malfunctions caused by looseness.Keep the surface of IS220PRTDH1BC module clean and avoid erosion by dust and corrosive substances.Regularly check the RTD sensor and its wiring connected to IS220PRTDH1BC to ensure reliable connection and good shielding grounding.Avoid using in environments beyond the specifications of IS220PRTDH1BC.If abnormal module operation is found,timely inspection and troubleshooting should be carried out,and the module should be replaced if necessary.All maintenance operations should be carried out by personnel with professional qualifications and in accordance with relevant safety operating procedures.Before making any electrical connections or maintenance operations,be sure to disconnect the system power supply.

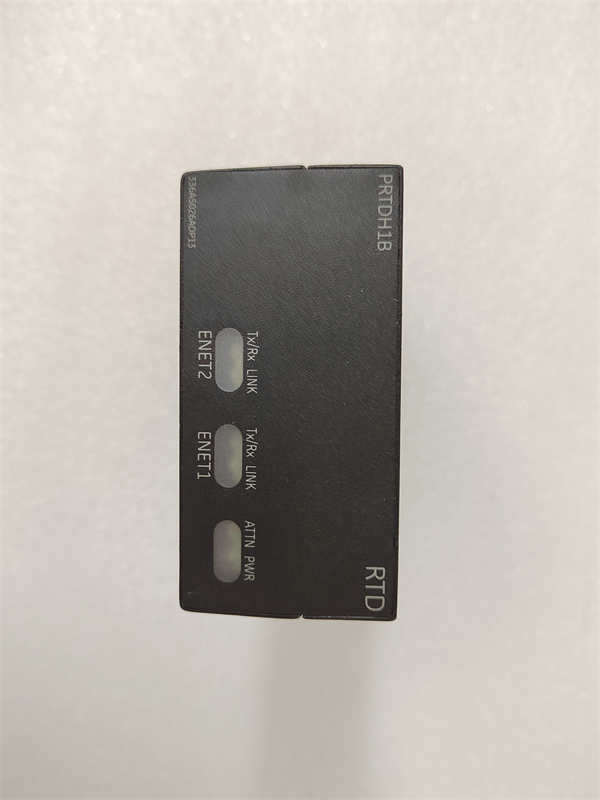

IS220PRTDH1BC 336A5026ADP13 GE

Product Guarantee

IS220PRTDH1BC 336A5026ADP13 GE resistance temperature input module provides comprehensive quality assurance.The IS220PRTDH1BC module has undergone strict quality inspection and performance testing to ensure its stable and reliable operation under normal working conditions.
