Description

RF522 3BSE000743R1 ABB 18SU subframe,including backplate,is a critical mechanical and electrical infrastructure component in ABB’s Advant Master process control system.This RF522 3BSE000743R1 ABB 18SU subframe,including a backplane,provides a sturdy platform for installing and connecting various control modules and I/O modules of the Advant Master series.The height specification of its 18SU(18 sub frame units)enables the RF522 3BSE000743R1 ABB 18SU sub frame,including the backplane,to accommodate a considerable number of modules,thereby constructing a high-density control system.As an important component of the Advant Master system,the RF522 3BSE000743R1 ABB 18SU subframe,including a backplane,not only provides physical installation space for modules,but more importantly,it integrates a backplane to provide power distribution and system bus connections for modules installed on it,ensuring efficient communication between modules and between modules and system controllers.

RF522 3BSE000743R1 ABB 18SU subframe,including backplate design,fully considers the reliability and maintainability of industrial environments.Its sturdy structure can withstand the vibrations and impacts of industrial sites,while the integrated backplane simplifies the electrical connections between modules,reduces the complexity of external wiring,and improves the overall reliability of the system.In the ABB Advant Master control system,the RF522 3BSE000743R1 ABB 18SU subframe,including the backplane,is the foundation for building a stable and scalable control system.By using RF522 3BSE000743R1 ABB 18SU subframe with backplane,users can flexibly configure the required control functions and I/O capacity to meet various industrial process automation needs.

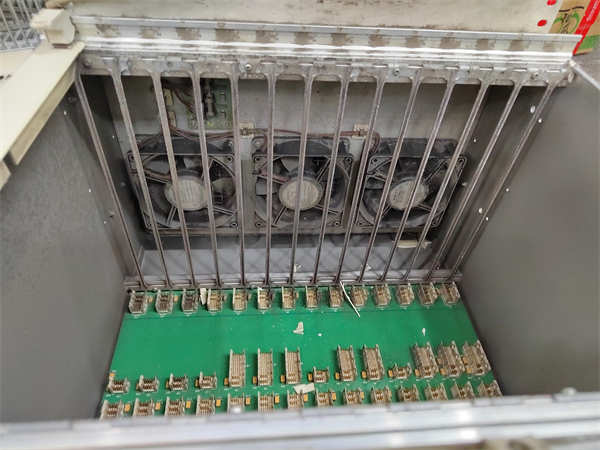

RF522 3BSE000743R1 ABB

technical specifications

Product model:RF522

Order number:3BSE000743R1

manufacturer:ABB

Product type:18SU subframe,including backplate

Compatible systems:ABB Advant Master

Size(height):18 sub frame units(18SU)

Backboard:Integrated

Installation method:Cabinet style installation

Material:Industrial grade metal

Main features and advantages

High density module installation:RF522 3BSE000743R1 ABB 18SU subframe,including backplate to provide 18SU installation space,can accommodate a large number of control modules and I/O modules,very suitable for building high channel density control systems,saving control cabinet space.

Integrated Backboard:RF522 3BSE000743R1 ABB 18SU Sub frame,which includes a backplane integrated with the backplane,provides reliable power distribution and system bus connections for modules installed on it,simplifies electrical connections between modules,and improves system reliability.

Robust industrial design:RF522 3BSE000743R1 ABB 18SU subframe,including backplate made of industrial grade materials,with a sturdy structure that can withstand vibrations and impacts in industrial environments,ensuring stable system operation.

Easy to install and maintain:The RF522 3BSE000743R1 ABB 18SU subframe,including a backplane design,considers the convenience of installation and maintenance.The modules can be easily plugged in and out,simplifying the assembly and maintenance of the system.

Flexible system expansion:RF522 3BSE000743R1 ABB 18SU subframe,including backplane,can install different types of Advant Master modules according to actual application needs,providing flexible system configuration and expansion capabilities.

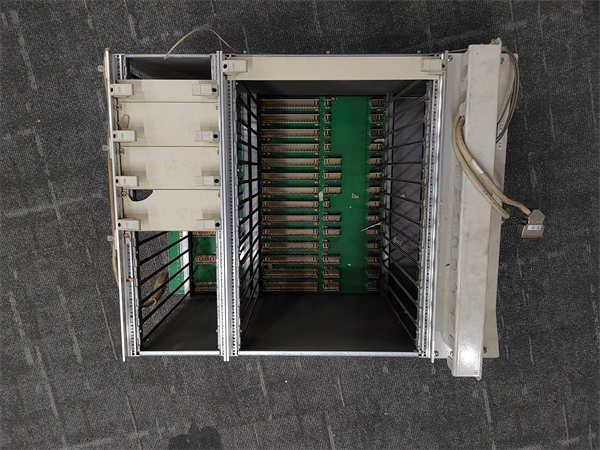

RF522 3BSE000743R1 ABB

application area

RF522 3BSE000743R1 ABB 18SU subframe,including backplate,is a key component of ABB Advant Master control system and widely used in various industrial fields

Process Control System(PCS):In industries such as chemical,petrochemical,power,metallurgy,etc.,RF522 3BSE000743R1 ABB 18SU subframe,including backplate,is used to build control cores,install various controller modules,I/O modules,and communication modules,and achieve comprehensive automation control of the production process.

Factory Automation:In industries such as automotive manufacturing,food and beverage,and pharmaceuticals,RF522 3BSE000743R1 ABB 18SU subframe,including backplate,is used to build control systems for production lines,supporting the connection and management of various sensors,actuators,and control equipment.

Other industrial fields:RF522 3BSE000743R1 ABB 18SU subframe,including backplate,can also be applied to automation systems such as water treatment,cement,papermaking,etc.that require centralized control and management of a large number of I/O signals.

Related products

RF520:ABB Advant Master series 12SU subframe,including backplane,suitable for systems with fewer I/O points.

RF533:ABB Advant OCS series 12SU subframe,including backplate,used for different ABB control platforms.

BB512:The ABB Advant Master backplate that is compatible with RF522 may be provided as a separate spare part.

PM571:ABB AC500 series PLC controller,suitable for different automation application scenarios.

S800 I/O module:ABB’s modular I/O system that can be installed on the RF522 subframe for signal acquisition and control output.

Installation and maintenance

Preparation before installation:Before installing RF522 3BSE000743R1 ABB 18SU subframe,including backplate,please refer to the installation manual and technical specifications of ABB Advant Master system.Ensure that the size and structure of the control cabinet can accommodate the RF522 subframe and all modules planned to be installed on it.Check if the RF522 subframe and integrated backplate are intact,without any physical damage or deformation.Prepare the necessary installation tools,such as bolts,nuts,and wrenches.Determine the installation position of RF522 in the control cabinet according to the system design,and firmly fix it inside the cabinet with appropriate fasteners.Ensure smooth installation of the subframe,providing a stable foundation and reliable electrical connections for the subsequent installation of Advant Master control modules and I/O modules.

Maintenance suggestion:In order to ensure the long-term stable operation of RF522 3BSE000743R1 ABB 18SU subframe,including backplate,it is recommended to conduct regular inspections and maintenance.Regularly check whether the fixing bolts of RF522 subframe are loose,and tighten them in a timely manner if they are loose.Keep the subframe and backplate clean to avoid the accumulation of dust and corrosive substances that may affect module insertion and electrical connections.Regularly check whether the connections of various modules installed on the RF522 subframe are reliable,ensuring good electrical interface contact between the modules and the backplane.Avoid using under environmental conditions beyond the RF522 specification range.If any physical damage or deformation is found on the subframe or backplate,it should be replaced promptly.All maintenance operations should be carried out by qualified professionals and strictly comply with relevant safety regulations.Before performing any maintenance operation,be sure to disconnect the power supply of the control system.

RF522 3BSE000743R1 ABB

Product Guarantee

ABB has undergone strict quality inspection and performance testing on the RF522 3BSE000743R1 ABB 18SU subframe,including the backplate subframe,to ensure its stable and reliable operation under normal working conditions.
