Description

The BRAD Communications PC104-DPIO DRL-DPM-BKF Cx Profibus Scanner Card is a compact,high-performance Profibus DP master card that complies with the PC/104 specification and is designed specifically for embedded industrial control applications.As a professional product of BRAD Communications in the field of industrial communication,the BRAD Communications PC104-DPIO DRL-DPM-BKF Cx Profibus scanner card enables embedded systems to be easily integrated into the Profibus DP network,acting as a master and facilitating high-speed and reliable data exchange with Profibus DP slave devices.This card integrates a powerful Profibus communication controller that can handle complex Profibus DP protocols,enabling real-time monitoring and control of field devices.The compact size and low power consumption of the BRAD Communications PC104-DPIO DRL-DPM-BKF Cx Profibus scanner card make it ideal for resource constrained embedded applications such as small PLCs,distributed IO systems,and special-purpose industrial control equipment.By using the BRAD Communications PC104-DPIO DRL-DPM-BKF Cx Profibus scanner card,users can build efficient and reliable Profibus DP networks,achieving seamless integration of industrial automation systems.

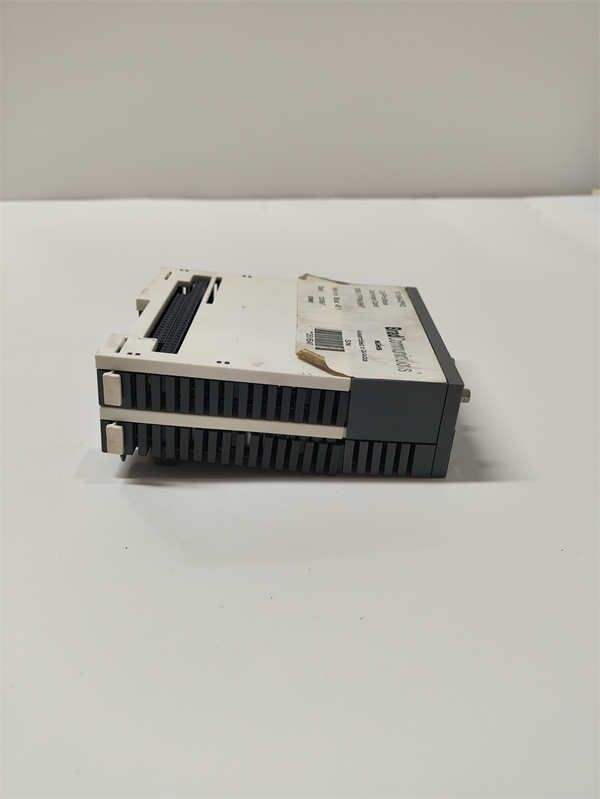

PC104-DPIO DRL-DPM-BKF BRAD COMMUNICATIONS

technical specifications

Product model:PC104-DPIO DRL-DPM-BKF

manufacturer:BRAD COMMUNICATIONS

Product Type:Cx Profibus DP Scanner Card(Master Station Card)

Bus interface:PC/104

Profibus interface:1 x 9-pin D-sub connector(compliant with IEC 61158-2)

Profibus protocol:Profibus DP-V0,DP-V1,DP-V2

Baud rate:9.6 kbit/s to 12 Mbit/s,automatic baud rate detection

Power requirements:+5V DC

Size:PC/104 standard size

Main features and advantages

The BRAD Communications PC104-DPIO DRL-DPM-BKF Cx Profibus scanner card,as a high-performance Profibus DP master card,has many significant features and advantages,making it an ideal choice for embedded industrial automation applications.

Powerful Profibus DP Function:BRAD Communications PC104-DPIO DRL-DPM-BKF supports Profibus DP-V0,DP-V1,and DP-V2 protocols,which can meet various application requirements,including high-speed data exchange,periodic and non periodic communication,and diagnostic functions.

High speed and reliable communication:This scanner card supports up to 12 Mbit/s Profibus baud rate and has automatic baud rate detection function,ensuring fast and stable data transmission with slave devices in the network.

PC/104 compatibility:BRAD Communications PC04-DPIO DRL-DPM-BKF complies with the PC/104 specification and has the characteristics of small size and low power consumption,making it very suitable for integration into embedded systems with limited space.Its standard PC/104 bus interface facilitates connection with various PC/104 CPU boards and other expansion cards.

Easy to integrate and develop:BRAD Communications typically provides corresponding drivers and development toolkits,simplifying the integration and application development process of PC104-DPIO DRL-DPM-BKF for users in various operating systems and development environments,and shortening product time to market.

Flexible configuration options:This scanner card typically provides flexible configuration options,allowing users to configure Profibus network parameters,communication modes,and diagnostic functions according to specific application requirements.

High reliability and stability:As an industrial grade product,BRAD Communications PC104-DPIO DRL-DPM-BKF pays attention to high reliability and stability in both design and manufacturing processes,and can operate stably for a long time in harsh industrial environments.

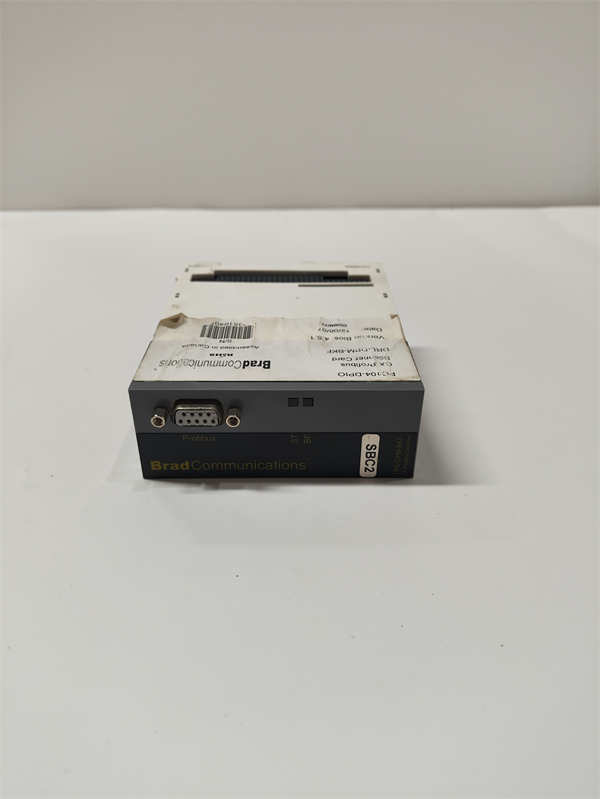

PC104-DPIO DRL-DPM-BKF BRAD COMMUNICATIONS

application area

The BRAD Communications PC104-DPIO DRL-DPM-BKF Cx Profibus scanner card is widely used in various embedded industrial automation fields due to its compact size,low power consumption,and powerful Profibus DP communication capabilities.

Embedded PLC and Controller:BRAD Communications PC104-DPIO DRL-DPM-BKF can be integrated into miniaturized PLCs or dedicated controllers,enabling them to have Profibus DP master station functionality for controlling and managing field devices connected to the Profibus network.

Distributed I/O System:This scanner card can serve as the control core of a distributed I/O system,exchanging high-speed data with remote I/O modules through the Profibus DP network to build a flexible and scalable automation system.

Special purpose industrial equipment:For example,in some special industrial equipment that requires real-time data acquisition and control,such as robot controllers,machine vision systems,and motion control systems,BRAD Communications PC104-DPIO DRL-DPM-BKF can provide a reliable Profibus communication interface.

Human Machine Interface(HMI):In some embedded HMI devices,BRAD Communications PC104-DPIO DRL-DPM-BKF can be used to communicate with PLCs or other control devices connected to the Profibus network,enabling operators to monitor and control industrial processes.

Testing and Measurement Equipment:In some industrial testing and measurement applications,BRAD Communications PC104-DPIO DRL-DPM-BKF can be used for data communication with sensors,actuators,or other measurement devices that support Profibus DP interface.

Related products

Products related to the BRAD Communications PC104-DPIO DRL-DPM-BKF Cx Profibus scanner card may include:

BRAD Communications PC104 Profibus Slave Card:Used to build embedded devices that require Profibus DP slave functionality.

BRAD Communications Other PC/104 interface cards,such as Ethernet cards,serial port cards,digital I/O cards,and analog I/O cards,are used to expand the functionality of embedded systems.

BRAD Communications Profibus connectors and cables:used to build reliable physical connections for Profibus DP networks.

Third party PC/104 CPU board:Used in conjunction with BRAD Communications PC104-DPIO DRL-DPM-BKF to build a complete embedded control system.

Profibus DP slave devices,such as PLCs,I/O modules,frequency converters,sensors,and actuators,are used to build a Profibus DP network with BRAD Communications PC104-DPIO DRL-DPM-BKF.

Installation and maintenance

Preparation before installation:Before installing the BRAD Communications PC104-DPIO DRL-DPM-BKF Cx Profibus scanner card,please be sure to refer to the relevant hardware installation manual and technical specification documents.Ensure that the PC/104 bus slot of the embedded system is available and the power is turned off.Carefully inspect the PC104-DPIO DRL-DPM-BKF card for any physical damage.According to the installation specifications of PC/104 bus,carefully insert the card into the bus slot and ensure a secure connection.Connect the Profibus DP network cable to the 9-pin D-sub connector on the card and ensure a reliable connection.According to the wiring requirements of Profibus DP network,connect the terminal resistors correctly.

Maintenance suggestion:The maintenance of BRAD Communications PC04-DPIO DRL-DPM-BKF card is mainly to ensure that its working environment meets the requirements and avoid excessive temperature and humidity.Regularly check whether the Profibus DP network connection is loose or damaged.If you need to replace the PC104-DPIO DRL-DPM-BKF card,please make sure to turn off the system power first and follow the correct steps to remove the old card and insert the new card.It is recommended to regularly check whether the relevant drivers and software need to be updated to ensure that the BRAD Communications PC104-DPIO DRL-DPM-BKF card can perform at its best.

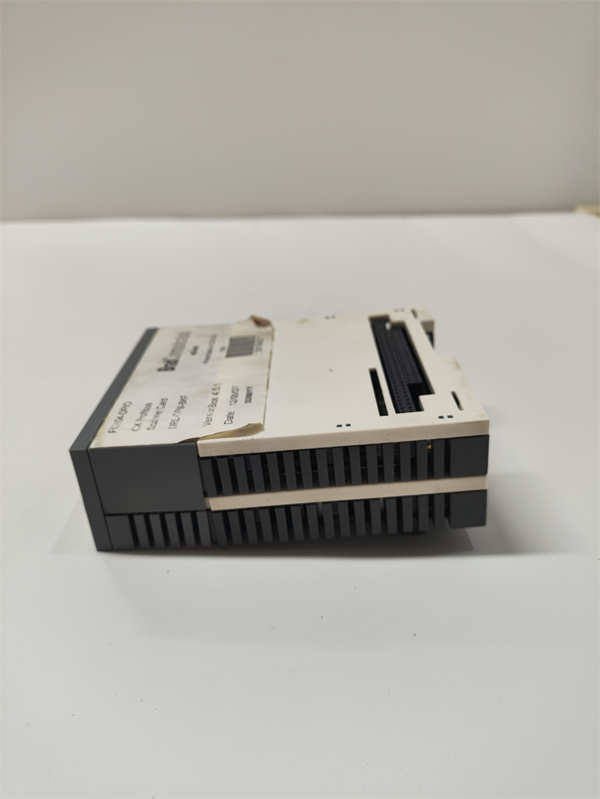

PC104-DPIO DRL-DPM-BKF BRAD COMMUNICATIONS

Product Guarantee

BRAD Communications provides product quality assurance for its PC104-DPIO DRL-DPM-BKF Cx Profibus scanner card.The BRAD Communications PC104-DPIO DRL-DPM-BKF card has undergone rigorous testing to ensure compliance with relevant industry standards and technical specifications.
