Description

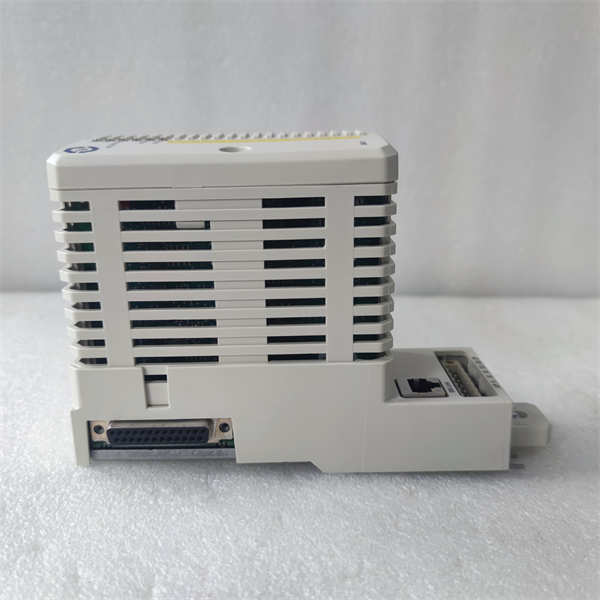

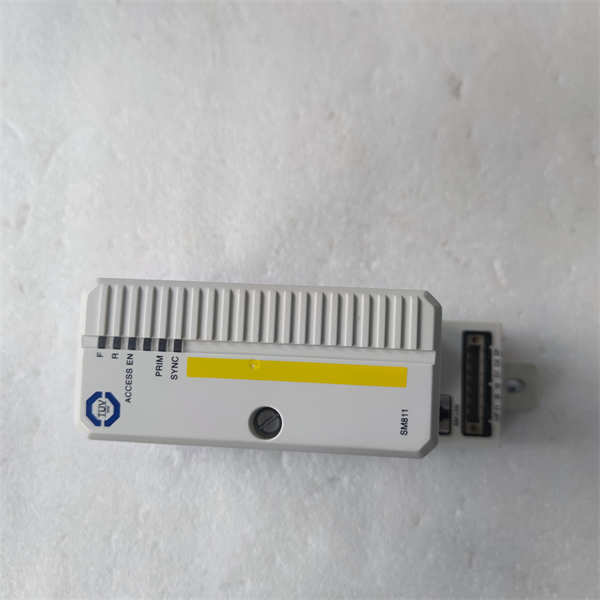

ABB SM811K01 3BSE018173R1 is a high-performance safety CPU module belonging to ABB’s safety control system S800 I/O series.As ABB’s leading product in industrial automation and safety,the ABB SM811K01 3BSE018173R1 safety CPU module is designed specifically for industrial applications that require advanced safety features and high reliability.This module is the core of the safety control system,responsible for executing safety related control logic,monitoring safety input signals,and controlling safety output signals to ensure the safety of personnel,equipment,and the environment.ABB SM811K01 3BSE018173R1 complies with the IEC 61508 standard and typically achieves SIL 3 safety level,making it suitable for various applications that require functional safety.With its powerful processing capabilities,rich communication interfaces,and comprehensive security features,the ABB SM811K01 3BSE018173R1 security CPU module is an ideal choice for building high-performance,high reliability security control systems.

SM811K01 3BSE018173R1 ABB

technical specifications

Product model:SM811K01 3BSE018173R1

manufacturer:ABB

Product type:Secure CPU module

Safety level:SIL 3(compliant with IEC 61508)

Diagnostic function:Comprehensive self diagnosis and external diagnostic capabilities

Main features and advantages

The ABB SM811K01 3BSE018173R1 safety CPU module has multiple key features and advantages,making it an ideal choice for building safety critical industrial applications.

High safety:ABB SM811K01 3BSE018173R1 complies with IEC 61508 SIL 3 safety level requirements and can meet the safety needs of various high-risk industrial applications,such as emergency stop systems,safety interlock systems,and flame detection systems.

High performance processing capability:This secure CPU module is equipped with a powerful processor that can quickly and efficiently execute complex security control logic,ensuring real-time performance and response speed of the system.

Comprehensive diagnostic function:ABB SM811K01 3BSE018173R1 has complete self diagnosis and external diagnostic functions,which can monitor the status of the module itself and the connected safety input/output modules in real time,detect and report potential faults in a timely manner,and improve the availability and maintainability of the system.

Flexible communication interface:This secure CPU module is typically equipped with multiple communication interfaces,such as Ethernet,PROFIBUS DP,etc.,to facilitate integration and data exchange with other automation systems and security devices.

Easy to program and configure:ABB provides professional safety programming tools such as SafeMove and Safety Builder,making the safety logic programming,configuration,and debugging of ABB SM811K01 3BSE018173R1 simpler and more efficient.

Seamless integration with S800 I/O series:As a member of the S800 I/O series,ABB SM811K01 3BSE018173R1 can seamlessly integrate with ABB’s various safety and standard I/O modules,building a flexible and scalable safety control system.

High reliability and availability:ABB SM811K01 3BSE018173R1 adopts high reliability hardware design and redundant configuration options to ensure stable and reliable operation of the system in various industrial environments,minimizing downtime due to failures.

SM811K01 3BSE018173R1 ABB

application area

The ABB SM811K01 3BSE018173R1 safety CPU module is widely used in various industrial fields that require functional safety assurance.

Emergency Shutdown System(ESD):In various industrial processes,ABB SM811K01 3BSE018173R1 serves as the core of the ESD system,capable of reliably monitoring hazardous situations and performing emergency shutdown operations to protect personnel and equipment safety.

Safety interlock system:In the mechanical,electrical,and process industries,ABB SM811K01 3BSE018173R1 is used to construct safety interlock circuits to prevent equipment from starting or operating under unsafe conditions.

Flame detection and protection system:In industries such as petroleum and chemical,ABB SM811K01 3BSE018173R1 is used to monitor flame status and trigger corresponding protective measures when a flame is detected,such as shutting down fuel supply or activating fire suppression systems.

Safety Barrier and Isolation System:ABB SM811K01 3BSE018173R1 can be used in conjunction with safety barriers and other equipment to construct inherently safe circuits for safely connecting and controlling field equipment in hazardous areas.

Robot safety control:In industrial robot applications,ABB SM811K01 3BSE018173R1 is used to achieve safe motion control and area monitoring of robots,ensuring the safety of operators.

Process safety system:In process industries such as chemical and pharmaceutical,ABB SM811K01 3BSE018173R1 is used to build various process safety functions,such as pressure control,temperature control,and liquid level control,to prevent dangerous accidents.

Related products

The ABB products related to the ABB SM811K01 3BSE018173R1 safety CPU module include:

ABB SM810/SM812 series secure CPU modules:provide secure CPU modules with different performance and interface options to meet different application requirements.

ABB S800 I/O safety module:including safety digital input/output module,safety analog input/output module,and safety counter module,used to connect safety sensors and actuators on site.

ABB SafeMove：Safety function configuration and programming software for industrial robots.

ABB Safety Builder：Safety logic programming and configuration software for safety PLC.

ABB SIL 3 certified inverters and motors:can be integrated with ABB safety CPU modules to build a complete safety drive system.

ABB safety sensors and switches,such as safety light barriers,safety door switches,and emergency stop buttons,are used to provide safety input signals.

These products work in conjunction with the ABB SM811K01 3BSE018173R1 safety CPU module to build a complete safety control system that meets SIL 3 safety level requirements.

Installation and maintenance

Preparation before installation:Before installing the ABB SM811K01 3BSE018173R1 safety CPU module,please carefully read the relevant product manual and safety installation guide.Ensure that the installation environment meets the operating temperature,humidity,and electromagnetic compatibility(EMC)requirements of the module.Check if the appearance of the module is intact and there is no damage caused during transportation.Prepare the correct installation tools and wiring materials that meet safety standards.Connect the power supply,communication interface,and safety input/output module correctly according to the wiring diagram.Make sure the grounding connection is reliable to ensure the safe operation of the system.

Maintenance suggestion:The maintenance of ABB SM811K01 3BSE018173R1 safety CPU module should be strictly carried out in accordance with ABB’s safety maintenance regulations.It is recommended to regularly check whether the connection terminals of the module are loose or corroded,and tighten and clean them.Regularly clean the dust on the surface of the module to maintain good heat dissipation.Regularly check whether the power supply voltage is stable within the allowable range.As this module is a safety critical component,any repair or replacement operations should be carried out by qualified personnel who have received specialized training.It is recommended to conduct regular functional testing and safety circuit testing according to ABB’s recommendations to ensure the functional safety integrity of ABB SM811K01 3BSE018173R1 and the entire safety control system.

Product Guarantee

ABB provides comprehensive product quality assurance for its SM811K01 3BSE018173R1 safety CPU module.The ABB SM811K01 3BSE018173R1 safety CPU module has undergone strict quality control and functional safety testing,and meets the IEC 61508 SIL 3 standard.
