Description

ABB SPASI23 is a high-performance Analog Input Module,belonging to the ABB Symphony Plus series and also compatible with some ABB Bailey Infi 90 systems.As an important component of distributed control systems(DCS),ABB SPASI23 aims to provide high-precision multi-channel analog signal acquisition functions for monitoring and controlling various key parameters in industrial processes.The ABB SPASI23 module has 16 independent analog input channels that can be flexibly configured to receive signals from different types of sensors,including thermocouples(TC),millivolts(mV),resistance temperature detectors(RTD),and high-level voltage and current signals.With its high precision,fast conversion rate,and excellent anti-interference ability,ABB SPASI23 plays a key role in ensuring the accuracy and real-time performance of industrial process data.The reliability design and convenient installation and maintenance features of this module make it a reliable choice in various industrial automation applications.

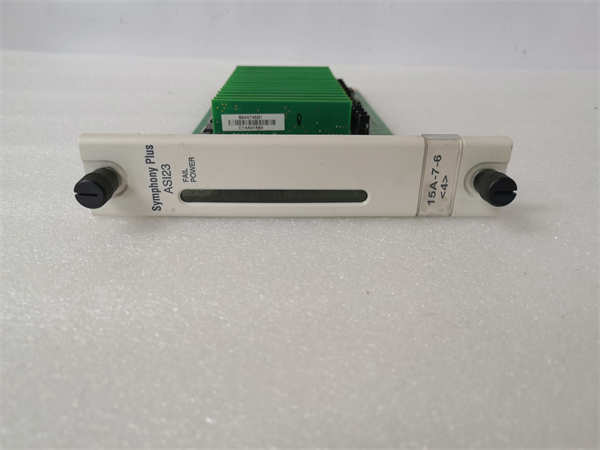

SPASI23 ABB

technical specifications

Product model:SPASI23

manufacturer:ABB

Product type:Analog Input Module

Belonging series:Symphony Plus,Compatible with Bailey Infi 90

Number of input channels:16

Input type:Thermocouple(TC),Millivolt(mV),Resistance Temperature Detector(RTD),High Voltage/Current

Voltage input range:-10 V to+10 V(typical)

Current input range:-20 mA to+20 mA(typical)

RTD input range:-200°C to+800°C(typical,depending on RTD type)

Thermocouple input range:-200°C to+1800°C(typical,depending on thermocouple type)

Conversion accuracy:±0.1%full scale(typical)

Conversion time:250µs(per channel)

Isolation voltage:2500 V RMS(between input and output)

Power consumption:≤2.5 W

Installation method:DIN rail installation

Main features and advantages

The ABB SPASI23 analog input module,with its advanced design and outstanding performance,has demonstrated many advantages in the field of industrial automation

High channel density:ABB SPASI23 integrates 16 analog input channels in a compact modular design,effectively saving control system space and cost,and simplifying wiring.

Flexible signal compatibility:This module can receive various types of analog signals,including temperature,voltage,and current signals,and can adapt to different sensor types through software configuration,improving the flexibility and versatility of the system.

High precision measurement:ABB SPASI23 has high-precision analog-to-digital conversion capability,ensuring accurate measurement of industrial process parameters and providing reliable data foundation for optimized operation of control systems.

Fast conversion rate:Each channel has a fast conversion time,which can capture rapidly changing industrial process signals in real time,ensuring timely response of the control system.

Powerful isolation capability:ABB SPASI23 provides electrical isolation between input and output,effectively suppressing electrical noise and ground wire interference in industrial environments,improving signal stability and reliability,and protecting the safety of system equipment.

Easy to install and maintain:Adopting DIN rail installation method,it is convenient and fast,and the modular design also simplifies the maintenance and replacement work of the system.

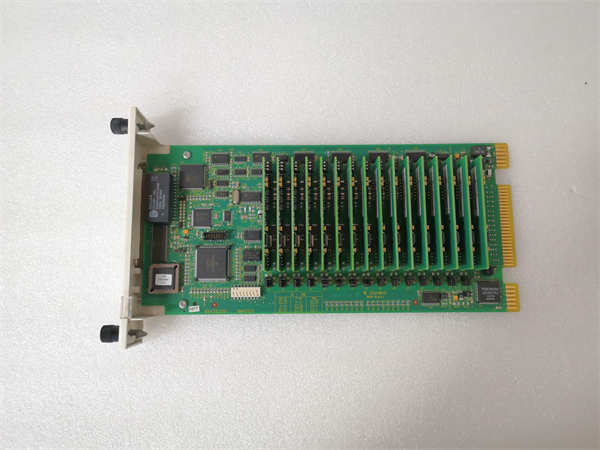

SPASI23 ABB

application area

The ABB SPASI23 analog input module is widely used in various industrial automation fields for monitoring and controlling key process parameters

Process control:Used in industries such as chemical,petroleum,natural gas,and pharmaceuticals to measure and control key process variables such as temperature,pressure,flow rate,and liquid level.

Mechanical control:can be used to monitor and control the operating status of various industrial machinery,such as temperature,vibration,and current parameters of motors,pumps,compressors,etc.

Power industry:Used for temperature monitoring,pressure monitoring,and other analog signal acquisition in power plants,providing data support for the safe and stable operation of units.

Water treatment industry:used for monitoring water quality parameters,such as pH value,conductivity,turbidity,etc.,as well as controlling related executing agencies.

Related products

The products related to ABB SPASI23 analog input module include:

ABB AC800M controller:SPASI23 is usually used in conjunction with ABB AC800M series programmable logic controllers to achieve data acquisition and control logic operations.

ABB S800 I/O series:SPASI23 belongs to ABB’s S800 I/O series,which also includes various digital input/output modules,power modules,and communication modules.

ABB IMASI23:This is an early model of SPASI23 with similar functions,but there may be differences in resolution and accuracy.

ABB AO800 series analog output module:used to convert the output signal of the controller into an analog signal to drive the actuator.

ABB CI800 series communication interface module:used to achieve communication between AC800M control system and other automation systems or upper computers.

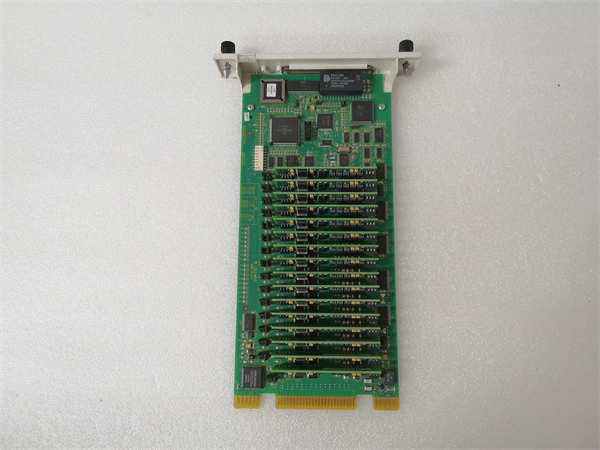

SPASI23 ABB

Installation and maintenance

Preparation before installation:Before installing the ABB SPASI23 analog input module,please refer to the relevant product manual and installation guide provided by ABB.Ensure that the installation environment meets the operating temperature,humidity,and electromagnetic compatibility requirements of the module.Check if the ABB SPASI23 module is intact and prepare the necessary installation tools and wiring terminals.According to the system design and wiring diagram,correctly connect the signal wires from the on-site sensors to the wiring terminals of the ABB SPASI23 module,and ensure that the wiring is firm and reliable.

Maintenance suggestion:To ensure the long-term stable operation of the ABB SPASI23 analog input module,it is recommended to perform regular maintenance.Regularly check if the module is securely installed on the DIN rail and if the wiring terminals are loose or corroded.Keep the surface of the module clean to prevent dust and dirt from accumulating and affecting heat dissipation.Regularly check whether the power supply of the control system is stable to avoid abnormal module operation caused by power fluctuations.It is recommended to conduct regular system checks and functional tests according to ABB’s maintenance manual.
