Description

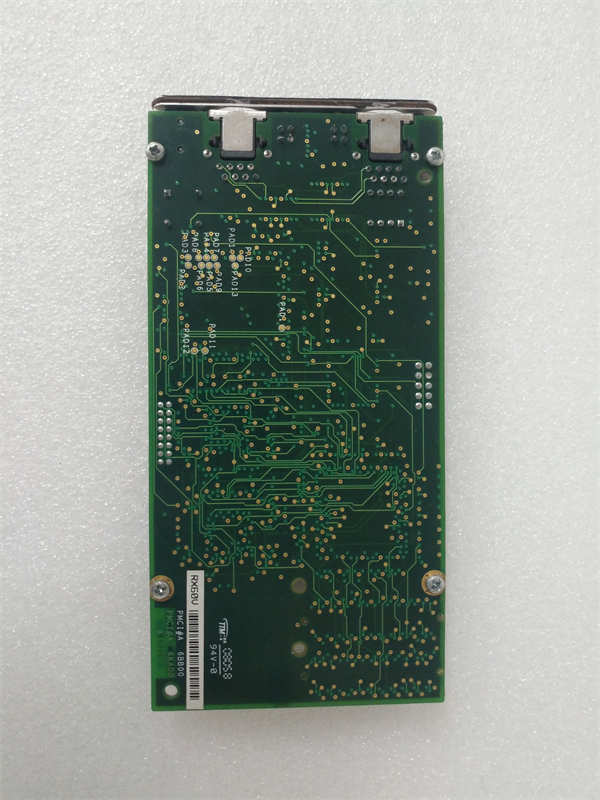

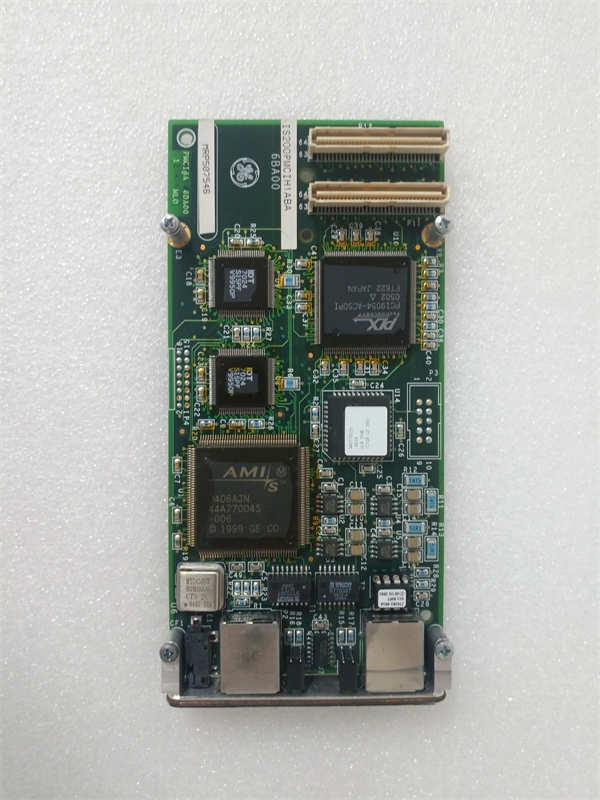

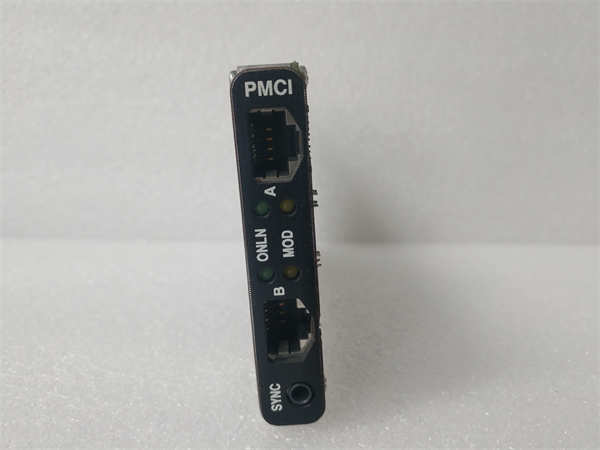

IS200PMCIH1ABA GE is a high-performance,multifunctional control interface board belonging to GE’s innovative IS200 series industrial automation control system.As one of the key components of this series,IS200PMCIH1ABA GE aims to provide flexible and reliable signal processing and interface capabilities for industrial applications.This IS200PMCIH1ABA GE board card often integrates multiple input/output channels and communication interfaces,enabling efficient data exchange and control signal transmission with various field devices,sensors,actuators,and other control systems.The GE IS200 series is renowned for its modular design,powerful performance,and wide applicability,and the IS200PMCIH1ABA GE is a powerful embodiment of this feature.By integrating multiple functions into one,IS200PMCIH1ABA can simplify the system architecture,reduce wiring complexity,and improve the reliability and maintainability of the overall control system.In industrial automation applications that require flexible configuration and multiple interface capabilities,IS200PMCIH1ABA GE is a highly valuable key component.

IS200PMCIH1ABA GE

technical specifications

Product model:IS200PMCIH1ABA

manufacturer:GE

Product type:Multi function Control Interface Board

Number of input channels:16 digital inputs/outputs(configurable)

Number of analog input channels:8 analog inputs

Number of analog output channels:4 analog output channels

Communication interface:RS-232,RS-485,Ethernet(optional)

Supply voltage:+5V DC

Working temperature:0°C to 60°C

Storage temperature:-20°C to 70°C

Installation method:slot type,installed on GE IS200 series rack

Main features and advantages

The IS200PMCIH1ABA GE multifunctional control interface board brings significant flexibility and integration convenience to users.Its integrated multiple input/output channel types,including digital and analog,enable IS200PMCIH1ABA GE to directly connect various types of field devices,simplifying system design and wiring.Multiple optional communication interfaces,such as RS-232 and RS-485,as well as possible Ethernet support,enable IS200PMCIH1ABA to easily exchange data with other control systems,upper computers,or network devices,improving system integration and scalability.As a member of the GE IS200 series,IS200PMCIH1ABA inherits the high reliability and stability characteristics of the series,and can operate stably for a long time in various industrial environments.In addition,the modular design of IS200PMCIH1ABA GE facilitates installation and maintenance,reducing the maintenance cost of the system.By using IS200PMCIH1ABA,users can build powerful,flexible,and reliable industrial automation control systems to meet various complex control needs.

IS200PMCIH1ABA GE

application area

The IS200PMCIH1ABA GE multifunctional control interface board is widely used in various industrial automation fields due to its flexible interface capabilities and high reliability.In the power industry,IS200PMCIH1ABA can be used to connect sensors,actuators,and control equipment to achieve monitoring and control of the power generation process.In the petrochemical industry,this board can integrate various field instruments and control valves to achieve precise control of process parameters.In the manufacturing industry,IS200PMCIH1ABA GE can be used to connect sensors,switches,and drivers on production lines,enabling control and data collection of automated production processes.In addition,in industries such as water treatment,metallurgy,and building materials,IS200PMCIH1ABA can effectively connect and manage various on-site equipment,improving the intelligence level and control efficiency of automation systems.Its multifunctional features enable it to adapt to various industrial control needs.

Related products

The products related to IS200PMCIH1ABA GE multifunctional control interface board include:

IS200CPUH01A GE:The IS200 series central processing unit is responsible for executing control programs and logical operations.

IS200TRLYH1AAA GE:IS200 series relay output module,used to drive external actuators.

IS200ERIOH1A GE:IS200 series Ethernet remote I/O module,used to expand the system’s I/O capabilities.

IS200DSPXH1A GE:IS200 series digital signal processing module,used for high-speed data acquisition and processing.

IS200AIMAH1A GE:IS200 series analog input module,used to receive signals from analog sensors.

IS200AOMAH1A GE:IS200 series analog output module,used to output analog control signals.

GE VersaMax PLC series:complementary to the IS200 series,providing control solutions of different scales and performance.

IS200PMCIH1ABA GE

Preparation before installation:Before installing the IS200PMCIH1ABA GE multifunctional control interface board,please refer to the installation manual of the GE IS200 series and the technical documentation of the relevant modules.Ensure that the IS200 series rack is correctly installed and powered.Check if the packaging of the IS200PMCIH1ABA module is intact and confirm that the module is not physically damaged.According to the system wiring diagram,prepare the cables connecting the on-site equipment and communication network,and ensure that the length and shielding of the cables meet the requirements.Before inserting the module into the rack,please ensure that the power supply to the rack is disconnected.Align the IS200PMCIH1ABA module with the designated slot on the rack and gently push it in until fully connected.

Maintenance suggestion:To ensure the long-term reliable operation of the IS200PMCIH1ABA GE multifunctional control interface board,it is recommended to follow the maintenance procedures of the GE IS200 series.Regularly check if the module is securely connected in the rack.Keep the surface of the module clean to avoid dust accumulation.Regularly check whether the cables connecting the on-site equipment and communication network are damaged or aged,and whether the connections are reliable.Regularly check the status of indicator lights on the module to promptly detect and address potential faults.It is recommended to regularly use the engineering configuration software provided by GE to diagnose the system,check the operating status and communication status of modules.Avoid operating under environmental conditions that exceed the module specifications.
