Description

The TRICONEX MP3009X TCM 4355X processor control module is the core of building high reliability and high availability control solutions in the TRICONEX fault-tolerant safety system(SIS).As the main controller of the system,the TRICONEX MP3009X adopts a Triple Modular Redundancy(TMR)architecture,which can execute complex safety control logic,manage internal system operations,and perform comprehensive fault diagnosis.Its powerful processing power and memory resources ensure stable and reliable control even in the most stringent security critical applications.The TRICONEX TCM 4355X communication control module focuses on external communication of the system,providing rich industrial communication interfaces such as redundant Ethernet and isolated serial ports,supporting multiple protocols such as Modbus TCP/IP and HART,enabling the TRICONEX safety system to seamlessly integrate and exchange data with the upper monitoring system(HMI/SCADA),historical databases,and various field devices.The combination of TRICONEX MP3009X TCM 4355X provides users with a complete processor control solution that not only has excellent safety and reliability,but also strong communication capabilities.It is the key to ensuring the safe and stable operation of high-risk industrial processes.

The TRICONEX MP3009X main processor module eliminates the risk of single point failures through its TMR architecture,ensuring the continuous and stable operation of the control system.It can monitor the system status in real-time and quickly diagnose and isolate any potential faults detected,thereby minimizing unexpected downtime.The TRICONEX TCM 4355X communication control module ensures a reliable connection between the security system and the external world through its redundant network interfaces and extensive protocol support,enabling critical process data to be transmitted to operators and management systems in a timely and accurate manner.The tight integration of TRICONEX MP3009X TCM 4355X provides a solid foundation for users to build a safe,reliable,and easy to manage industrial automation system.

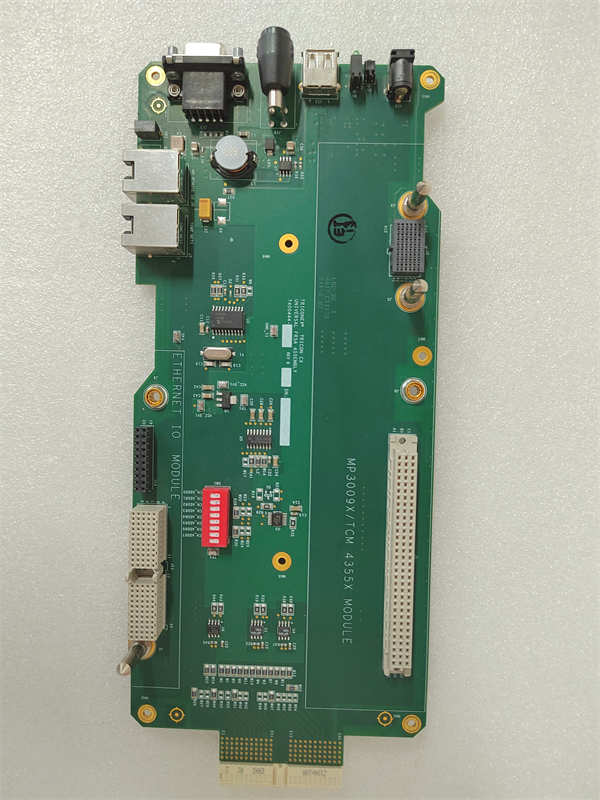

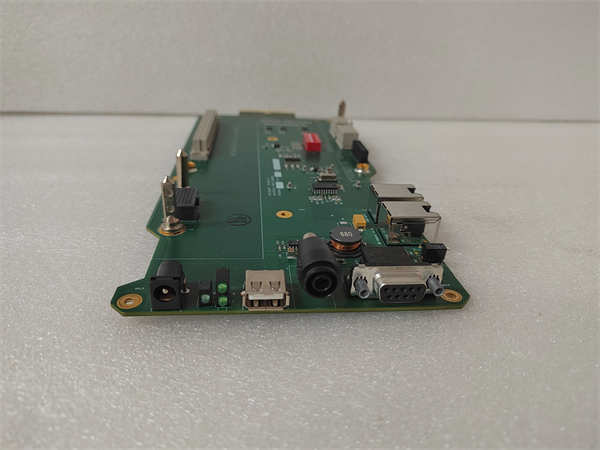

MP3009X TCM 4355X TRICONEX

technical specifications

Product model:MP3009X TCM 4355X

Manufacturer:TRICONEX(under Schneider Electric)

Product type:TMR Main Processor MP module

Operating system:TriStation 1131 compatible

Installation method:Triconex system rack slot

Network interface:2 x 100Base TX/1000Base-T Ethernet(copper cable)or 100Base FX/1000Base-X(fiber optic,via SFP)

Serial interface:2 x isolated RS-232/RS-485(DB-9)

Diagnostic interface:1 x isolated RS-232(9-pin)

Supported protocols:TriStation,Modbus Client/Server,Modbus TCP/IP,TSAA(supports IP Multicast),Peer to Peer,Triconex Time Synchronization,External HART DTM,HART-IP,SNTP,Jet Direct(network printing)

Data rate:Serial port up to 115.2 Kbps/port,total data rate 230.4 Kbps

Isolation voltage:500 VDC for serial and diagnostic ports

Power consumption:<19>

Installation method:Triconex system rack slot

Main features and advantages

TRICONEX MP3009X(Main Processor Module)

Excellent Security:The TRICONEX MP3009X adopts a mature and reliable Triple Modular Redundancy(TMR)architecture,which can effectively prevent system misoperation or failure caused by hardware failures,providing the highest level of security for safety critical applications.

Powerful processing performance:The TRICONEX MP3009X has a high-performance processor and large capacity memory,which can efficiently execute complex security control logic and algorithms,meeting various high demand industrial applications.

High availability:Due to its TMR architecture,the TRICONEX MP3009X can continue to operate normally in the event of a single or two module failure,minimizing system downtime and improving production continuity.

Comprehensive diagnostic function:The TRICONEX MP3009X can monitor the system status in real time,perform comprehensive fault detection and diagnosis,and provide detailed fault information for users to maintain and manage.

Compatible with TriStation 1131:The TRICONEX MP3009X uses the standard TRICONEX TriStation 1131 programming environment for configuration and programming,facilitating system development and maintenance for users.

TRICONEX TCM 4355X(Communication Control Module)

Flexible communication interface:The TRICONEX TCM 4355X provides multiple communication interfaces,including redundant Ethernet and isolated serial ports,for easy integration with various upper monitoring systems,historical databases,and third-party devices.

Widespread protocol support:The TRICONEX TCM 4355X supports multiple industrial communication protocols,such as Modbus TCP/IP,HART-IP,etc.,ensuring interoperability between the system and other devices.

Redundant network connection:The TRICONEX TCM 4355X provides redundant network interfaces,improving the reliability of communication links.Even if the main network fails,the backup network can ensure smooth communication.

Isolated communication interface:The serial and diagnostic interfaces of the TRICONEX TCM 4355X are designed with electrical isolation,enhancing the system’s anti-interference ability and improving communication reliability.

Support for HART Pass through:The TRICONEX TCM 4355X supports direct communication of information from HART devices,making it easy to integrate and manage HART field instruments.

application area

The combination of the TRICONEX MP3009X main processor module and the TRICONEX TCM 4355X communication control module is widely used in industrial fields that require extremely high safety and reliability

Oil and gas:Emergency Shutdown System(ESD),Fire and Gas Detection System(F&G),High Integrity Pressure Protection System(HIPPS).

Chemical industry:reactor safety control,process interlock protection.

Electricity:Nuclear power plant safety system,boiler protection system.

Transportation:Safety control of rail transit signal system.

Other high-risk industrial sectors,such as pharmaceuticals,metallurgy,etc.

Related products

TRICONEX system rack:used for installing TRICONEX MP3009X,TRICONEX TCM 4355X,and other TRICONEX modules.

TRICONEX I/O modules:such as digital input module 3501E/T,digital output module 3625A,analog input module 3700A,analog output module 3805E/H.

TRICONEX power module:provides stable and reliable power supply for the TRICONEX system.

TRICONEX TriStation programming software:used for configuring,programming,and diagnosing TRICONEX safety systems.

MP3009X TCM 4355X TRICONEX

Preparation before installation:Before installing the TRICONEX MP3009X main processor module and TRICONEX TCM 4355X communication control module,please carefully read the relevant TRICONEX system documentation and module manuals to understand the specific installation steps,wiring requirements,and safety precautions.Ensure that the installation rack is properly grounded and check if the power supply meets the requirements.Insert the MP3009X and TCM 4355X into the dedicated rack slots of the TRICONEX system,and connect the communication and power cables according to the manual requirements.For the communication module,it is essential to connect the Ethernet and serial communication cables correctly.

Maintenance suggestion:To ensure the long-term stable operation of the main processor module of the TRICONEX MP3009X and the communication control module of the TRICONEX TCM 4355X,it is recommended to regularly check whether the module connections are secure and whether the cables are damaged.Keep the surface of the module clean to avoid dust accumulation affecting heat dissipation and electrical connections.Regularly check the operating status and alarm information of the system.It is recommended to follow the maintenance guidelines provided by TRICONEX and have trained professionals perform maintenance and troubleshooting.Due to the application of the TRICONEX system in safety critical areas,any maintenance operations should strictly comply with relevant safety regulations.
