Description

The IC693CPU350-BC CPU module from GE is a high-performance central processing unit in its mature and widely used Series 90-30 PLC(Programmable Logic Controller)series.As the core of the entire automation system,GE IC693CPU350-BC is responsible for executing user written control programs,managing data exchange between I/O modules,and providing communication interfaces required by the system.The IC693CPU350-BC module performs well in various industrial automation applications due to its reliability,powerful processing capabilities,and rich memory configuration.It supports multiple programming languages and functions,and can meet complex control logic and data processing requirements.As an important component of the Series 90-30 platform,the GE IC693CPU350-BC CPU module seamlessly integrates with the rich I/O modules,communication modules,and special function modules of the series,providing a solid foundation for users to build flexible and scalable automation solutions.In industrial automation scenarios that require high-performance control,big data processing,and reliability,the IC693CPU350-BC CPU module is a reliable choice.

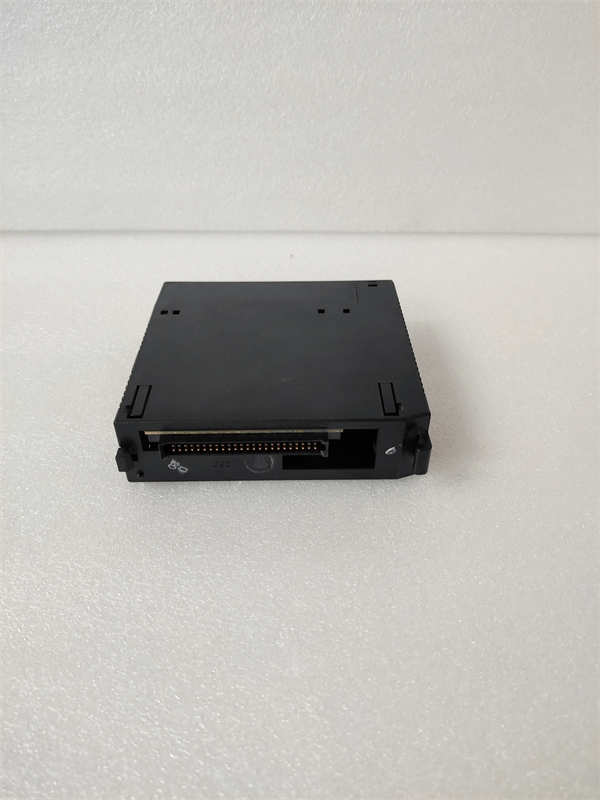

IC693CPU350-BC GE

technical specifications

Product model:IC693CPU350-BC

Manufacturer:GE/GE Fanuc

Product type:CPU module

Belonging series:Series 90-30

CPU type:Single slot CPU module

Processor type:80386EX

Processor speed:25 MHz

User memory:32K bytes(some sources mention 240K total memory,the available size of the user program depends on the configuration)

Typical scanning rate:0.22 milliseconds/1K logic(Boolean contacts)

Discrete input point(%I):2048(maximum)

Discrete output point(%Q):2048(maximum)

Internal coil(%M):4096 bits

Register memory(%R):configurable,128 to 32640 words(depending on programming software version)

Timer/Counter:≫2000(depending on available user memory)

Built in serial port:3(one located on the power connector)

Support communication:SNP/SNPX Slave(all ports),RTU Slave,Serial I/O(ports 1 and 2)

Communication Expansion:Supports CCM through CMM module,RTU Master through PCM module,Ethernet,FIP,Profibus and other modules

Floating point operations:support(based on firmware)

Real time clock:with battery backup

Interrupt support:Supports periodic subroutines

Storage types:RAM and Flash

Power requirement:670 mA+5 VDC

Working temperature:0°C to 60°C(32°F to 140°F)

Storage temperature:-40°C to 85°C(-40°F to 185°F)

Main features and advantages

The GE IC693CPU350-BC CPU module,as the core of Series 90-30 PLC,has multiple significant features and advantages,making it widely used in the field of industrial control.Its powerful 80386EX processor and up to 32K bytes of user memory(which may be larger depending on the specific configuration)are capable of handling complex control logic and data processing tasks,achieving high-performance automation control.The IC693CPU350-BC module provides rich I/O addressing capabilities,supporting up to 2048 discrete input points and 2048 discrete output points,as well as a large number of internal coils and configurable register memory,meeting control needs of various scales.

This CPU module has three built-in serial communication ports,supporting various communication protocols such as SNP/SNPX Slave,RTU Slave,and Serial I/O,making it convenient for data exchange and system integration with other devices.By expanding the module,GE IC693CPU350-BC can also support Ethernet Profibus、Various industrial communication protocols have further enhanced the connectivity of the system.In addition,IC693CPU350-BC supports floating-point operations,making it convenient for complex mathematical calculations and process control.Its real-time clock function with battery backup provides convenience for applications that require time synchronization.Although this model has been discontinued,its mature technology and extensive installed capacity mean that users can still rely on its reliability and seek alternative solutions or compatible modules when needed.

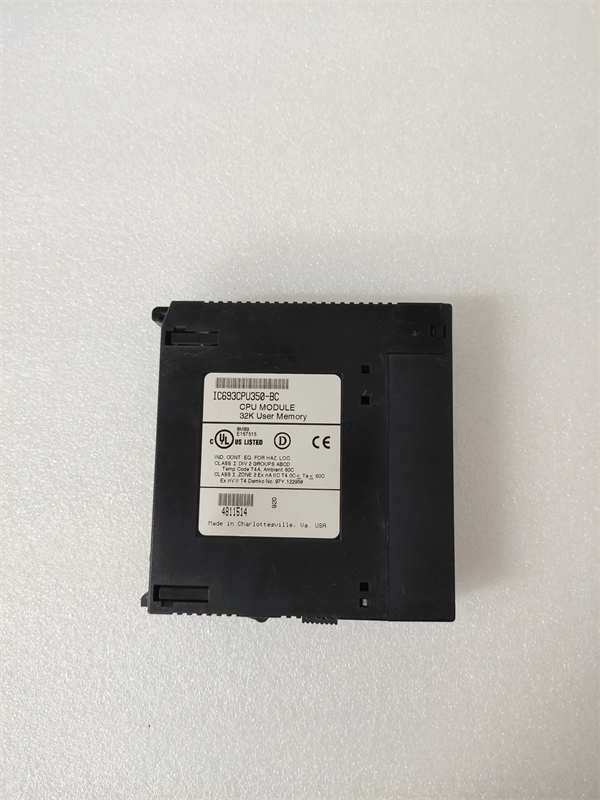

IC693CPU350-BC GE

application area

The GE IC693CPU350-BC CPU module is widely used in various industrial automation fields due to its powerful processing capabilities and flexible configuration.In the manufacturing industry,IC693CPU350-BC is commonly used to control various mechanical equipment,production lines,packaging systems,and material handling systems,achieving efficient and precise automated production.In the water treatment industry,this CPU module can be used to control pump stations,valves,and water quality monitoring equipment,achieving intelligent management of water resources.In the power industry,GE IC693CPU350-BC can be used to control automation systems,distribution systems,and small generator sets in substations.In addition,this CPU module is also used in building automation,HVAC control,and various industrial processes that require logic control and data acquisition.Despite being discontinued,the IC693CPU350-BC still plays a critical role in many existing automation systems due to its extensive application foundation.

Related products

The products related to the IC693CP350-BC CPU module include various I/O modules from the GE Series 90-30 series,such as the digital input module IC693MDL241,digital output module IC693MDL240,analog input module IC693ALG221,and analog output module IC693ALG223,which are used to expand the system’s I/O capabilities.Communication modules such as IC693CMM311(supporting CCM,RTU,SNP,SNPX)and Ethernet communication module IC693CEN331 are used to achieve communication with other devices.Power modules such as IC693PWR330 and IC693PWR331 provide stable power to the PLC system.Special functional modules such as high-speed counter modules and positioning modules are used to meet specific application requirements.Users can also choose different baseboards and racks to build the desired PLC system.Although IC693CPU350-BC has been discontinued,users may need to consider upgrading to newer GE PLC series such as VersaMax or PACSystems RX3i,which offer higher performance and more advanced features while maintaining compatibility with Series 90-30 to some extent.

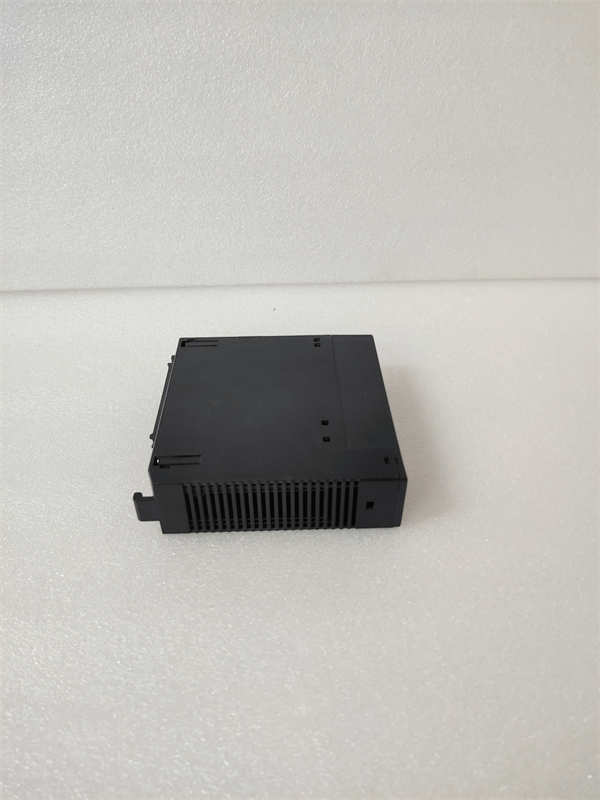

IC693CPU350-BC GE

Installation and maintenance

Preparation before installation:Before installing the IC693CPU350-BC CPU module,please carefully read the relevant product manual and installation guide to ensure that the installation environment meets the working temperature,humidity,and electromagnetic compatibility requirements of the module.Check if the packaging of the module is intact and confirm that the model is consistent with the order.Prepare the necessary installation tools,such as screwdrivers,etc.Ensure that the PLC motherboard is correctly installed and powered.Carefully inspect the connectors on the back of the IC693CPU350-BC module to ensure they are clean and free from physical damage.According to the product manual,insert the IC693CPU350-BC module correctly into the CPU slot on the PLC motherboard and secure it firmly.When connecting external communication cables,it is necessary to use cables that meet the requirements and connect them accurately according to the wiring diagram to ensure correct and reliable wiring,avoiding short circuits or open circuits.

Maintenance suggestion:To ensure the long-term stable operation of the IC693CPU350-BC CPU module,it is recommended to perform regular maintenance.Regularly check whether the connections of the module inside the base plate are loose,and whether the external cables are aged or damaged.If there are any problems,they should be dealt with in a timely manner.Keep the modules and control cabinets clean to prevent dust and foreign objects from entering the interior of the modules,which can affect heat dissipation and electrical performance.Regularly check whether the power and grounding of the PLC system are in good condition.Due to the discontinuation of IC693CPU350-BC,it is recommended that users pay attention to GE’s alternative products and upgrade solutions in order to perform system upgrades when needed.If the IC693CPU350-BC module malfunctions,it is recommended to contact a professional automation equipment maintenance service provider for repair or replacement,or consider upgrading to a newer PLC system.
