Description

The IC693CPU374 processor module from GE is a high-performance CPU in its Series 90-30 PLC(Programmable Logic Controller)series.As the core of the automation system,GE IC693CPU374 is responsible for executing user programs,managing I/O data exchange,and providing powerful communication capabilities,especially its integrated Ethernet interface.The IC693CPU374 module provides higher levels of performance and connectivity compared to other models in the series,thanks to its faster processing speed,larger user memory,and built-in Ethernet communication capabilities.It is suitable for industrial automation applications that require high-speed data processing,complex control algorithms,and convenient network integration.As part of the Series 90-30 platform,the GE IC693CPU374 processor module is compatible with the rich I/O modules and special function modules of the series,providing a powerful platform for users to build high-performance,networked automation solutions.

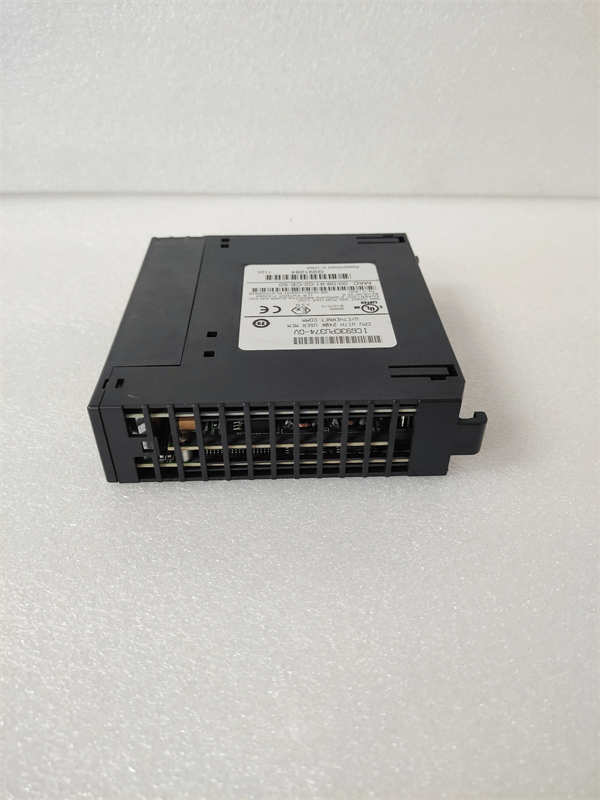

IC693CPU374 GE

technical specifications

Product model:IC693CPU374

Manufacturer:GE/GE Fanuc

Product Type:Processor Module(CPU)

Belonging series:Series 90-30

CPU type:Single slot CPU module with built-in Ethernet interface

Processor type:Embedded 586 level processor(such as AMD SC520)

Processor speed:133 MHz

User memory:240 KB(configurable)

Typical scanning rate:0.15 milliseconds/1K logic(Boolean contacts)

Discrete input point(%I):2048(maximum)

Discrete output point(%Q):2048(maximum)

Internal coil(%M):4096 bits

Register memory(%R):configurable,128 to 32640 words

Timer/Counter:≫2000(depending on available user memory)

Built in serial port:none(some models may provide RS-485 through a power connector)

Built in Ethernet ports:2 10/100 Mbps Ethernet ports with built-in switch and RJ-45 interface

Support communication:SRTP,Ethernet Global Data(EGD),Modbus/TCP(Client/Server),SNP/SNPX(via RS-485 on the power supply)

Floating point operation:Supports(hardware)

Real time clock:with battery backup(the battery is usually located in the power module)

Interrupt support:Supports periodic subroutines

Storage types:RAM and Flash

Power requirement:7.4 watts+5 VDC(requires high-capacity power supply)

Working temperature:0°C to 60°C(32°F to 140°F)

Storage temperature:-40°C to 85°C(-40°F to 185°F)

Main features and advantages

The GE IC693CPU374 processor module is a high-performance model in the GE Series 90-30 PLC series,with the following significant features and advantages:

High performance processor:With a processor speed of 133 MHz and hardware floating-point computing capability,it can quickly execute complex control logic and mathematical calculations,making it suitable for applications that require high response speed.

Large capacity user memory:240 KB of configurable user memory provides ample space for storing complex control programs and large amounts of data.

Built in dual Ethernet ports:integrating two 10/100 Mbps Ethernet ports,supporting multiple industrial Ethernet protocols such as SRTP,EGD,and Modbus/TCP,making it easy to implement PLC and upper computer communication HMI、Seamless connection and data exchange of other PLCs and factory networks.The built-in switch function simplifies the network topology.

Rich communication capabilities:In addition to Ethernet,this CPU module also supports SNP/SNPX communication through the RS-485 port on the power module,providing multiple communication options.

Powerful I/O addressing capability:Supports up to 2048 discrete input points and 2048 discrete output points,as well as a large number of internal coils and configurable register memory,meeting control needs of various scales.

Real time clock:Built in real-time clock with battery backup,providing convenience for applications that require precise timestamps and time synchronization.

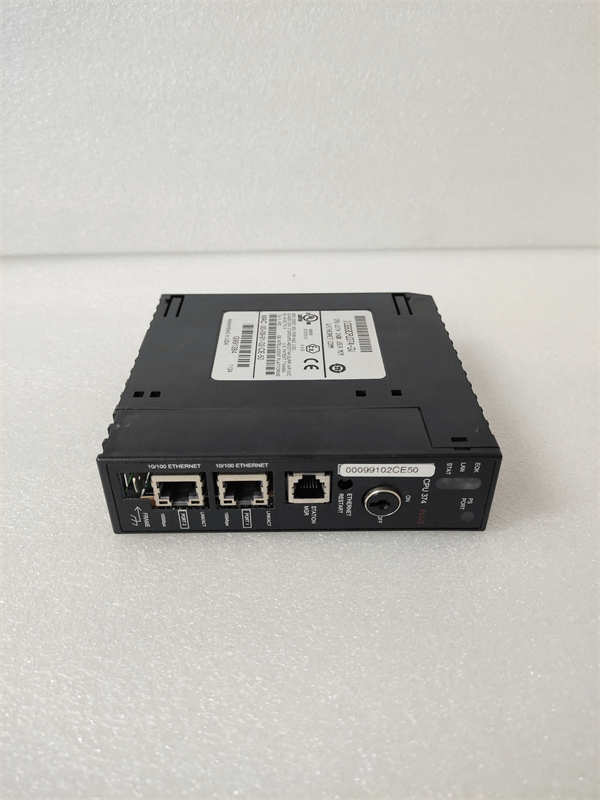

IC693CPU374 GE

application area

The GE IC693CPU374 processor module,with its high performance and integrated Ethernet communication capabilities,is widely used in industrial automation fields that require high-speed control and network connectivity,including but not limited to:

Complex mechanical control:used to control high-speed,high-precision mechanical equipment,such as packaging machinery,printing machinery,and metal processing equipment.

Process automation:applied to industrial processes that require data collection,monitoring,and networked control,such as water treatment,chemical,and pharmaceutical industries.

Motion control:can be used to control servo and stepper motors,achieving precise motion control applications.

SCADA system:As a data acquisition and control unit,it communicates with the upper monitoring system via high-speed Ethernet.

Smart factory:plays a key role in intelligent manufacturing scenarios that require device interconnection and data sharing.

Although this model has been discontinued,due to its powerful features and wide range of applications,IC693CPU374 still runs in many existing automation systems.

Related products

The products related to the IC693CPU374 processor module include various modules of the GE Series 90-30 series:

I/O modules:such as digital input modules(e.g.IC693MDL241),digital output modules(e.g.IC693MDL240),analog input modules(e.g.IC693ALG221),analog output modules(e.g.IC693ALG223).

Communication module:Although IC693CPU374 itself has Ethernet,it can still be used in conjunction with other communication modules,such as IC693CMM311(Multi Protocol Communication Module).

Power module:IC693CPU374 requires a high-capacity power module,such as IC693PWR330 or IC693PWR331.

Base plate and rack:used for installing CPU modules and I/O modules.

Programming software:Logicmaster 90,VersaPro or Proficy Machine Edition(now PAC Machine Edition)used for programming and configuring IC693CPU374.

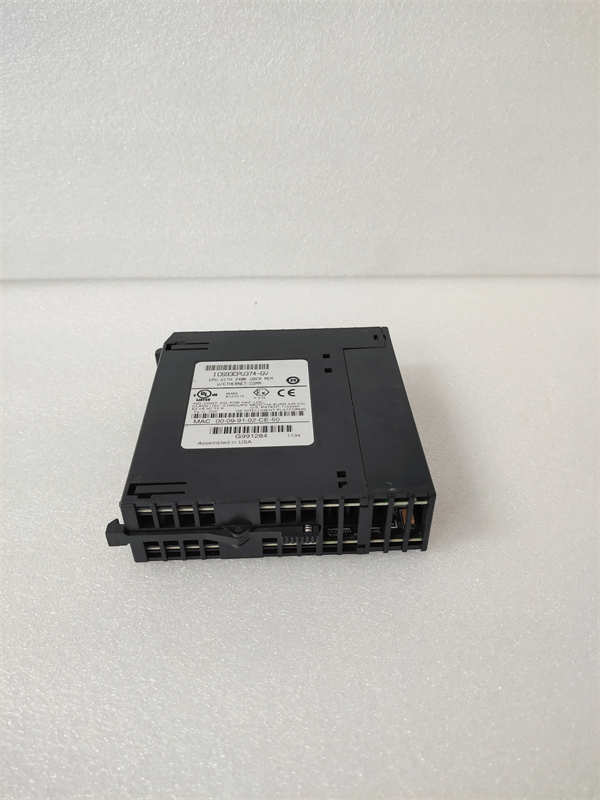

IC693CPU374 GE

Installation and maintenance

Preparation before installation:Before installing the IC693CPU374 processor module,please carefully read the relevant product manual and installation guide to ensure that the installation environment meets the working temperature,humidity,and electromagnetic compatibility requirements of the module.Check if the packaging of the module is intact and confirm that the model is consistent with the order.Prepare the necessary installation tools,such as screwdrivers and cable pliers.Ensure that the PLC motherboard is correctly installed and connected to the required high-capacity power supply.Carefully inspect the connectors and Ethernet ports on the back of the IC693CPU74 module to ensure they are clean and free from physical damage.According to the instructions in the product manual,insert the IC693CPU374 module correctly into the CPU slot on the PLC motherboard and secure it firmly.When connecting Ethernet cables and possible serial communication cables,it is necessary to use cables that meet the requirements and connect them accurately according to the wiring diagram to ensure correct and reliable wiring,avoiding short circuits or open circuits.

Maintenance suggestion:To ensure the long-term stable operation of the IC693CPU374 processor module,it is recommended to perform regular maintenance.Regularly check whether the connections of the module inside the base plate are loose,and whether the external cables are aged or damaged.If there are any problems,they should be dealt with in a timely manner.Keep the modules and control cabinets clean to prevent dust and foreign objects from entering the interior of the modules,which can affect heat dissipation and electrical performance.Regularly check whether the power and grounding of the PLC system are in good condition.Due to the discontinuation of IC693CPU374,it is recommended that users pay attention to GE’s alternative products and upgrade solutions.
