Description

The Bently Nevada 3500/42M 176449-02 Seismic Monitor is a high-performance module designed specifically for monitoring seismic activity in critical machinery and structures,and is an important component of the Bently Nevada 3500 series monitoring system.As a leader in industrial vibration and condition monitoring,Bently Nevada’s products are renowned for their exceptional precision and reliability.The 3500/42M 176449-02 earthquake monitor is capable of receiving and processing signals from seismic sensors,accurately measuring ground acceleration during seismic events.By real-time monitoring and analysis of these key data,the 3500/42M earthquake monitor can help users evaluate the impact of earthquakes on equipment and structures,providing important basis for subsequent safety assessments and maintenance decisions.This module plays a key role in industrial automation systems that require consideration of earthquake risk,such as nuclear power plants,large chemical facilities,and critical infrastructure.By integrating 3500/42M 176449-02,the system can provide comprehensive mechanical protection and structural safety monitoring,thereby improving overall safety.

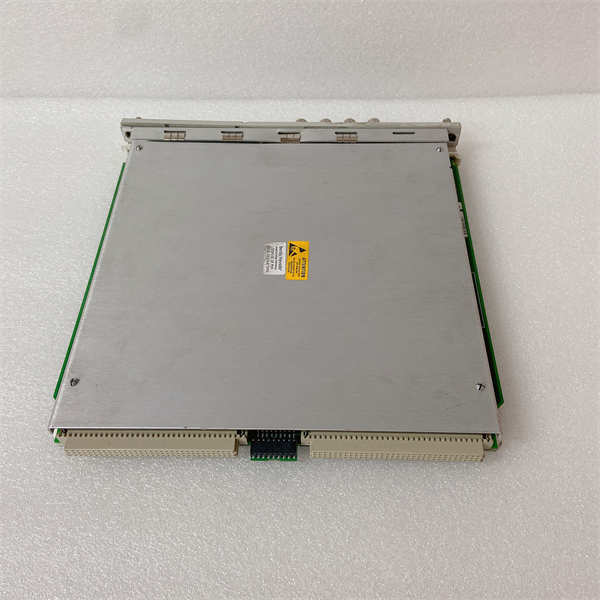

3500/42M 176449-02 BENTLY

technical specifications

Product model:3500/42M 176449-02

manufacturer:Bently Nevada

Product Type:Earthquake Monitor

Number of channels:4

Input type:Seismic accelerometer

Voltage input range:±2.5 V peak

Measurement range:±1 g(configurable)

Frequency response:0.5 Hz to 50 Hz

Sampling rate:100 SPS(per channel)

Working temperature:-20°C to+65°C

Storage temperature:-40°C to+85°C

Relative humidity:95%non condensing

Size:Standard 3500 series module size

Weight:Approximately 0.5 kg

Main features and advantages

The Bently Nevada 3500/42M 3500/42M 176449-02 earthquake monitor is designed to meet the demanding needs of earthquake monitoring and has the following significant features and advantages:

Specialized earthquake monitoring:The 3500/42M 3500/42M 176449-02 module is a monitor specifically designed to receive and process seismic accelerometer signals,capable of accurately capturing ground motion data during earthquake events.

Multi channel input:This module provides 4 independent input channels that can be connected to multiple seismic accelerometers to achieve synchronous monitoring of seismic activity in different directions or locations.

Configurable measurement range:The measurement range of 3500/42M can be configured according to specific application requirements,usually±1 g,to adapt to earthquake monitoring of different intensities.

Optimized frequency response:This monitor has a frequency response range optimized for the characteristics of seismic signals,typically ranging from 0.5 Hz to 50 Hz,and can accurately capture the main frequency components of seismic waves.

High precision data acquisition:The 3500/42M adopts high-precision analog-to-digital converters and digital signal processing technology to ensure the accuracy and reliability of seismic data.

Seamless System Integration:As a member of the Bently Nevada 3500 series,the 3500/42M can be easily integrated into existing 3500 monitoring systems,working together with other mechanical protection modules to build a comprehensive monitoring solution.

Event triggering and recording:The 3500/42M has earthquake event triggering function.When the monitored acceleration exceeds the preset threshold,it can trigger an alarm and record the data at the time of the earthquake event,providing a basis for subsequent analysis.

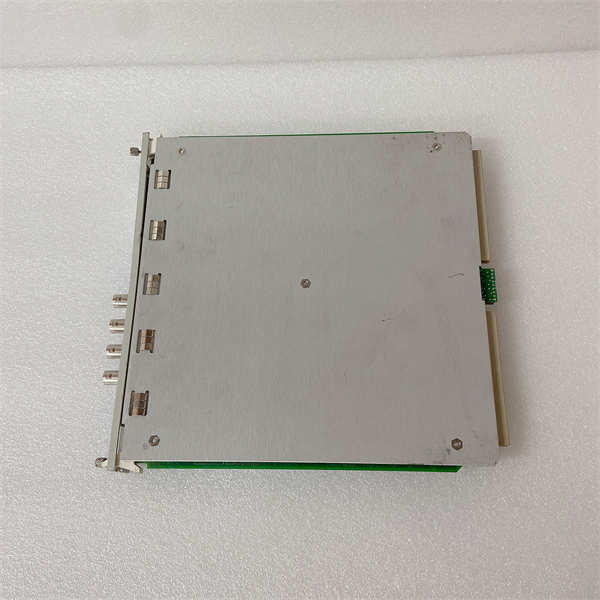

3500/42M 176449-02 BENTLY

application area

The Bently Nevada 3500/42M 176449-02 earthquake monitor is primarily used in critical industrial facilities and infrastructure that require monitoring of seismic activity to assess the impact of earthquakes on equipment and structures,and to provide support for safety decisions.Its typical application areas include:

Nuclear power plant:used to monitor the impact of seismic activity on key equipment and structures such as reactors and cooling systems,ensuring nuclear safety.

Large scale chemical facilities:applied to monitor the impact of earthquakes on storage tanks,pipelines,reaction devices,etc.,to prevent safety accidents caused by earthquakes.

Dams and bridges:used to monitor the impact of earthquakes on dam bodies and bridge structures,and evaluate their structural safety.

High rise buildings and critical infrastructure:applied to monitor the structural response of buildings and infrastructure to earthquakes,providing data for seismic design and safety assessment.

Earthquake research institutions:used for the collection and analysis of earthquake data,providing support for earthquake science research.

In these fields,the 3500/42M can provide critical earthquake monitoring data,help users assess risks in a timely manner,take necessary safety measures,and ensure the safety of personnel and property.

Related products

The products related to Bently Nevada 3500/42M seismic monitors include:

3500/22M:TDI(Transient Data Interface)module,used to transmit data from the 3500 system to external systems for seismic data analysis.

3500/32M:Relay module,used to trigger alarms or other safety interlock actions during earthquake events.

3500/33:Power module provides stable power supply for the 3500 system,ensuring the reliability of earthquake monitoring.

Seismic accelerometer:a sensor used in conjunction with 3500/42M to measure ground acceleration.Bently Nevada offers multiple models of seismic accelerometers to meet different application requirements.

System 1 software platform:used to configure the 3500/42M 176449-02 module,view real-time earthquake data,analyze historical earthquake events,and generate reports.

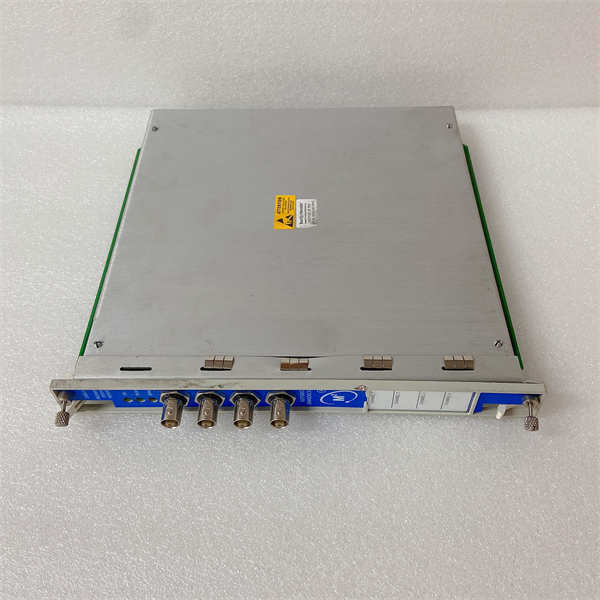

3500/42M 176449-02 BENTLY

Installation and maintenance

Preparation before installation:Before installing the Bently Nevada 3500/42M 176449-02 seismic monitor,be sure to carefully read the relevant installation manual and safety guidelines.Ensure that the installation environment meets the technical specifications of the module,such as temperature and humidity.Check if the 3500 rack is correctly installed and grounded.Choose a suitable installation location for the seismic accelerometer to ensure that it can accurately sense ground motion.Fix the seismic accelerometer according to the installation requirements and connect the signal cable.Check the wiring diagram of the 3500/42M module to ensure that the signal line of the seismic accelerometer is correctly connected to the input channel of the module.Before wiring,be sure to disconnect the power supply of the system.

Maintenance recommendation:To ensure the long-term reliable operation of the Bently Nevada 3500/42M 176449-02 seismic monitor,regular maintenance is recommended.Regularly check the fastening of module connectors to prevent poor signal transmission caused by looseness.Keep the surrounding environment of the module and seismic accelerometer clean,avoiding dust and corrosion.Regularly use Bently Nevada’s System 1 software to perform functional testing on the 3500/42M,checking for normal data acquisition and alarm triggering.It is recommended to calibrate the seismic accelerometer regularly to ensure measurement accuracy.If any abnormalities are found in the 3500/42M module or connected sensors,professional personnel should be contacted promptly for maintenance.Following the maintenance guidelines provided by Bently Nevada can extend the service life of 3500/42M and ensure the effectiveness of the earthquake monitoring system.

Product Guarantee

Bently Nevada provides comprehensive quality assurance for its 3500/42M 176449-02 seismic monitor.This product undergoes strict quality control and testing during the production process to ensure reliable performance in various environments.
