Description

The Bently Nevada 3500/44M 176449-03 Pneumatic Gas Turbine(GT)Vibration Monitor is a high-performance module designed specifically for monitoring and protecting key machinery such as gas turbines driven by air.It is an important component of the Bently Nevada 3500 series monitoring system.With decades of experience in industrial vibration monitoring from Bently Nevada,the 3500/44M 176449-03 is capable of accurately measuring vibration signals from various sensors,particularly optimized for complex vibration modes that may occur during the start-up,operation,and shutdown of pneumatic gas turbines.By real-time monitoring and analysis of these key data,the 3500/44M 176449-03 can detect potential mechanical faults early,such as rotor imbalance,misalignment,bearing problems,and abnormal vibrations caused by pneumatic systems,providing users with warnings,avoiding unplanned shutdowns,reducing maintenance costs,and improving the overall operational efficiency and safety of the equipment.In automation systems driven by pneumatic gas turbines,the 3500/44M 176449-03 plays a crucial role as a key component for achieving reliable operation and effective protection.

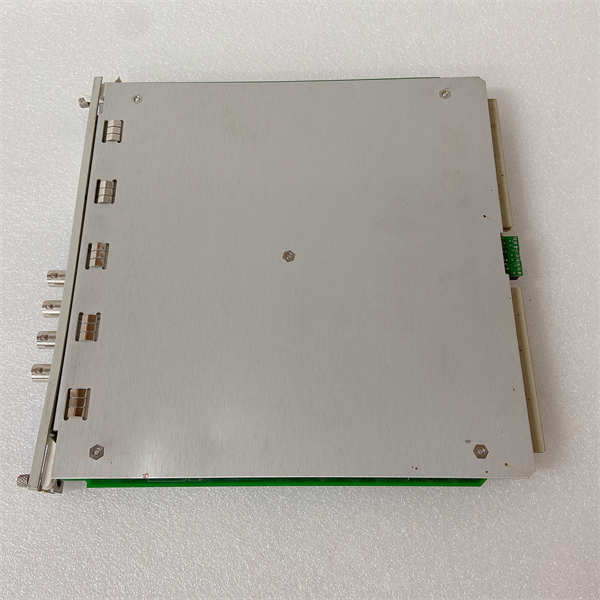

3500/44M 176449-03 BENTLY

technical specifications

Product Model:3500/44M 176449-03

manufacturer:Bently Nevada

Product Type:Pneumatic GT Vibration Monitor

Number of channels:4

Input type:proximity,acceleration,speed sensor(optimized for GT applications)

Voltage input range:-24 VDC to-18 VDC

Current output:4 mA to 20 mA(per channel)

Frequency response:1 Hz to 10 kHz(optimized for GT applications)

Sampling rate:up to 20 kHz(per channel)

Working temperature:-20°C to+65°C

Storage temperature:-40°C to+85°C

Relative humidity:95%non condensing

Size:Standard 3500 series module size

Weight:Approximately 0.48 kg

Main features and advantages

Bently Nevada 3500/44M 176449-03 Pneumatic Gas Turbine Vibration Monitor has been optimized for the special operating conditions of pneumatic GT,with the following significant features and advantages:

Specially optimized for pneumatic GT applications:With a frequency response and signal processing capability of 3500/44M,it can monitor various vibration signals generated by pneumatic gas turbines during start-up,operation,and shutdown processes.

Multi channel flexible configuration:This module provides 4 independent monitoring channels that can flexibly connect different types of sensors,such as proximity sensors for monitoring shaft vibration,accelerometers and velocity sensors for monitoring casing vibration.

High sampling rate and wideband response:The 3500/44M supports a sampling rate of up to 20 kHz and a frequency response range of 1 Hz to 10 kHz,accurately capturing the vibration details of high-speed rotating machinery.

Advanced signal processing algorithms:This monitor integrates advanced signal processing algorithms that can effectively filter out noise,extract key vibration features,and perform accurate trend analysis and fault diagnosis.

Seamless integration with the 3500 series:As a member of the Bently Nevada 3500 series,the 3500/44M can seamlessly integrate with other 3500 modules to build a comprehensive mechanical protection and condition monitoring solution.

Enhanced alarm and protection functions:Combined with other modules of the 3500 system,the 3500/44M can achieve multi-level alarm and protection functions,timely warn potential faults,and trigger protection actions to prevent equipment damage.

Easy to configure and diagnose:With Bently Nevada’s System 1 software platform,users can easily configure,calibrate,and diagnose the 3500/44M,simplifying the operation and maintenance process.

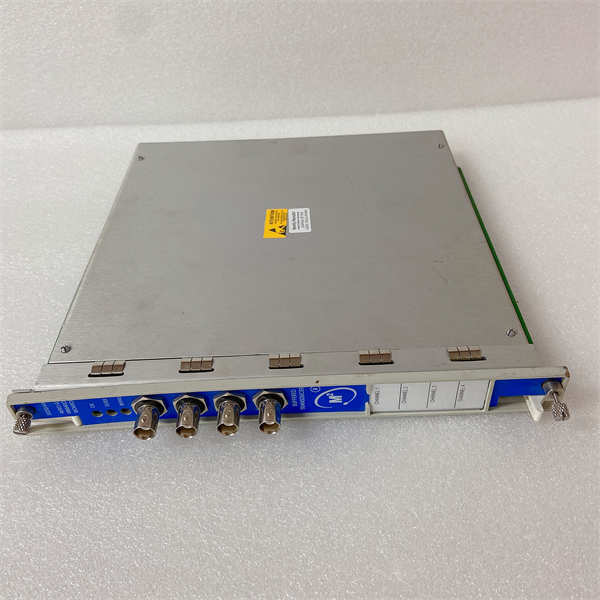

3500/44M 176449-03 BENTLY

application area

The Bently Nevada 3500/44M pneumatic gas turbine vibration monitor is mainly used for online monitoring and protection of key mechanical equipment driven by pneumatic gas turbines.Its typical application areas include but are not limited to:

Pneumatic compressor unit:Monitor the vibration status of the pneumatic driven compressor under various working conditions to ensure its stable operation.

Pneumatic pump assembly:used to monitor the vibration of bearings,seals,and other components of pneumatic driven pumps to prevent malfunctions.

Pneumatic fan:Monitor the overall vibration level of the pneumatic driven fan to ensure its efficient and stable operation.

Vibration monitoring and protection of other key rotating machinery driven by air,such as pneumatic agitators,pneumatic centrifuges,etc.

In these application areas,the 3500/44M can provide critical device health information,help users achieve state based maintenance,improve device reliability and availability,and reduce operating costs.

Related products

The products related to Bently Nevada 3500/44M pneumatic gas turbine vibration monitor include:

3500/22M:TDI(Transient Data Interface)module,used to transmit data from the 3500 system to external systems for more in-depth analysis.

3500/32M:Relay module,used to trigger external protection devices based on alarm signals from 3500/44M.

3500/33:Power module,providing stable and reliable power supply for the 3500 system.

Proximitor®Sensor:used to measure the relative vibration and shaft position of the pneumatic GT rotor shaft.

Velocimeter sensor:used to measure the vibration velocity of the pneumatic GT casing.

Accelerometer sensor:used to measure the absolute vibration of the pneumatic GT casing.

System 1 software platform:used for configuring 3500/44M modules,real-time monitoring of vibration data,trend analysis,and fault diagnosis.

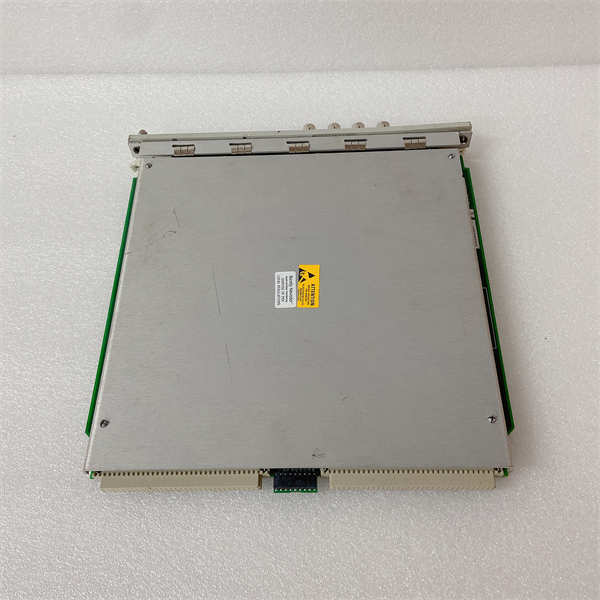

3500/44M 176449-03 BENTLY

Installation and maintenance

Preparation before installation:Before installing the Bently Nevada 3500/44M pneumatic gas turbine vibration monitor,please carefully read the relevant installation manual and safety guidelines.Ensure that the installation environment meets the technical specifications of the module,such as temperature,humidity,and power supply.Check if the 3500 rack is correctly installed and grounded.Select the appropriate sensor type and installation location based on the specific monitoring requirements of the pneumatic gas turbine.Carefully check the connection of the sensor cable and power cord to ensure accuracy.Before wiring,be sure to disconnect the power supply of the system.For cables that require shielding,it is necessary to shield and ground them according to the requirements to reduce electromagnetic interference.

Maintenance recommendation:To ensure the long-term stable operation of the Bently Nevada 3500/44M pneumatic gas turbine vibration monitor,regular maintenance is recommended.Regularly inspect the connectors of the module for looseness or corrosion,and perform necessary tightening and cleaning.Keep the surrounding environment of the module clean and avoid the accumulation of dust and oil stains.Regularly use Bently Nevada’s System 1 software to perform functional testing and calibration on the 3500/44M,ensuring its measurement accuracy and reliability of alarm functions.Regularly check the condition of the connected sensors and their cables to ensure they are working properly.If any abnormalities or malfunctions are found in the 3500/44M module,professional maintenance personnel should be contacted promptly for inspection.Do not disassemble or repair it yourself.Following the maintenance guidelines and recommendations provided by Bently Nevada can maximize the service life of 3500/44M and ensure the reliable operation of the monitoring system.

Product Guarantee

Bently Nevada provides comprehensive quality assurance for its 3500/44M 176449-03 pneumatic gas turbine vibration monitor.Through strict quality control and testing,to ensure its performance and reliability meet the highest industrial standards.
