Description

The ABB CS513 3BSE000435R1 IEEE 802.3 LAN module is a high-performance communication interface module in the ABB Control System S800 I/O system.As a leading global supplier of industrial automation solutions,ABB’s products are renowned for their outstanding reliability and extensive compatibility.The CS513 module complies with the IEEE 802.3 standard and supports Ethernet communication protocols,providing high-speed and reliable network connectivity for S800 I/O systems.Through the CS513 module,the S800 I/O system can be easily integrated into various industrial LANs,enabling data exchange and communication with other control systems,upper computer monitoring systems,and engineering workstations.The CS513 module plays a key role in building modern industrial automation network architectures,enabling distributed I/O to efficiently communicate with central control units,thereby achieving real-time monitoring and control of industrial processes.This module is an important component in enhancing the flexibility,scalability,and information integration capabilities of automation systems.

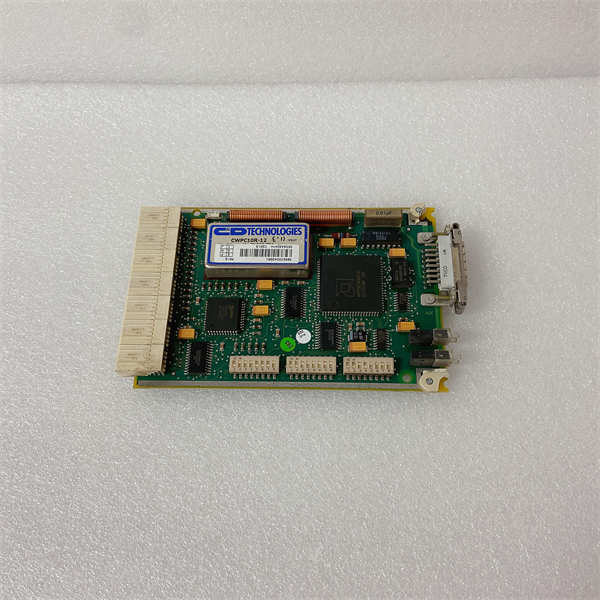

CS513 3BSE000435R1 ABB

technical specifications

Product model:CS513 3BSE000435R1

manufacturer:ABB

Product type:IEEE 802.3 LAN module

Supporting standard:IEEE 802.3(Ethernet)

Interface type:RJ45

Transmission rate:10/100 Mbps adaptive

Support agreement:TCP/IP,UDP,Ethernet

Connection method:star topology

Power input:Powered by S800 I/O motherboard

Power consumption:Typical 1.5 W

Working temperature:-40°C to+70°C

Storage temperature:-40°C to+85°C

Relative humidity:5%to 95%(without condensation)

Size:Standard S800 I/O module size

Weight:Approximately 0.15 kg

Main features and advantages

The ABB CS513 3BSE000435R1 IEEE 802.3 LAN module provides powerful and reliable network communication capabilities for S800 I/O systems,with the following significant features and advantages:

Compliant with IEEE 802.3 standard:The CS513 module is fully compatible with the IEEE 802.3 Ethernet standard,ensuring interoperability with other network devices that comply with this standard.

10/100 Mbps adaptive rate:This module supports Ethernet transmission rates of 10 Mbps and 100 Mbps,and can automatically adapt to network environments to provide optimal communication performance.

Supporting multiple communication protocols:CS513 supports commonly used industrial Ethernet protocols such as TCP/IP and UDP,facilitating data exchange with various upper computer systems and control devices.

Reliable industrial grade design:As a member of the ABB S800 I/O series,the CS513 module features a robust and durable industrial grade design that enables stable and reliable operation in harsh industrial environments.

Easy to integrate and configure:The CS513 module can be easily plugged into the S800 I/O motherboard and configured with ABB’s engineering tools for simple and intuitive network configuration.

Enhanced system flexibility and scalability:Through the CS513 module,the S800 I/O system can flexibly expand its communication capabilities to adapt to constantly changing industrial network requirements.

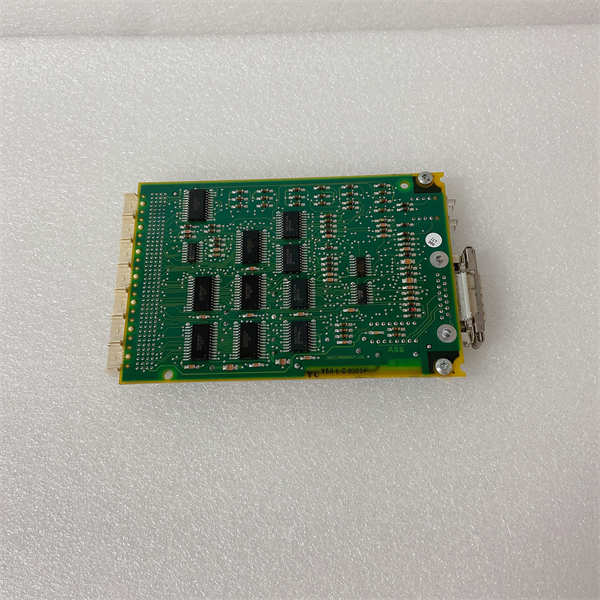

CS513 3BSE000435R1 ABB

application area

The ABB CS513 3BSE000435R1 IEEE 802.3 LAN module is widely used in various industrial automation fields,providing efficient and reliable network communication for S800 I/O systems.Its typical application areas include:

Process automation:used in industries such as chemical,petroleum,natural gas,and pharmaceuticals to connect distributed I/O sites with central control systems,enabling real-time transmission and control of process data.

Power industry:applied to power plants,substations,etc.,used to monitor the status information of on-site equipment and communicate with higher-level monitoring systems.

Manufacturing:In industries such as automotive,food and beverage,and papermaking,it is used to connect I/O devices on production lines to achieve coordinated control and data collection between devices.

Water treatment industry:applied to water plants,sewage treatment plants,etc.,for remote monitoring and management of sensors and actuators distributed in different areas.

Building automation:In intelligent buildings,it is used to connect various sensors and controllers to achieve environmental monitoring and equipment management.

Through the CS513 module,the ABB S800 I/O system can integrate into various industrial network environments,achieving efficient data exchange and system integration.

Related products

The products related to ABB CS513 3BSE000435R1 IEEE 802.3 LAN module include:

S800 I/O motherboard:used for installing CS513 modules and other S800 I/O modules.

S800 I/O CPU modules,such as PM864A,are used to control and manage S800 I/O systems.

Other S800 I/O modules:including analog input/output modules,digital input/output modules,counter modules,etc.,used to connect various field devices.

ABB Control Builder M software:used for configuring and programming S800 I/O systems,including network parameters for the CS513 module.

Various Ethernet switches and routers:used to build industrial Ethernet networks,connect CS513 modules and other network devices.

CS513 3BSE000435R1 ABB

Installation and maintenance

Preparation before installation:Before installing the ABB CS513 3BSE000435R1 IEEE 802.3 LAN module,please carefully read the relevant installation manual and safety guidelines.Ensure that the S800 I/O backplane is correctly installed and powered.Check if the installation environment meets the technical specifications of the module,such as temperature and humidity.Prepare the required Ethernet cables and ensure that network devices(such as switches,routers)are properly configured and functioning properly.Before installing the CS513 module,be sure to disconnect the power supply of the S800 I/O system.Carefully insert the CS513 module into the designated slot on the S800 I/O motherboard and ensure a secure connection.Connect the Ethernet cable to the RJ45 interface of the CS513 module.

Maintenance suggestion:To ensure the long-term stable operation of ABB CS513 3BSE000435R1 IEEE 802.3 LAN module,it is recommended to perform regular maintenance.Regularly check the connectors of the module for looseness or corrosion,and ensure reliable Ethernet cable connections.Keep the surrounding environment of the module clean and avoid the accumulation of dust and debris.Regularly check the operation status of network equipment to ensure normal network communication.ABB’s engineering tools can be used to check the network configuration of the CS513 module to ensure that the parameter settings are correct.If communication failure or other abnormalities are found in the CS513 module,the network connection,IP address settings,etc.should be checked in a timely manner,and relevant documents should be referred to for troubleshooting.If necessary,contact ABB’s technical support department for assistance.Following the maintenance guidelines and recommendations provided by ABB can maximize the service life of the CS513 module and ensure reliable communication of the S800 I/O system.

Product Guarantee

ABB provides comprehensive quality assurance for its CS513 3BSE000435R1 IEEE 802.3 LAN module.This product undergoes strict quality control and testing to ensure its performance and reliability meet the highest industrial standards.
