Description

The ABB PM510V16 3BSE008358R1 processor module is the core control unit of the ABB Freelance distributed control system(DCS).As a leading global supplier of industrial automation solutions,ABB’s Freelance system is renowned for its ease of use,reliability,and powerful functionality.The PM510V16 processor module integrates high-performance central processing units,memory,and communication interfaces,responsible for executing control logic,managing I/O modules,processing process data,and communicating with other Freelance system components.The PM510V16 module is the”brain”of the Freelance control system,which determines the system’s control performance and response speed.With its powerful processing capabilities and reliable design,PM510V16 can meet the needs of various industrial automation applications,from small-scale process control to complex factory automation.This module plays a crucial role in the Freelance system and is a key component for achieving efficient,stable,and reliable process control.

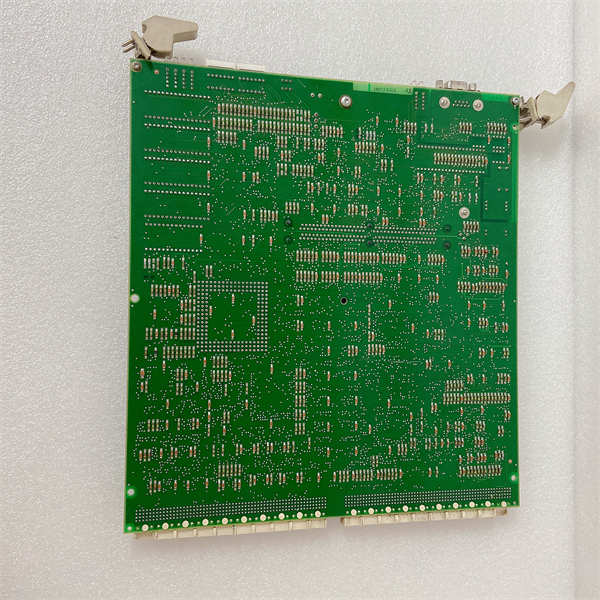

PM510V16 3BSE008358R1 ABB

technical specifications

Product model:PM510V16 3BSE008358R1

manufacturer:ABB

Product Type:Processor Module(CPU)

Applicable system:ABB Freelance DCS

programming language IEC 61131-3(LD,FBD,SFC,ST,IL)

Program memory:16 MB

Data memory:4 MB

Communication interface:2 x Ethernet(for control network and IT network),1 x RS-232

Scanning cycle:Typical 10 ms(depending on application complexity)

Power input:24 VDC(typical)

Power consumption:maximum 10 W

Working temperature:-20°C to+70°C

Storage temperature:-40°C to+85°C

Relative humidity:5%to 95%(without condensation)

Size:Standard Freelance module size

Weight:Approximately 0.3 kg

Main features and advantages

The ABB PM510V16 3BSE008358R1 processor module is the core of Freelance DCS and has the following significant features and advantages:

High performance processor:The PM510V16 module is equipped with a powerful central processing unit that can quickly and efficiently execute complex control algorithms and logic.

Adequate memory resources:With 16 MB of program memory and 4 MB of data memory,PM510V16 can support large-scale control applications and store large amounts of process data.

Flexible network communication:This module provides two independent Ethernet interfaces,one for connecting to the Freelance control network and enabling communication with other control units and I/O modules;Another one can be connected to the IT network for convenient data exchange and remote access.In addition,an RS-232 serial interface is provided for communication with other devices.

Supporting IEC 61131-3 standard programming:PM510V16 supports all five IEC 61131-3 standard programming languages(ladder diagram LD,function block diagram FBD,sequential function diagram SFC,structured text ST,and instruction list IL),making it convenient for engineers to choose the most suitable programming method according to application requirements.

Reliable industrial grade design:As a product of ABB Freelance series,PM510V16 module has a sturdy and durable industrial grade design,which can operate stably and reliably in harsh industrial environments.

Easy to configure and maintain in engineering:PM510V16 can be conveniently configured,programmed,and diagnosed through ABB Freelance Engineering Suite software,simplifying engineering and maintenance work.

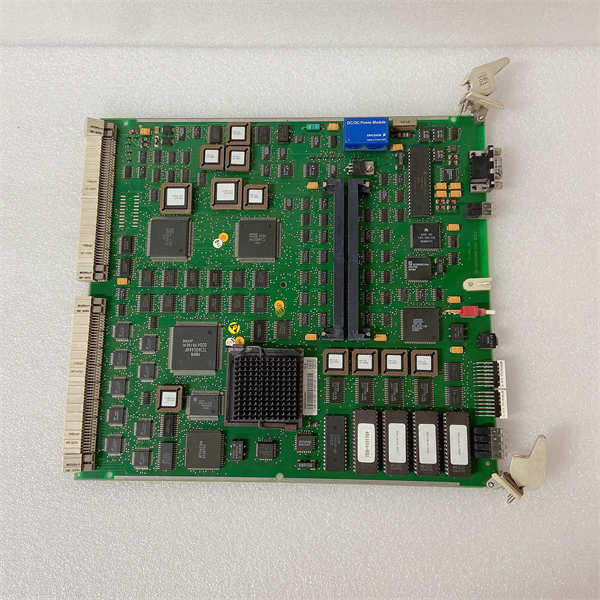

PM510V16 3BSE008358R1 ABB

application area

The ABB PM510V16 3BSE008358R1 processor module is the core control unit of ABB Freelance DCS,widely used in various industrial automation fields.Its typical application areas include:

Process industry:various process control applications in industries such as chemical,pharmaceutical,food and beverage,papermaking,water treatment,etc.

Discrete automation:such as automated control of material conveying,packaging machinery,small production lines,etc.

Energy management:monitoring and control of energy systems such as small power plants and district heating.

Infrastructure:such as tunnel monitoring,pump station control,etc.

The PM510V16 module provides powerful control capabilities for industrial automation applications of various scales due to its high performance,reliability,and ease of use.

Related products

The products related to ABB PM510V16 3BSE008358R1 processor module include:

Freelance Engineering Suite：Engineering software used for configuring,programming,and diagnosing Freelance control systems.

S800 I/O module:Various input/output modules used in the Freelance system that communicate with PM510V16 via fieldbus.

Communication Modules for Freelance：For example,communication modules used to connect other fieldbuses such as PROFIBUS and HART.

Operator Stations for Freelance：HMI software and hardware used for operator monitoring and process control.

Power Supply Modules for Freelance：Provide stable and reliable power supply for the Freelance system.

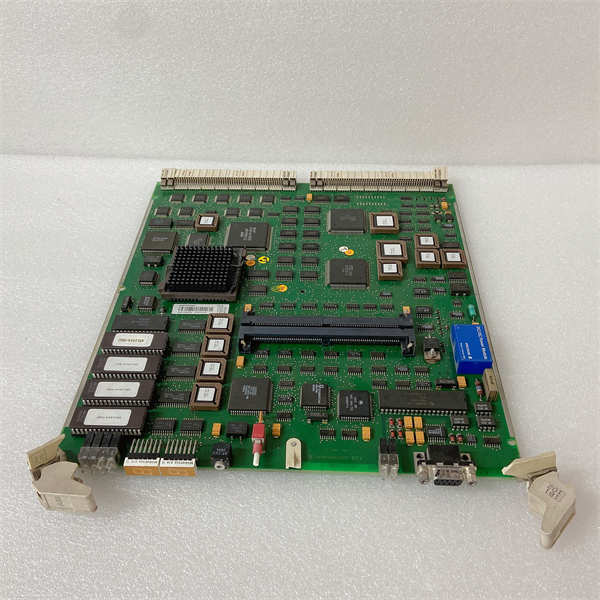

PM510V16 3BSE008358R1 ABB

Installation and maintenance

Preparation before installation:Before installing the ABB PM510V16 3BSE008358R1 processor module,please carefully read the relevant installation manual and safety guide.Ensure that the Freelance control system motherboard is correctly installed and powered.Check if the installation environment meets the technical specifications of the module,such as temperature and humidity.Prepare the required Ethernet cables and serial cables.Ensure that the engineering workstation has installed the Freelance Engineering Suite software and is able to connect to the Freelance control network.Before installing the PM510V16 module,please make sure to disconnect the power supply of the Freelance system.Carefully insert the PM510V16 module into the designated slot on the Freelance system motherboard and ensure a secure connection.Connect the Ethernet cable to the control network interface and IT network interface(if necessary).If serial communication is required,connect the corresponding RS-232 cable.

Maintenance suggestion:To ensure the long-term stable operation of the ABB PM510V16 3BSE008358R1 processor module,it is recommended to perform regular maintenance.Regularly check the connectors of the module for looseness or corrosion,and ensure that all cable connections are reliable.Keep the surrounding environment of the module clean and avoid the accumulation of dust and debris.Regularly check whether the power supply of the Freelance system is stable.Monitor the running status of PM510V16 using Freelance Engineering Suite software,check CPU load,memory usage,and communication status.Regularly backup control programs and system configurations.If any abnormalities or malfunctions are found in the PM510V16 module,relevant documents should be consulted in a timely manner for troubleshooting,or ABB’s technical support department should be contacted for assistance.Following the maintenance guidelines and recommendations provided by ABB can maximize the service life of the PM510V16 module and ensure the reliable operation of the Freelance control system.

Product Guarantee

ABB provides comprehensive quality assurance for its PM510V16 3BSE008358R1 processor module.This product undergoes strict quality control and testing to ensure its performance and reliability meet the highest industrial standards.
