Description

The ABB CI570 3BSE001440R1 main fieldbus controller is a high-performance PROFIBUS DP master module and an important component of the ABB Advant OCS control system.As a key component of fieldbus management,ABB CI570 3BSE001440R1 is responsible for processing and coordinating data exchange and communication between field devices and control systems in industrial automation systems.This ABB CI570 3BSE001440R1 master fieldbus controller can efficiently manage multiple slave devices on a PROFIBUS DP network,achieving real-time monitoring and control of various field instruments,drives,I/O devices,etc.Through ABB CI570,the control system can quickly and reliably obtain process data and send control instructions to on-site equipment,ensuring precise control and optimized operation of industrial processes.With its powerful communication capabilities and close integration with ABB control systems,ABB CI570 3BSE001440R1 is a key element in building stable and efficient automation systems,especially suitable for application scenarios that require high-performance fieldbus communication.

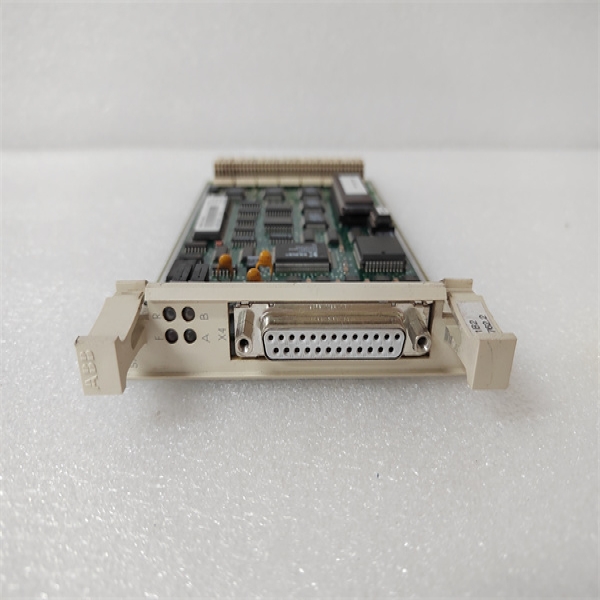

CI570 3BSE001440R1 ABB

technical specifications

Product model:CI570 3BSE001440R1

manufacturer:ABB

Product Type:PROFIBUS DP Master Station Module

Support agreement:PROFIBUS DP

Communication rate:9.6 kbit/s to 12 Mbit/s

Number of DP Slave Stations:Maximum Connectable

Interface type:9-pin D-sub socket,compliant with EIA RS-485 standard

Power supply voltage:24 VDC(-15%to+20%)

Working temperature:0 to+55°C

Storage temperature:-40 to+70°C

Installation method:DIN rail installation

Weight:Approximately 0.8 kg

Main features and advantages

High performance PROFIBUS DP master station function:ABB CI570 3BSE001440R1 master fieldbus controller has powerful PROFIBUS DP master station function,which can efficiently manage and control multiple slave devices on the PROFIBUS DP network,ensuring real-time and reliable data exchange.

High speed data communication:ABB CI570 supports PROFIBUS DP communication rates of up to 12 Mbit/s,meeting the demand for high-speed data transmission in industrial automation applications,achieving fast response and precise control of on-site equipment.

Seamless integration with ABB control system:As part of the ABB Advant OCS control system,ABB CI570 3BSE001440R1 can seamlessly integrate with ABB’s other control modules and software tools,simplifying system configuration and engineering development.

Robust and Reliable Industrial Design:ABB CI570 adopts a robust industrial grade design,which can adapt to various harsh industrial environments and ensure stable and reliable operation even under harsh conditions.

Comprehensive diagnostic function:ABB CI570 3BSE001440R1 provides comprehensive diagnostic information,facilitating users to monitor the operation status of PROFIBUS DP network,quickly locate and troubleshoot communication faults,and improve system maintainability.

Flexible configuration options:ABB CI570 can be flexibly configured through ABB’s engineering software to adapt to different PROFIBUS DP network topologies and device requirements.

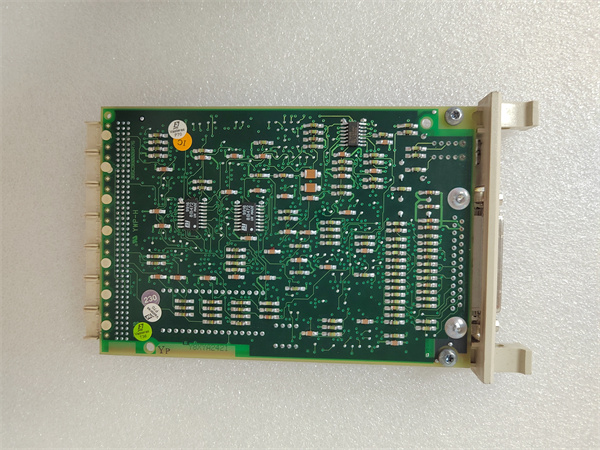

CI570 3BSE001440R1 ABB

application area

The ABB CI570 3BSE001440R1 main fieldbus controller is widely used in various industrial automation fields,especially in situations that require high-performance PROFIBUS DP communication:

Process industry:such as chemical,oil and gas,pharmaceutical and other industries,used to connect and control PROFIBUS DP field instruments,valve positioners,analyzers,etc.

Factory automation:for industries such as automotive manufacturing,food and beverage,packaging,etc.,used to connect and control PLCs,drivers,I/O modules,robots,etc.with PROFIBUS DP interfaces.

Power industry:motor protection devices,frequency converters,intelligent switches,etc.used for connecting and controlling PROFIBUS DP interfaces.

Water treatment industry:sensors,actuators,pumps,and valves used to connect and control PROFIBUS DP interfaces.

Related products

ABB CI571 PROFIBUS DP/FMS communication interface:Similar to ABB CI570,but may support different PROFIBUS protocol variants or provide additional functionality.

ABB CM572-DP PROFIBUS DP master communication module:The PROFIBUS DP master module of ABB AC500 series PLC has similar functions to ABB CI570,but is suitable for different control platforms.

ABB S800 I/O module:ABB’s distributed I/O system,which can communicate with ABB CI570 through PROFIBUS DP.

PROFIBUS DP slave devices:various on-site devices that comply with the PROFIBUS DP standard,such as ABB flow meters,pressure transmitters,motor drivers,etc.

ABB Automation Builder：Used for configuring and programming ABB control systems,including PROFIBUS DP network configuration for ABB CI570.

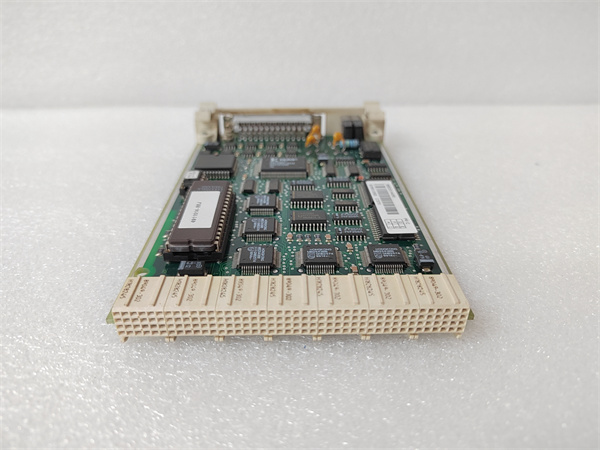

CI570 3BSE001440R1 ABB

Preparation before installation:Before installing the ABB CI570 3BSE001440R1 main fieldbus controller,please be sure to refer to the relevant ABB product manual and PROFIBUS DP installation guide.Ensure that the installation environment meets the working temperature,humidity,and electromagnetic compatibility requirements of ABB CI570.Check if the appearance of the module is intact and if the connectors are clean.Prepare cables and connectors that comply with the PROFIBUS DP standard and route them according to the wiring specifications of PROFIBUS DP.Install ABB CI570 firmly onto the DIN rail.

Maintenance suggestion:The daily maintenance of ABB CI570 3BSE001440R1 main fieldbus controller is relatively simple.It is recommended to regularly check whether the connection of the PROFIBUS DP network cable is secure to prevent loosening or damage.Keep the surrounding environment of the module clean and avoid dust accumulation that affects heat dissipation.PROFIBUS DP analyzer can be used to regularly detect network signal quality and device status.Any repair or replacement operation of ABB CI570 should be carried out by professionally trained personnel and follow ABB’s maintenance guidelines.

Product Guarantee

ABB provides standard industrial product quality assurance for its CI570 3BSE001440R1 main fieldbus controller.This product undergoes strict quality control and testing during the design and manufacturing process to ensure its reliability and long-term stable operation in various industrial environments.
