Description

WESTINGHOUSE 1C31194G03 is clearly identified as the Valve Positioner Module of the Emerson Ovation system.As a key component used for precise control of pneumatic valves in Ovation DCS,WESTINGHOUSE 1C31194G03 receives control signals from the Ovation controller and converts them into output signals required to drive pneumatic actuators,thereby achieving precise positioning of valve opening.WESTINGHOUSE 1C31194G03 plays a crucial role in industrial automation systems,especially in situations that require precise flow control and pressure regulation.WESTINGHOUSE 1C31194G03 helps improve the accuracy,stability,and efficiency of process control by ensuring that valves can accurately respond to instructions from the control system,and is a key link in ensuring optimized operation of industrial production processes.

The WESTINGHOUSE 1C31194G03 valve positioner module typically adopts an intelligent design,which can receive standard electrical control signals(such as 4-20mA current or 1-5V voltage)and output corresponding pneumatic signals(such as 20-100kPa standard air pressure signal)to drive the pneumatic actuator.WESTINGHOUSE 1C31194G03 often has high-precision positioning capability and fast response speed,which can adapt to rapidly changing control requirements.In addition,WESTINGHOUSE 1C31194G03 may also integrate self diagnostic functions,which can monitor its own working status and valve operation,and issue alarm signals when abnormalities occur,facilitating users to troubleshoot and maintain,thereby improving the reliability and availability of the entire control system.

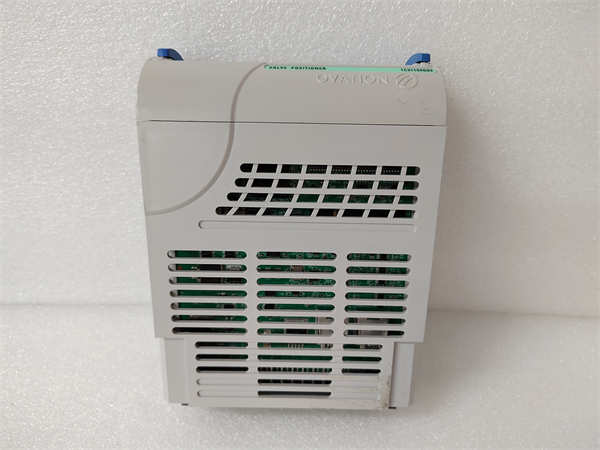

1C31194G03 WESTINGHOUSE

technical specifications

Product model:1C31194G03

Manufacturer:WESTINGHOUSE(now Emerson Ovation)

Product type:Valve Positioner Module

Input signal type:4-20 mA current or 1-5 V voltage(standard electrical signal)

Output signal type:20-100 kPa(standard pressure signal)

Gas source pressure:30-150 psi(2.1-10.3 bar)

Accuracy:up to 0.5%(estimated)

Response time:Fast response

Supply voltage:24 V DC or 120 V AC

Working temperature:-40°C to 80°C(-40°F to 176°F)(speculated)

Protection level:NEMA 4,IP66(estimated)

Weight:0.75 kg(estimated)

Installation method:Suitable for various standard pneumatic actuators

Main features and advantages

The WESTINGHOUSE 1C31194G03 valve positioner module,as an important component of Emerson Ovation DCS,has the following significant features and advantages:

High precision valve positioning:WESTINGHOUSE 1C31194G03 can achieve high-precision control of pneumatic valves,ensuring accurate correspondence between valve opening and control signals,thereby optimizing process control performance and improving product quality.

Quick response capability:WESTINGHOUSE 1C31194G03 has a fast response speed,which can adjust valve opening in a timely manner according to changes in control signals,adapt to rapidly changing process requirements,and improve the dynamic performance of the control system.

Wide compatibility:WESTINGHOUSE 1C31194G03 is compatible with various standard pneumatic valves and actuators,including products from mainstream brands such as Emerson,Fisher,and Keystone,with good versatility and adaptability.

Durable and sturdy design:WESTINGHOUSE 1C31194G03 adopts a sturdy and weatherproof shell design,with a protection level usually reaching NEMA 4 or IP66,which can reliably operate in harsh industrial environments and ensure long-term stable performance.

Seamless integration with Ovation system:As a dedicated module of Emerson Ovation DCS,WESTINGHOUSE 1C31194G03 can seamlessly integrate with Ovation controllers,simplifying system configuration and maintenance work and improving overall system efficiency.

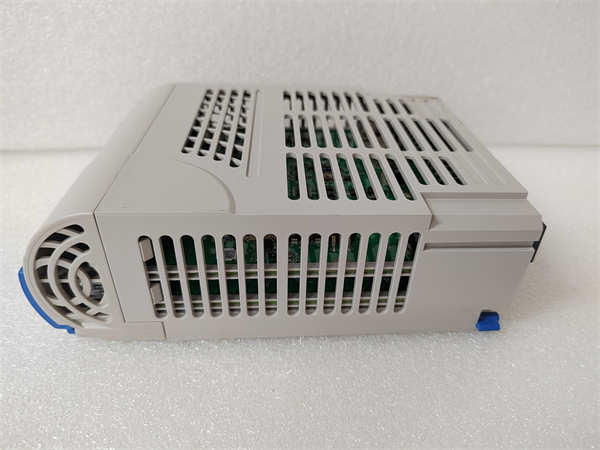

1C31194G03 WESTINGHOUSE

application area

The WESTINGHOUSE 1C31194G03 valve positioner module,with its high precision and reliability,is widely used in various industrial fields that require precise control of pneumatic valves,especially in systems using Emerson Ovation DCS:

Process control:widely used in industries such as chemical,pharmaceutical,food and beverage for fluid and gas flow control,achieving precise regulation of production processes.

Oil and gas production:applied in flow control,pressure regulation,and other aspects of the oil and gas production process to ensure safe and efficient operation of the production process.

Power industry:used to control various regulating valves in power plants,such as feedwater regulating valves,steam bypass valves,etc.,to optimize the operation of boilers and turbines.

Water/wastewater treatment:Used as flow control valves and liquid level regulating valves in water plants and sewage treatment plants to achieve precise control of the water treatment process.

Related products

The products related to the WESTINGHOUSE 1C31194G03 valve positioner module include:

Westinghouse/Emerson Ovation Controller(OC4000,OC1420,etc.):The core control unit of Ovation DCS sends control signals to WESTINGHOUSE 1C31194G03.

Westinghouse/Emerson Analog Output Module(e.g.1C31132Gxx):Used to convert the digital signal of the controller into the analog input signal required by WESTINGHOUSE 1C31194G03.

Various pneumatic control valves and actuators(such as Fisher,Keystone brand):used in conjunction with WESTINGHOUSE 1C31194G03 to achieve precise fluid control.

Emerson AMS Device Manager：Used for configuring,calibrating,and diagnosing intelligent valve positioners that communicate with WESTINGHOUSE 1C31194G03 via HART or other protocols.

Air source processing components(such as air filters,pressure reducing valves,oil mist generators):provide a clean and stable air source for WESTINGHOUSE 1C31194G03 and pneumatic actuators.

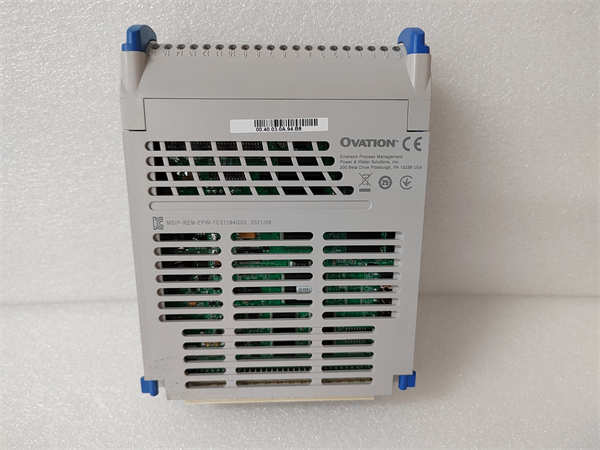

1C31194G03 WESTINGHOUSE

Installation and maintenance

Preparation before installation:Before installing the WESTINGHOUSE 1C31194G03 valve positioner module,please refer to the relevant Emerson Ovation system and valve positioner installation manual.Check if the appearance of the WESTINGHOUSE 1C31194G03 module is intact,and confirm that the required installation tools,air pipe connectors,and electrical wiring terminals are fully prepared.Select the appropriate installation bracket and connection method based on the system design and valve actuator interface.Ensure that the gas source is clean,dry,and has stable pressure,and meets the gas source pressure requirements of WESTINGHOUSE 1C31194G03.Connect the control signal line and power line correctly according to the wiring diagram(if necessary).Install WESTINGHOUSE 1C31194G03 firmly onto the valve actuator and connect the air source and output air pipe.

Maintenance suggestion:To ensure the long-term stable operation of the WESTINGHOUSE 1C31194G03 valve positioner module,it is recommended to perform regular maintenance.Regularly check the cleanliness and pressure stability of the gas source,and eliminate moisture and impurities in the gas path.Check if there is any leakage at the tracheal joint to ensure the sealing of the air circuit.Regularly check the electrical wiring connections for firmness,looseness,or corrosion.Regularly calibrate and diagnose WESTINGHOUSE 1C31194G03 using Emerson AMS Device Manager or other suitable tools to ensure its positioning accuracy and response speed.Regularly check the operation of the valve stem and actuator for smoothness,any jamming or abnormal wear.
