Description

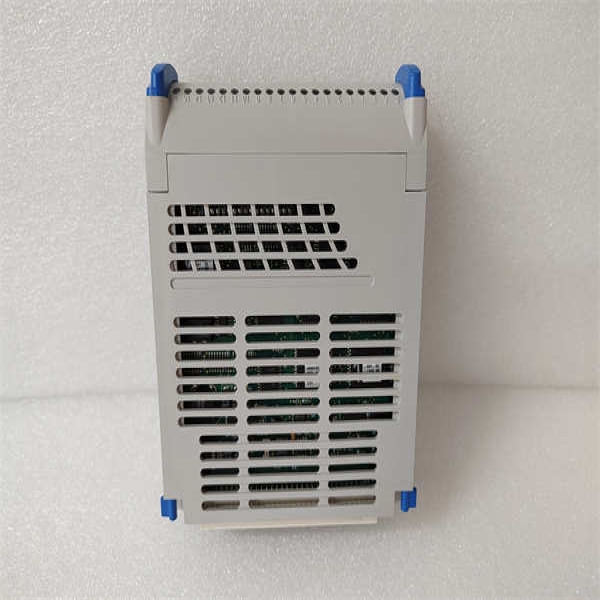

WESTINGHOUSE 1C31224G01 is a high-density analog input module designed for Westinghouse Ovation distributed control system(DCS).As an important signal acquisition component of Ovation system,WESTINGHOUSE 1C31224G01 provides 8 independent analog input channels,which can efficiently receive signals from various analog sensors and transmitters on site,such as temperature,pressure,flow rate,and liquid level.WESTINGHOUSE 1C31224G01 plays a crucial role in automation systems,converting continuous process variables from the physical world into digital signals that can be processed by Ovation controllers,providing a critical data foundation for real-time monitoring,data analysis,and implementation of advanced control strategies.With its high channel density and reliable performance,WESTINGHOUSE 1C31224G01 is an ideal choice for building an economically efficient and powerful Ovation automation system.

The WESTINGHOUSE 1C31224G01 analog input module typically supports multiple standard industrial analog signal types,such as 4-20mA current signals and various voltage signal ranges(e.g.0-5V,0-10V,+/-5V,+/-10V),which can be flexibly configured through software to adapt to the output characteristics of different types of field instruments.WESTINGHOUSE 1C31224G01 integrates high-precision analog-to-digital converters(ADCs)and signal conditioning circuits internally,ensuring accurate conversion and stable transmission of input signals,thereby improving the measurement accuracy and reliability of the entire control system.In addition,WESTINGHOUSE 1C31224G01 may also have channel isolation and fault diagnosis functions,which can enhance the system’s anti-interference ability and issue timely instructions in case of signal abnormalities or module failures,facilitating maintenance personnel to troubleshoot and improve system availability.

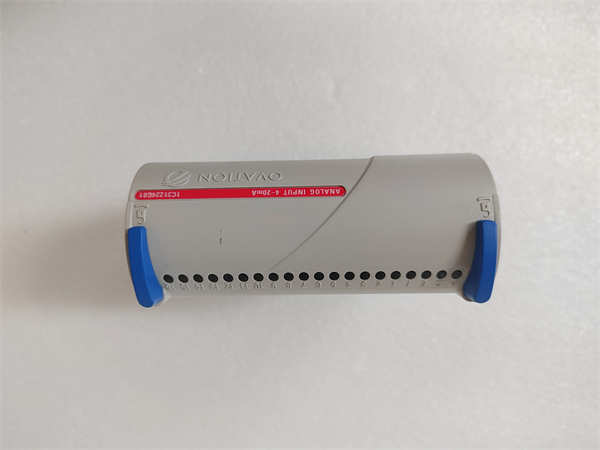

1C31224G01 WESTINGHOUSE

technical specifications

Product model:1C31224G01

Manufacturer:WESTINGHOUSE(now Emerson Ovation)

Product Type:8-Channel Analog Input Module

Number of input channels:8 independent channels

Input signal type:4-20 mA,0-5 V,0-10 V,+/-5 V,+/-10 V(software configurable)

Input impedance:>1 MΩ(voltage input),250Ω(current input)(estimated)

Resolution:16 bits(estimated)

Accuracy:±0.1%FSR(full-scale)(estimated)

Sampling rate:Each channel samples independently(the specific rate depends on the system configuration)

Channel isolation:supports inter channel isolation(presumably)

Power supply voltage:Powered through the Ovation system backplane(specific voltage depends on the backplane)

Working temperature;0°C to 60°C(speculated)

Installation method:Emerson Ovation system backplane plug-in installation

Main features and advantages

The WESTINGHOUSE 1C31224G01 8-channel analog input module brings significant features and advantages to Emerson Ovation DCS:

High channel density:WESTINGHOUSE 1C31224G01 provides 8 independent analog input channels on a single module,effectively increasing the system’s I/O density,reducing the cost of each I/O point and the required cabinet space.

Flexible signal configuration:WESTINGHOUSE 1C31224G01 supports multiple commonly used industrial analog input signal types,which can be flexibly configured through software,making it convenient for users to choose according to different on-site instrument requirements,improving the system’s versatility and adaptability.

High precision data acquisition:WESTINGHOUSE 1C31224G01 uses high-resolution analog-to-digital converters and advanced signal conditioning technology to achieve high-precision acquisition of on-site analog signals,providing accurate and reliable process data for control systems.

Channel isolation protection:WESTINGHOUSE 1C31224G01 may have inter channel isolation function,effectively preventing mutual interference between different channels and between channels and other parts of the system,improving the system’s noise resistance and reliability.

Seamless integration with Ovation system:As a module designed specifically for Ovation DCS,WESTINGHOUSE 1C31224G01 can achieve efficient and reliable data communication with Ovation controllers and other I/O modules,simplifying system integration and maintenance work.

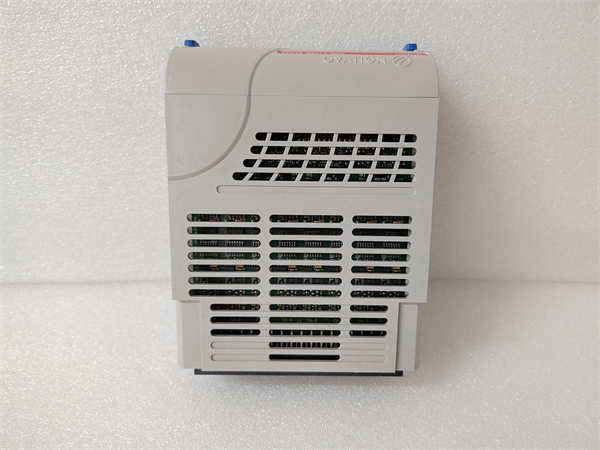

1C31224G01 WESTINGHOUSE

application area

The WESTINGHOUSE 1C31224G01 8-channel analog input module,with its high channel density and reliable performance,is widely used in various industrial automation fields that require multi-point analog signal acquisition,especially in systems using Emerson Ovation DCS:

Power industry:Collecting a large number of process parameters such as temperature,pressure,flow rate,and liquid level from power plants for boiler control,turbine control,and auxiliary equipment monitoring.

Water/wastewater treatment industry:used to monitor the analog output signals of various sensors(such as pH value,dissolved oxygen,turbidity,etc.)in water plants and sewage treatment plants.

Petrochemical industry:Collect key process parameters such as temperature,pressure,flow rate,and liquid level in refining and chemical production processes to provide data support for process control and optimization.

In other industrial fields such as papermaking,metallurgy,food and beverage industries,where multiple analog signals need to be collected in automation systems,WESTINGHOUSE 1C31224G01 can play an important role.

Related products

The products related to the WESTINGHOUSE 1C31224G01 8-channel analog input module include:

Westinghouse/Emerson 1C31194Gxx series analog input module:may have different channel numbers or electrical characteristics to meet different application requirements.

Westinghouse/Emerson 1C31132GXx series analog output module:used to convert the digital signal of the controller into an analog signal and output it to the on-site actuator.

Westinghouse/Emerson 1C31188Gxx series digital input module:used to collect switch status signals on site.

Westinghouse/Emerson 1C31191Gxx series digital output module:used to control switch devices on site,such as solenoid valves,relays,etc.

Emerson Ovation Controller(OC4000,OC1420,etc.):The core processing unit of Ovation DCS,responsible for receiving and processing data from I/O modules such as WESTINGHOUSE 1C31224G01.

Emerson Ovation I/O Cabinet and Backplane:Provides a platform for installing and electrically connecting I/O modules such as WESTINGHOUSE 1C31224G01.

1C31224G01 WESTINGHOUSE

Installation and maintenance

Preparation before installation:Before installing the WESTINGHOUSE 1C31224G01 8-channel analog input module,please carefully read the relevant installation manual and safety regulations of the Emerson Ovation system to ensure that the installation environment meets electrical and mechanical requirements.Check if the appearance of the WESTINGHOUSE 1C31224G01 module is intact,and confirm that the required installation tools and wiring terminals are ready.Based on the system design and wiring diagram,determine the correct installation position and slot for WESTINGHOUSE 1C31224G01 in the Ovation I/O cabinet,and ensure that the backplane connectors are clean and undamaged.Before making any electrical connections,be sure to disconnect the system power supply and ensure that the relevant equipment is reliably grounded.Accurately connect the signal wires of the on-site analog instrument to the wiring terminals of the WESTINGHOUSE 1C31224G01 module according to the wiring diagram,and conduct necessary checks to ensure correct wiring.

Maintenance suggestion:In order to ensure the long-term stable operation of the WESTINGHOUSE 1C31224G01 8-channel analog input module,it is recommended to perform regular maintenance.Regularly check whether the module is securely connected to the Ovation system backplane to ensure the reliability of signal transmission and power supply.Keep the interior of the I/O cabinet clean to avoid the accumulation of dust and pollutants that may affect the module’s heat dissipation performance.Regularly check whether the wiring of the on-site analog instruments is in good condition,whether there is any looseness,corrosion or aging phenomenon.It is recommended to regularly use the diagnostic tools provided by Emerson to perform functional testing and calibration on the WESTINGHOUSE 1C31224G01 module to ensure the accuracy and reliability of its data acquisition.If the Ovation system reports a malfunction in the WESTINGHOUSE 1C31224G01 module,it is necessary to promptly consult the system diagnostic information and troubleshoot or replace the module according to Emerson’s maintenance manual.
