Description

WESTINGHOUSE 1C31227G01 is a high-performance analog input module for Emerson Ovation distributed control system(DCS).As an important signal acquisition unit of Ovation system,WESTINGHOUSE 1C31227G01 provides 8 independent analog input channels,dedicated to receiving signals from various analog sensors and transmitters on site,such as temperature,pressure,flow rate,and liquid level.WESTINGHOUSE 1C31227G01 plays a crucial role in automation systems by converting critical process variables into high-precision digital signals,providing real-time and reliable data for Ovation controllers to support real-time monitoring,advanced control algorithms,and data analysis of the system.With its high precision,high reliability,and 8-channel high-density design,WESTINGHOUSE 1C31227G01 is an ideal choice for building high-performance Ovation automation systems,especially for applications that require processing large amounts of analog input signals.

The WESTINGHOUSE 1C31227G01 analog input module adopts advanced analog-to-digital conversion technology,and each channel has a resolution of 14 bits,which can provide very fine signal conversion,ensuring the accuracy and reliability of data.WESTINGHOUSE 1C31227G01 supports multiple standard industrial analog signal types,including 4-20mA current signals and various voltage signal ranges,and is usually flexibly configured through software to adapt to the output characteristics of different types of field instruments.It integrates a comprehensive signal conditioning circuit internally,which can effectively filter out noise and interference,ensuring the stability and accuracy of the input signal.In addition,WESTINGHOUSE 1C31227G01,as the Personality Module of the Ovation system,can be used in conjunction with specific terminal boards to achieve flexible on-site wiring and signal connections,further enhancing the adaptability and usability of the system.

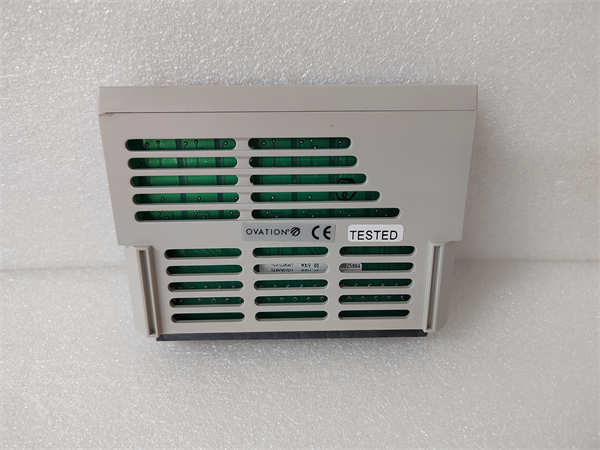

1C31227G01 WESTINGHOUSE

technical specifications

Product model:1C31227G01

Manufacturer:WESTINGHOUSE(now Emerson Ovation)

Product type:8-Channel Analog Input Module,14 bit

Number of input channels:8 independent channels

Input signal type:4-20 mA,0-5 V,1-5 V,0-10 V,+/-5 V,+/-10 V(software configurable)

Resolution:14 bits

Accuracy:±0.05%FSR(full-scale)(estimated)

Sampling rate:Each channel samples independently(the specific rate depends on the system configuration)

Input impedance:>1 MΩ(voltage input),250Ω(current input)(estimated)

Channel isolation:supports inter channel isolation(presumably)

Power supply voltage:Powered through the Ovation system backplane(specific voltage depends on the backplane)

Working temperature:-40°C to 70°C(estimated)

Installation method:Emerson Ovation system backplane plug-in installation,used in conjunction with Personality Module

Main features and advantages

The WESTINGHOUSE 1C31227G01 8-channel analog input module brings excellent performance and significant advantages to Emerson Ovation DCS:

High precision data acquisition:WESTINGHOUSE 1C31227G01 has a high resolution of 14 bits,which can achieve high-precision conversion of on-site analog signals,ensuring that the control system obtains accurate and reliable process data,thereby improving control quality and production efficiency.

High channel density:WESTINGHOUSE 1C31227G01 integrates 8 independent analog input channels on a single module,effectively improving the system’s I/O density,reducing the cost of each I/O point and the required cabinet space,and achieving a more economical and efficient system design.

Flexible signal configuration:WESTINGHOUSE 1C31227G01 supports multiple commonly used industrial analog input signal types,which can be flexibly configured through software,making it convenient for users to choose according to different on-site instrument requirements,improving the system’s versatility and adaptability.

Wide operating temperature range:WESTINGHOUSE 1C31227G01 can operate reliably within a wide temperature range of-40°C to 70°C,enabling it to adapt to various harsh industrial environments and ensuring system stability and reliability.

Seamless integration with Ovation system:As a Personality Module designed specifically for Ovation DCS,WESTINGHOUSE 1C31227G01 can achieve perfect integration with Ovation controllers and specific terminal boards,simplifying on-site wiring and system configuration,and improving the overall efficiency and usability of the system.

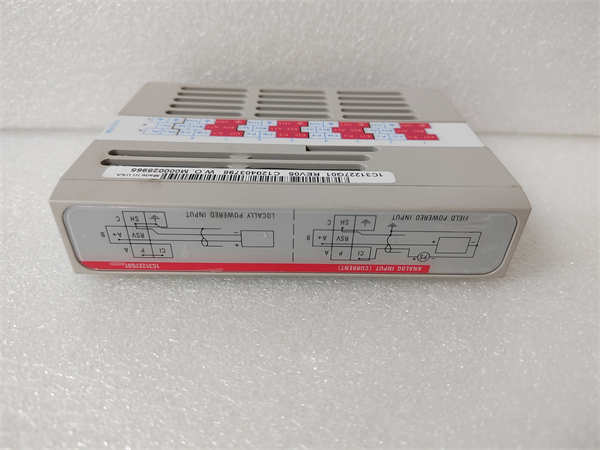

1C31227G01 WESTINGHOUSE

application area

The WESTINGHOUSE 1C31227G01 8-channel analog input module,with its high precision,high density,and wide temperature characteristics,is widely used in various industrial automation fields that require multi-point,high-precision analog signal acquisition,especially in systems using Emerson Ovation DCS:

Power industry:Accurately collect a large number of key process parameters such as temperature,pressure,flow rate,and liquid level in power plants for applications such as boiler control,turbine control,auxiliary equipment monitoring,and environmental monitoring.

Petrochemical industry:Accurately collecting key process parameters such as temperature,pressure,flow rate,liquid level,and composition analysis in high demand refining and chemical production processes,providing high-quality data foundation for advanced process control and optimization.

Water/wastewater treatment industry:Accurately monitor various key parameters in water plants and sewage treatment plants,such as pH value,dissolved oxygen,turbidity,flow rate,liquid level,etc.,to ensure the stable operation of the water treatment process and meet water quality standards.

In other industrial fields such as metallurgy,papermaking,food and beverage,which require high precision and stability of process parameters,WESTINGHOUSE 1C31227G01 can provide reliable analog input solutions.

Related products

The products related to the WESTINGHOUSE 1C31227G01 8-channel analog input module include:

Westinghouse/Emerson 1C31224G01 8-channel analog input module:may have different resolutions or electrical characteristics to accommodate different application requirements.

Westinghouse/Emerson Analog Output Module(e.g.1C31132Gxx):Used to convert the digital signal of the controller into an analog signal and output it to the on-site actuator.

Westinghouse/Emerson digital input module(e.g.1C31188Gxx):used to collect switch status signals on site.

Westinghouse/Emerson digital output module(e.g.1C31191Gxx):used to control on-site switch devices such as solenoid valves,relays,etc.

Emerson Ovation Controller(OC4000,OC1420,etc.):The core processing unit of Ovation DCS,responsible for receiving and processing high-precision data from I/O modules such as WESTINGHOUSE 1C31227G01.

Emerson Ovation I/O Terminal Board:Used in conjunction with WESTINGHOUSE 1C31227G01,it provides on-site wiring terminals and signal conditioning functions.

Emerson AMS Device Manager:Used for configuring,calibrating,and diagnosing intelligent field instruments connected to Ovation systems.

1C31227G01 WESTINGHOUSE

Installation and maintenance

Preparation before installation:Before installing the WESTINGHOUSE 1C31227G01 8-channel analog input module,please carefully read the relevant installation manual and safety regulations of the Emerson Ovation system,and refer to the installation guide for the Personality Module used in conjunction with 1C31227G01.Check if the appearance of the WESTINGHOUSE 1C31227G01 module and Personality Module is intact,and confirm that the required installation tools and wiring terminals are ready.Based on the system design and wiring diagram,determine the correct installation position and slot for WESTINGHOUSE 1C31227G01 in the Ovation I/O cabinet,and correctly install the Personality Module onto the backplane.Before making any electrical connections,be sure to disconnect the system power supply and ensure that the relevant equipment is reliably grounded.Accurately connect the signal wires of the on-site analog instrument to the wiring terminals of the Personality Module according to the wiring diagram,and conduct necessary checks to ensure correct wiring.Insert the WESTINGHOUSE 1C31227G01 module into the corresponding Personality Module.

Maintenance suggestion:In order to ensure the long-term stable operation of the WESTINGHOUSE 1C31227G01 8-channel analog input module,it is recommended to perform regular maintenance.Regularly check the connection between the module on the Ovation system backplane and Personality Module to ensure the reliability of signal transmission and power supply.Keep the interior of the I/O cabinet clean to avoid the accumulation of dust and pollutants that may affect the module’s heat dissipation performance.Regularly check whether the wiring of the on-site analog instruments is in good condition,whether there is any looseness,corrosion or aging phenomenon.It is recommended to regularly use the diagnostic tools provided by Emerson to perform functional testing and calibration on the WESTINGHOUSE 1C31227G01 module to ensure the accuracy and reliability of its data acquisition.If the Ovation system reports a malfunction in the WESTINGHOUSE 1C31227G01 module,it is necessary to promptly consult the system diagnostic information and troubleshoot or replace the module according to Emerson’s maintenance manual.
