Description

TEWS TPMC871-10 is a high-performance PMC(PCI Mezzanine Card)interface module produced by TEWS Technologies GmbH(TEWS)in Germany.This module is designed to provide flexible and powerful fieldbus interface capabilities for various CompactPCI,VMEbus,or PCI bus carriers.The main feature of TEWS TPMC871-10 is its support for multiple industrial Ethernet protocols,such as PROFINET,EtherCAT,EtherNet/IP,SERCOS III,etc.These real-time Ethernet functions are seamlessly integrated into the main processing system through the PMC interface.TEWS TPMC871-10 is usually equipped with multiple Ethernet ports,which can achieve efficient data exchange and network communication,meeting the needs of real-time data transmission and device interconnection in industrial automation,testing and measurement,traffic control and other fields.As a member of the TEWS high-performance interface module series,TEWS TPMC871-10 provides a convenient and powerful fieldbus connection solution for system integrators and end-users with its reliability,flexibility,and extensive protocol support,greatly expanding the communication capabilities and application scope of the main system.

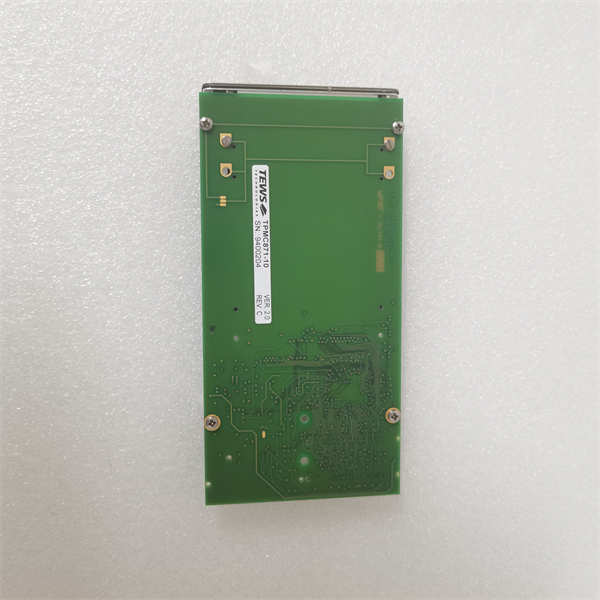

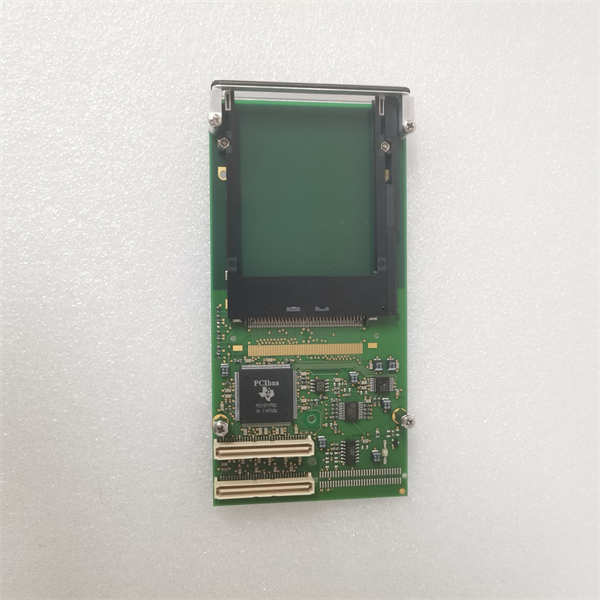

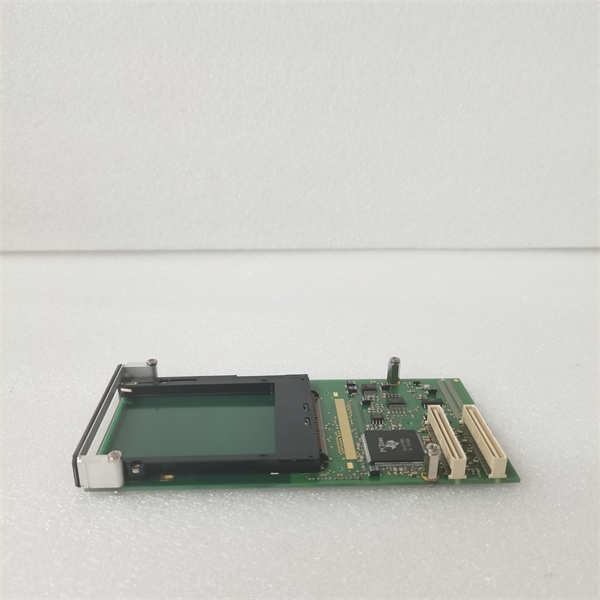

TPMC871-10 TEWS

technical specifications

Product model:TPMC871-10

Manufacturer:TEWS Technologies GmbH(TEWS)

Product Type:PMC Interface Module(Industrial Ethernet)

Interface standard:IEEE 1386 PMC(PCI Mezzanine Card)

Ethernet interface:2 x RJ45

Supported protocols:PROFINET,EtherCAT,EtherNet/IP,SERCOS III(configured through software)

Data transmission rate:10/100/1000 Mbit/s(adaptive)

PCI bus interface:32-bit,33/66 MHz

Supply voltage:+5V

Power consumption:The specific value depends on the selected protocol and workload

Working temperature:0°C to+60°C,-40°C to+85°C

Storage temperature:-25°C to+70°C,-40°C to+85°C

Size:74 mm x 149 mm(standard PMC size)

Main features and advantages

The core advantage of TEWS TPMC871-10 PMC interface module lies in its flexible support for multiple mainstream industrial Ethernet protocols.Through simple software configuration,the same TEWS TPMC871-10 module can adapt to different fieldbus standards such as PROFINET,EtherCAT,EtherNet/IP,SERCOS III,greatly reducing the complexity of hardware selection and providing high flexibility for system design.Its two Gigabit Ethernet ports can provide high bandwidth data transmission capabilities,meeting the needs of real-time control and large data exchange.

High performance PMC interface:TEWS TPMC871-10 adopts standard PMC interface,which can be easily installed on various compatible carrier boards,such as CompactPCI,VMEbus or PCI bus carrier boards,achieving seamless integration with existing systems.

Widely applicable fields:With its multi protocol support and high-performance characteristics,TEWS TPMC871-10 is suitable for various occasions that require real-time industrial Ethernet communication,such as automation control,motion control,data acquisition,and testing and measurement.

Industrial grade reliability:As a professional supplier of industrial interface modules,TEWS’s products usually have high reliability and durability,and TEWS TPMC871-10 is no exception,which can operate stably in industrial environments.

TPMC871-10 TEWS

application area

The TEWS TPMC871-10 PMC interface module is widely used in various fields that require industrial Ethernet communication due to its flexible protocol support and high performance.In the field of industrial automation,it can be used to connect devices such as PLCs,servo drives,I/O modules,etc.,and build real-time control networks based on PROFINET,EtherCAT,or EtherNet/IP.In the field of motion control,TEWS TPMC871-10 can support high-performance motion control protocols such as SERCOS III,achieving precise multi axis synchronous control.In the field of testing and measurement,this module can be used for high-speed data acquisition and instrument control.In addition,TEWS TPMC871-10 is also suitable for scenarios that require reliable industrial Ethernet communication,such as traffic control and energy management.Its multi protocol capability enables users to choose the most suitable industrial Ethernet standard based on specific application requirements.

Related products

The products related to TEWS TPMC871-10 include other PMC interface modules of TEWS,such as modules that support different fieldbus protocols(such as CAN,RS-485,etc.).TEWS also offers various CompactPCI,VMEbus,and PCI bus carriers for installing TPMC871-10 and other PMC modules.Related software development kits(SDKs)and drivers,making it convenient for users to use the TPMC871-10 module in different operating systems and development environments.In addition,industrial Ethernet switches,routers and other network equipment are also used in conjunction with TPMC871-10 to build a complete industrial Ethernet communication system.

Preparation before installation:Before installing the TEWS TPMC871-10 PMC interface module,please refer to the relevant product manual and the carrier board documentation used.Ensure that the carrier board is powered off and select the appropriate PMC slot.Check if the appearance of TEWS TPMC871-10 module is intact and if the connectors are clean.According to the system design,prepare the required Ethernet cables.During the installation process,please take anti-static measures to avoid damaging the module.Gently insert TEWS TPMC871-10 into the PMC slot and secure the screws.Connect the Ethernet cable to the corresponding RJ45 interface.After installation,the corresponding drivers and protocol stacks need to be installed.

Maintenance suggestion:To ensure the long-term stable operation of the TEWS TPMC871-10 PMC interface module,it is recommended to perform regular maintenance.Regularly check if the module is securely connected in the PMC slot.Keep the module and Ethernet interface clean to avoid dust and dirt affecting performance.Regularly check whether the Ethernet cable connection is reliable and whether there is any damage.It is recommended to conduct regular system checks and hardware diagnostics according to TEWS’s product maintenance manual to ensure optimal system performance and reliability.Pay attention to the operating temperature of the module and avoid operating in environments beyond the specification range.

TPMC871-10 TEWS

Product Guarantee

TEWS Technologies GmbH provides corresponding product guarantees for the TPMC871-10 PMC interface module.All products undergo strict quality inspection and performance testing to ensure compliance with relevant industrial standards and technical specifications.
